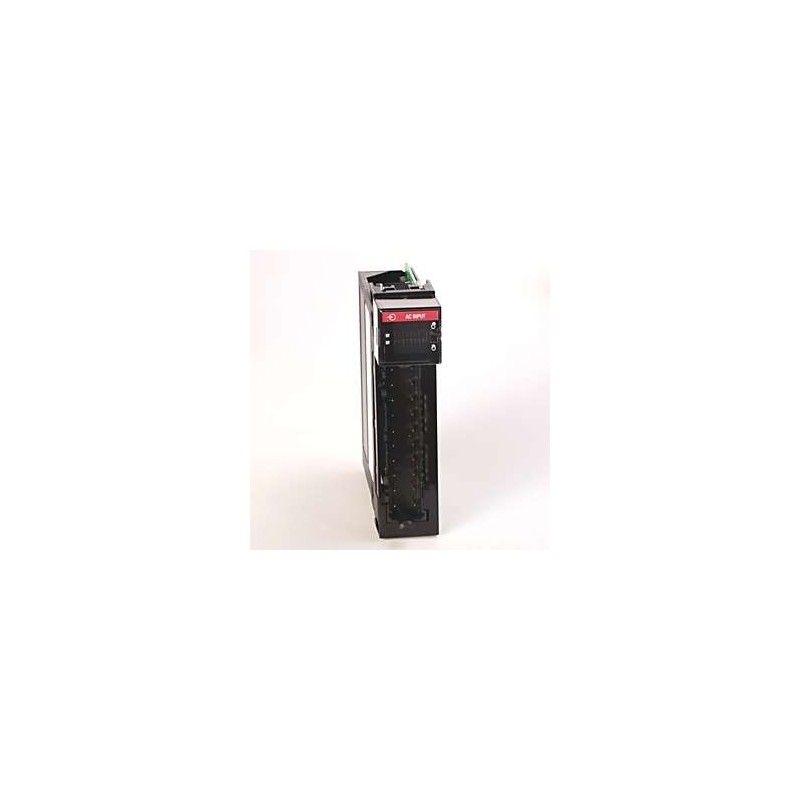

Allen-Bradley 1756-IH16ISOE Digital Input Module

Series#: AllenBradley

Product Details

1756-IH16ISOE – High-density 16-point isolated input module for Allen-Bradley ControlLogix systems.
Features 16 individually isolated digital inputs (24V DC) with high-speed response for precise monitoring.
Built-in isolation per channel eliminates ground loops and enhances system reliability in harsh industrial environments.
Hot-swappable design allows module replacement without powering down the chassis, minimizing downtime.
Compatible with 1756-series backplanes and standard ControlLogix I/O configurations.
Typical applications: machine control, safety monitoring, and discrete manufacturing processes.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Allen-Bradley 1756-IH16ISOE is a high-performance isolated input module engineered for demanding industrial automation within the ControlLogix platform. This module provides 16 individually isolated digital inputs, each rated for 24V DC operation, ensuring robust signal integrity even in electrically noisy environments. The isolated design per channel protects against ground loops and transient voltages, making it ideal for applications requiring high reliability, such as process control, packaging lines, and assembly systems. With its hot-swappable capability and seamless integration into 1756-series chassis, the 1756-IH16ISOE delivers flexibility and efficiency for both new installations and retrofit projects. Each unit is 100% original and new, sourced directly from the manufacturer, and available for expedited global shipping.

Parameter	Specification
Product Type	Isolated Digital Input Module
Model	1756-IH16ISOE
Input Channels	16 (individually isolated)
Input Voltage Rating	24V DC (nominal), 10-30V DC operating range
Input Current	8 mA per channel at 24V DC (typical)
Isolation Voltage	1500V AC (channel-to-backplane), 500V AC (channel-to-channel)
Input Delay	Off-to-On: 1 ms typical; On-to-Off: 1 ms typical
Power Dissipation	3.5 W (maximum)
Module Type	Standard ControlLogix I/O module
Backplane Current	75 mA at 5.1V DC; 50 mA at 24V DC
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Enclosure Type	Open-style (suitable for panel mount in IP20 environments)
Certifications	UL, CE, CSA, ATEX (for hazardous locations)
Weight	Approximately 0.5 kg (1.1 lbs)
Dimensions (H x W x D)	140 mm x 35 mm x 100 mm (5.5 in x 1.4 in x 3.9 in)
Wiring Style	Removable terminal block (18-14 AWG)
LED Indicators	1 green LED per channel (input status); 1 module status LED
Keying	Electronic keying (compatible with 1756 chassis)
Warranty	Standard 1-year manufacturer warranty
