Allen-Bradley 1756-IC16 DC Input Module

Series#: AllenBradley

Product Details

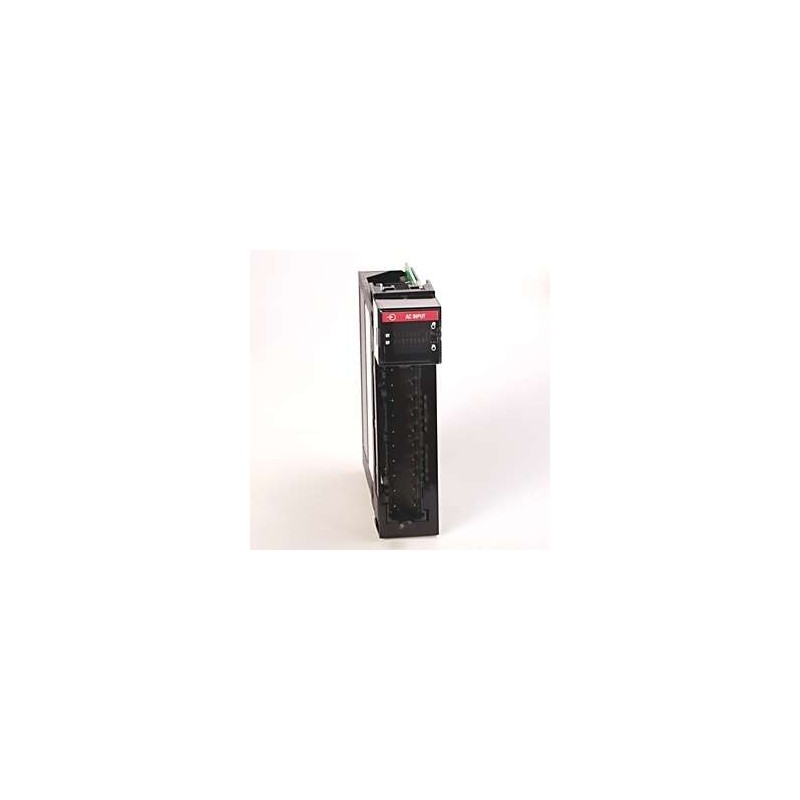

1756-IC16 Allen-Bradley ControlLogix Digital Input Module – 16-point, 24V DC sink/source input.
High-density 16-channel design reduces cabinet space and simplifies wiring in large-scale automation systems.
Supports both sink and source input configurations for maximum flexibility with diverse field devices.
Rugged industrial build with galvanic isolation per channel group, ensuring reliable operation in noisy environments.
Hot-swappable in ControlLogix chassis without system downtime, ideal for mission-critical applications.
Backed by Rockwell Automation’s proven reliability and long-term lifecycle support for seamless integration.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1756-IC16 is a high-performance 16-point digital input module designed for the ControlLogix platform, offering robust signal acquisition for 24V DC sensors, switches, and proximity devices. Engineered for demanding industrial environments, this module provides galvanic isolation between input groups and the backplane, ensuring accurate data capture even in electrically noisy settings. Its sink/source compatibility allows direct connection to both NPN and PNP output devices, streamlining system design. The 1756-IC16 supports hot-swapping in any ControlLogix chassis slot, enabling rapid maintenance without halting production. With a wide operating temperature range and compliance with global safety standards, it is an ideal choice for discrete manufacturing, process control, and infrastructure automation.

Parameter	Specification
Product Family	ControlLogix Digital I/O
Model Number	1756-IC16
Input Type	Digital (Discrete)
Number of Inputs	16
Input Voltage Rating	24V DC (10-30V DC operating range)
Input Current (Typical)	8 mA per point at 24V DC
Input Configuration	Sink (NPN) or Source (PNP) – field-selectable per module
Isolation Voltage	1500V AC between input groups and backplane; 500V AC between groups
Off-State Voltage (Max)	5V DC
Off-State Current (Max)	1.5 mA
On-State Voltage (Min)	10V DC
On-State Current (Min)	2 mA
Input Delay (Off to On)	1 ms typical (filter selectable via software)
Input Delay (On to Off)	1 ms typical (filter selectable via software)
Module Location	Any slot in 1756 ControlLogix chassis
Backplane Current (5V)	100 mA
Backplane Current (24V)	0 mA (module powered from backplane only)
Power Dissipation	3.0 W (max)
Thermal Dissipation	10.2 BTU/hr (max)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
Enclosure Type	Open (IP20) – suitable for cabinet installation
Wiring System	Removable terminal block (1756-TBCH or 1756-TBS6H)
LED Indicators	One green LED per channel (input status); one red LED (module fault)
Communication Protocol	ControlBus (backplane) – deterministic data transfer
Certifications	CE, cULus, ATEX (Zone 2), IECEx, TÜV (functional safety pending)
Weight	Approx. 0.34 kg (0.75 lb)
Dimensions (H x W x D)	144 mm x 35 mm x 130 mm (5.67 in x 1.38 in x 5.12 in)
