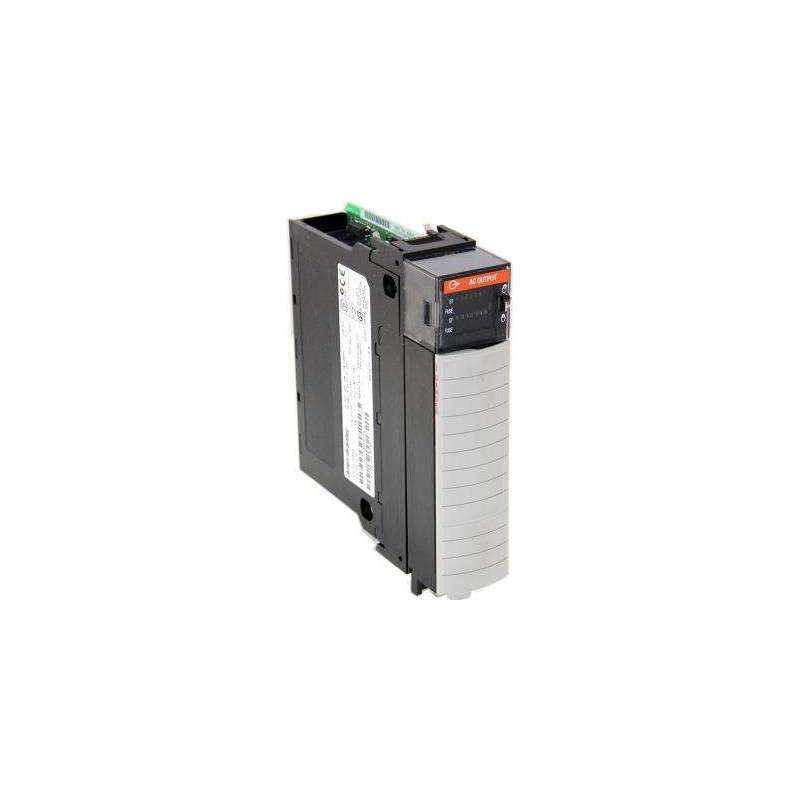

Allen-Bradley 1756-OA16 AC Output Module

Series#: AllenBradley

Product Details

1756-OA16 Allen-Bradley ControlLogix AC Output Module – 16 points, 74-132V AC, fully isolated.
High-density 16-point output design for space-saving control cabinet layouts.
Individual channel isolation up to 1250V AC for robust noise immunity in harsh environments.
Integrated diagnostics with LED status indicators for quick troubleshooting.
Supports both 50/60 Hz operation with soft-start output to reduce inrush current.
Direct replacement for legacy 1756-OA16 series – backward compatible with ControlLogix chassis.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1756-OA16 is a high-performance AC output module from the Allen-Bradley ControlLogix family, engineered for demanding industrial automation applications requiring reliable switching of 74-132V AC loads. This 16-point module offers individual channel isolation, ensuring signal integrity even in electrically noisy environments like motor control centers and process lines. Designed for seamless integration into any ControlLogix chassis, the 1756-OA16 supports soft-start output to mitigate inrush current stress on connected devices, extending the lifespan of actuators, solenoids, and contactors. With a wide operating temperature range of 0 to 60°C and built-in surge protection, it is ideal for continuous operation in factory floors, refineries, and water treatment plants. The module’s diagnostic LEDs provide instant visual feedback on channel status, while its compact form factor maximizes I/O density in rack-based systems.

Specification	Details
Product Type	ControlLogix AC Output Module
Part Number	1756-OA16
Output Points	16 (sink/source, AC)
Output Voltage Range	74-132V AC, 50/60 Hz
Maximum Output Current per Point	1.0 A (continuous) at 60°C
Maximum Current per Module	8 A (total, derated per point)
Isolation Voltage	1250V AC (channel-to-channel and channel-to-backplane)
Output Type	Triac (AC solid-state), zero-crossing switching
Surge Current Capability	10 A per point for 20 ms (non-repetitive)
On-State Voltage Drop	≤ 1.5V RMS at rated current
Off-State Leakage Current	≤ 1.0 mA at 132V AC
Switching Frequency	10 Hz max (resistive load)
Soft-Start Time	10 ms typical
Power Supply Requirement	5V DC Standard Models 150 mA from ControlLogix backplane
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating), 50 g (non-operating)
Enclosure Type	Open-style, suitable for panel mount
Weight	Approx. 0.45 kg (1.0 lb)
Certifications	UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), IECEx, RoHS
Compatible Chassis	1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17, 1756-A10K, 1756-A17K
Wiring Style	Removable terminal block (RTB), 16-position, 3.81 mm pitch
LED Indicators	Green per channel (output status), red per module (fault)
Warranty	1-year standard (extended available)
