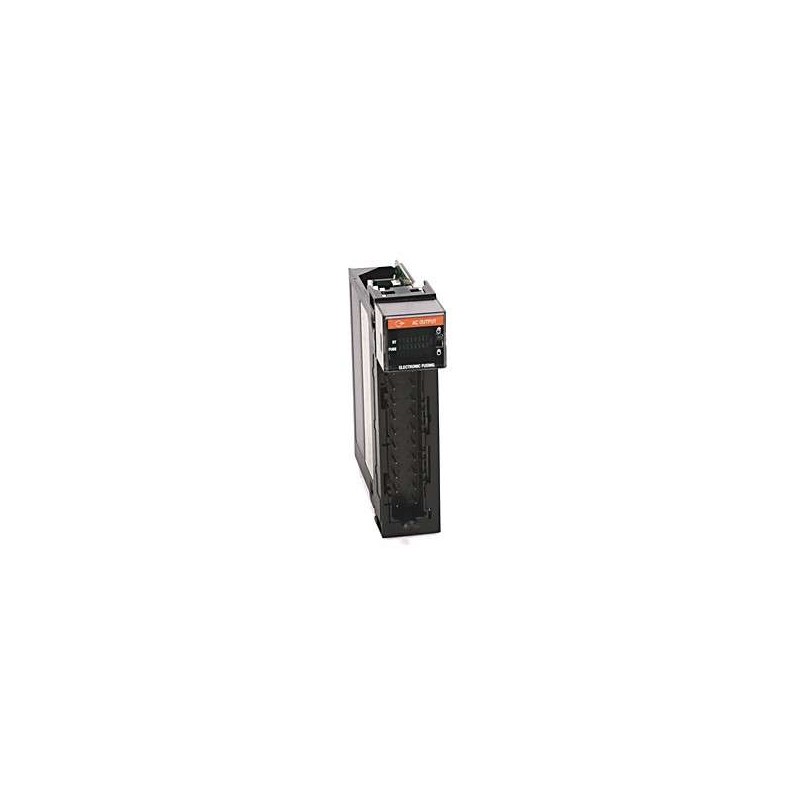

The Allen-Bradley 1756-OA8E is a high-performance ControlLogix AC output module engineered for demanding industrial environments. This 8-point isolated output module operates at 120/240V AC, delivering 2A per point with a total current capacity of 8A per module. Designed for robust control of solenoids, relays, motors, and other AC loads, the 1756-OA8E features electronic fusing per channel to prevent overcurrent damage, along with real-time diagnostics via the ControlLogix backplane. Its hot-swappable capability allows replacement without powering down the chassis, critical for continuous process operations. The module supports standard ControlLogix 1756 I/O chassis and is ideal for applications in manufacturing, oil and gas, and power generation where reliable AC output switching is essential.
| Parameter |
Specification |
| Product Type |
AC Output Module |
| Series |
ControlLogix 1756 |
| Number of Outputs |
8 (Isolated) |
| Output Voltage Range |
85-265V AC (47-63 Hz) |
| Output Current per Point |
2A (Continuous) |
| Total Current per Module |
8A (Continuous) |
| Inrush Current |
10A for 10 ms (per point) |
| Switching Type |
Triac (Zero-Crossing Turn-On) |
| Off-State Leakage Current |
≤ 2.5 mA at 240V AC |
| On-State Voltage Drop |
≤ 1.5V at 2A |
| Response Time (On to Off) |
1/2 Cycle (Maximum) |
| Response Time (Off to On) |
1/2 Cycle (Maximum) |
| Isolation Voltage (Channel to Backplane) |
2500V AC (RMS) for 1 minute |
| Isolation Voltage (Channel to Channel) |
1500V AC (RMS) for 1 minute |
| Protection Features |
Electronic Fusing per Channel, Overcurrent, Short-Circuit |
| Diagnostics |
Open Wire Detection, Fuse Blown Status, Module Health |
| Power Dissipation |
7.5W (Maximum at 8A load) |
| Thermal Dissipation |
25.6 BTU/hr (Maximum) |
| Backplane Current Consumption |
150 mA at 5.1V DC, 5 mA at 24V DC |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (Non-Condensing) |
| Vibration Resistance |
5g at 10-500 Hz |
| Shock Resistance |
30g (11 ms half-sine) |
| Enclosure Type |
Open Style (IP20) |
| Weight |
Approximately 0.25 kg (0.55 lbs) |
| Certifications |
UL Listed, CE Mark, CSA, ATEX (Zone 2) Optional |
| Wiring Style |
Removable Terminal Block (RTB) with 20-14 AWG |
| Keying |
Color-Coded Keying for Module/Backplane Compatibility |
| Hot-Swappable |
Yes (Under ControlLogix Platform) |
| LED Indicators |
Green for Output On, Red for Fault/Blown Fuse |
