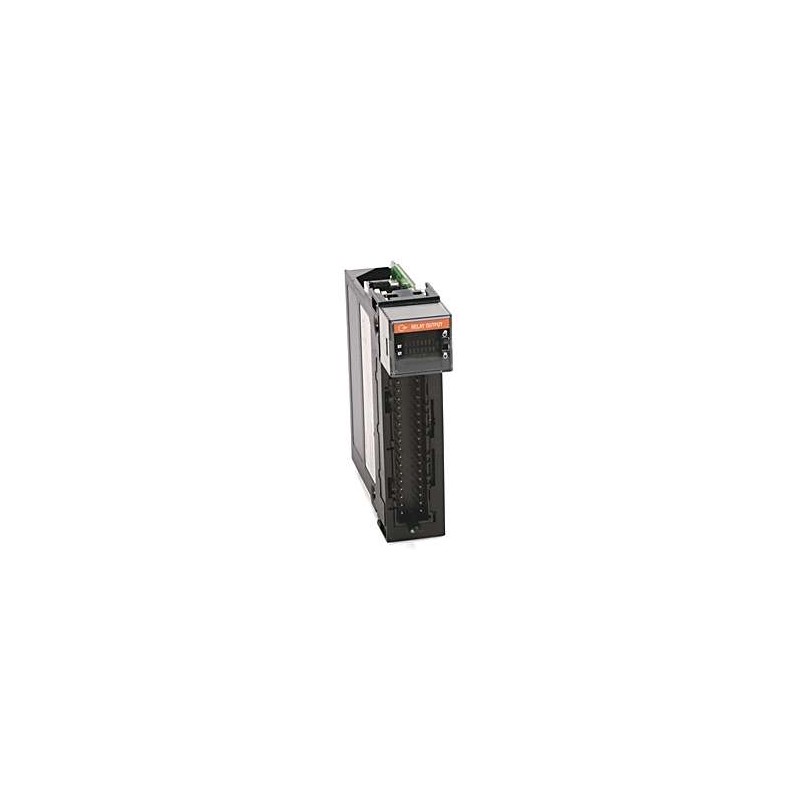

Allen-Bradley 1756-IM16I AC Input Module

Series#: AllenBradley

Product Details

1756-IM16I Allen-Bradley ControlLogix Isolated 16-Point AC Input Module – designed for high-integrity industrial automation.
16 isolated input channels for reliable detection of AC signals, providing robust noise immunity in harsh environments.
Supports wide AC voltage range (85–265V AC, 50/60 Hz) for flexible integration with global power systems.
Built-in galvanic isolation per channel to prevent ground loops and enhance system safety in critical control loops.
Seamless compatibility with Allen-Bradley ControlLogix chassis (1756 series) and RSLogix 5000/Studio 5000 environment.
Compact, rugged design with LED diagnostics for quick status monitoring and reduced downtime.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1756-IM16I Allen-Bradley ControlLogix Isolated 16-Point AC Input Module is a high-performance digital input solution engineered for demanding industrial applications where signal integrity and electrical isolation are paramount. This module features 16 individually isolated AC input channels, each capable of detecting AC signals from 85 to 265V AC at 50/60 Hz, making it ideal for monitoring limit switches, pushbuttons, and proximity sensors in power distribution, manufacturing, and process control environments. The galvanic isolation per channel eliminates ground loops and reduces electrical noise interference, ensuring accurate data acquisition even in electrically noisy plants. With its robust construction and LED indicators for channel status and fault detection, the 1756-IM16I simplifies troubleshooting and enhances system uptime. It integrates directly into any ControlLogix chassis (series A, B, or C) and is fully supported by Rockwell Automation's Studio 5000 environment for seamless configuration and diagnostics. Below is the detailed technical specification table for the 1756-IM16I.

Parameter	Specification
Product Family	Allen-Bradley ControlLogix 1756 Series
Model Number	1756-IM16I
Input Type	AC Isolated Digital Input
Number of Inputs	16 (galvanically isolated per channel)
Input Voltage Range	85–265V AC (50/60 Hz)
Input Current (Typical)	10 mA per channel at 120V AC; 20 mA at 240V AC
Isolation Rating	1500V AC between channels and backplane; 2500V AC channel-to-channel
Input Off-State Voltage	≤ 20V AC
Input On-State Voltage	≥ 60V AC
Input Delay (Filter)	Selectable: 0.5 ms, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms (user-configurable)
Backplane Current	300 mA at 5.1V DC; 200 mA at 24V DC
Power Dissipation	4.5 W typical
Thermal Dissipation	15.3 BTU/hr typical
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	2g Standard Models 10–500 Hz (operating)
Shock Resistance	30g (operating); 50g (non-operating)
Enclosure Type	Open-style (IP20 when mounted in chassis)
Indicators	16 green/red LED per channel (status/fault); one power LED
Connector Type	Removable terminal block (1756-TBCH or 1756-TBS6H recommended)
Wiring	2-wire per input (line and neutral) with common return
Compatibility	All ControlLogix chassis (1756-A4, A7, A10, A13, A17) and controllers
Software Support	Studio 5000 Logix Designer v20 and later; RSLogix 5000 v16+
Certifications	UL 508, CSA C22.2 No. 142, CE, ATEX Zone 2 (IECEx), cULus
Weight	0.45 kg (1.0 lb)
Dimensions (H x W x D)	144 mm x 35 mm x 125 mm (5.67 in x 1.38 in x 4.92 in)
Warranty	Standard 2-year manufacturer warranty (extended available)
