Allen-Bradley 1756-IA16I AC Input Module

Series#: AllenBradley

Product Details

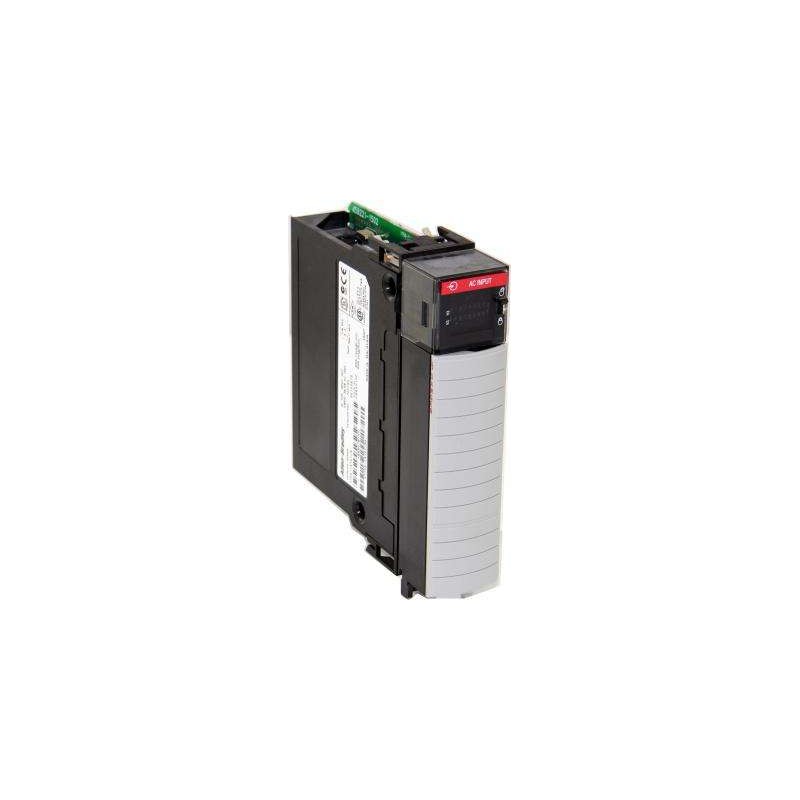

1756-IA16I Allen-Bradley ControlLogix AC Input Module – 16-channel, 100/120V AC isolated input interface for high-integrity industrial automation.
Isolated input design eliminates ground loops and enhances noise immunity in harsh electrical environments.
High-density 16-point configuration reduces panel space and simplifies wiring in ControlLogix chassis.
Compatible with 1756 backplane and all ControlLogix controllers (L6x, L7x, L8x series) for seamless integration.
Fast response time with built-in input filtering for reliable detection in high-speed applications.
Robust industrial construction rated for -20°C to +60°C operation, ideal for factory floors and process plants.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1756-IA16I is a high-performance Allen-Bradley ControlLogix AC input module engineered for demanding industrial environments. This 16-channel isolated input module operates at 100/120V AC, providing galvanic isolation between each input channel to eliminate ground loops and electrical noise interference. Designed for use with ControlLogix chassis (1756-A4, A7, A10, A13, A17), it supports hot-swappable installation and is fully compatible with all ControlLogix controllers, including 1756-L6x, L7x, and L8x series. The module features individual input status indicators, software-configurable input filters, and a robust isolation rating of 2500V AC for channel-to-backplane separation. Ideal for discrete sensing in motor control centers, conveyor systems, and packaging lines, the 1756-IA16I ensures reliable signal acquisition in high-voltage AC environments. Each unit is factory-tested and shipped with a Certificate of Conformance, ensuring 100% original and new condition.

Parameter	Specification
Product Type	AC Input Module
Model Number	1756-IA16I
Manufacturer	Allen-Bradley / Rockwell Automation
Number of Inputs	16 channels (isolated)
Input Voltage Range	85–132V AC (nominal 100/120V AC)
Input Frequency	47–63 Hz
Input Current (per channel)	8 mA typical at 120V AC
Isolation Voltage	2500V AC channel-to-backplane (continuous)
Input Filter Time	Software selectable: 1 ms, 2 ms, 5 ms, 10 ms
Off-State Voltage	< 30V AC
On-State Voltage	> 70V AC
Backplane Current (5V DC)	250 mA typical
Backplane Current (24V DC)	0 mA (module does not use 24V rail)
Power Dissipation	3.5 W typical
Thermal Dissipation	11.9 BTU/hr typical
Indicators	16 green LED status indicators (one per input), 1 green module status LED
Connector Type	Removable terminal block (RTB) – 1756-TBCH or 1756-TBS6H
Wiring Category	Class I, Division 2 (hazardous locations)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g at 10–500 Hz (operating)
Shock Resistance	30 g (operating), 50 g (non-operating)
Dimensions (H x W x D)	144 mm x 35 mm x 105 mm (5.67 in x 1.38 in x 4.13 in)
Weight	0.22 kg (0.49 lb)
Compatible Chassis	1756-A4, A7, A10, A13, A17 (single-slot module)
Compatible Controllers	ControlLogix 1756-L6x, L7x, L8x series
Certifications	CE, cULus, ATEX, IECEx, RoHS compliant
Warranty	1-year replacement (standard)
Shipping	Global express shipping available; 100% original and new condition
