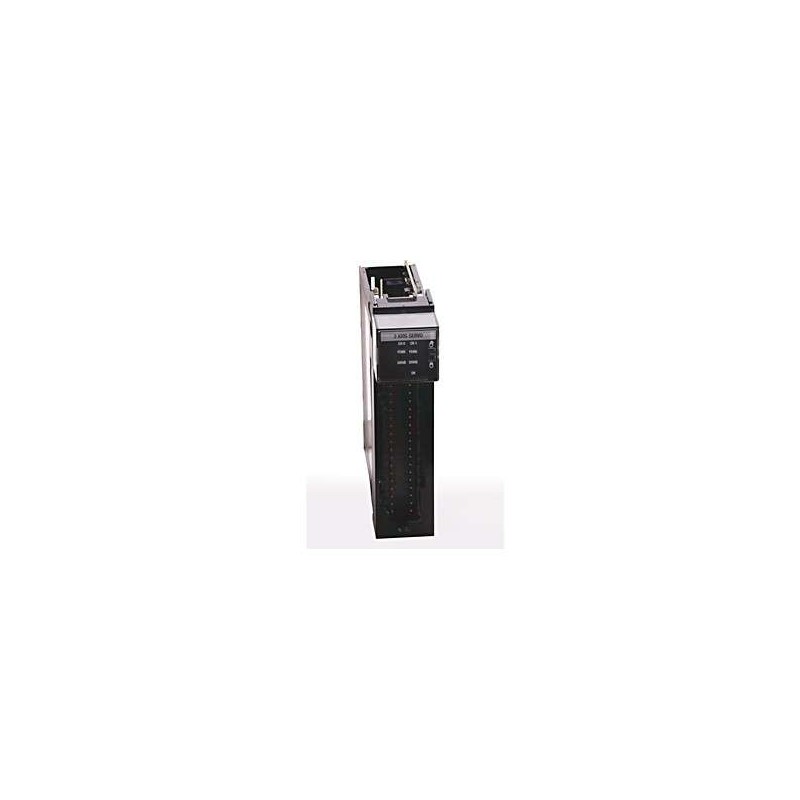

Allen-Bradley 1756-M02AE Analog Servo Module

Series#: AllenBradley

Product Details

1756-M02AE – High-performance servo drive module for Allen-Bradley ControlLogix platform, delivering precise motion control.
Dual-axis capability for coordinated motion in multi-axis automation systems.
Integrated SERCOS interface for high-speed, deterministic communication.
Supports a wide range of feedback devices, including absolute and incremental encoders.
Compact, rack-mounted design for easy integration into existing ControlLogix chassis.
Advanced diagnostics and fault protection ensure reliable operation in harsh industrial environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Allen-Bradley 1756-M02AE is a dual-axis servo drive module engineered for the ControlLogix platform, designed to deliver precise and synchronized motion control in demanding industrial automation applications. This module leverages a high-speed SERCOS interface to communicate with servo drives, enabling real-time coordination of two axes with minimal latency. The 1756-M02AE supports a variety of feedback types, including absolute encoders, to ensure accurate position, velocity, and torque control. Its robust construction and comprehensive diagnostic capabilities make it ideal for applications such as packaging, material handling, and machine tool automation. With its 100% original and new condition, this module is ready for immediate deployment, backed by reliable global logistics.

Specification	Details
Product Type	Dual-Axis Servo Drive Module
Model Number	1756-M02AE
Platform	ControlLogix
Number of Axes	2
Communication Interface	SERCOS (IEC 61491)
Feedback Types Supported	Absolute Encoders, Incremental Encoders, Resolver, Tachometer
Maximum Encoder Frequency	10 MHz
Position Feedback Resolution	Up to 24 bits (absolute)
Control Modes	Position, Velocity, Torque
Power Supply Voltage	24V DC (backplane power)
Current Rating per Axis	2 A continuous, 4 A peak
Backplane Current Consumption	1.2 A at 5V DC
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz
Shock Resistance	15 g peak
Dimensions (H x W x D)	144 mm x 51 mm x 127 mm (5.67 in x 2.01 in x 5.0 in)
Weight	0.45 kg (1.0 lb)
Mounting Type	ControlLogix chassis slot (single-wide)
Compatible Chassis	1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
Certifications	UL, CSA, CE, ATEX (Zone 2), IECEx
Warranty	1 year (standard)
