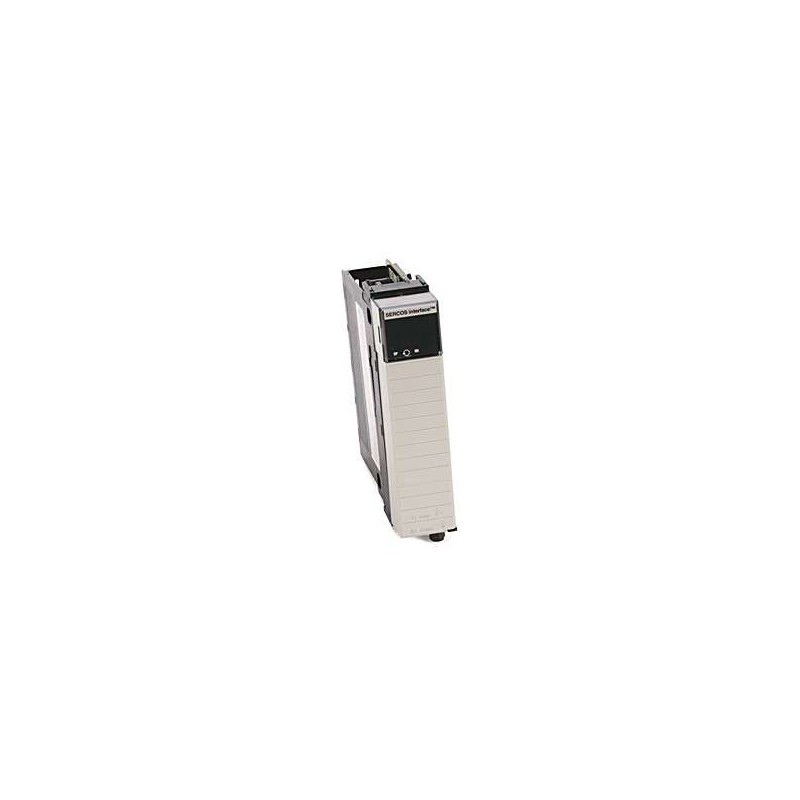

Allen-Bradley 1756-M16SE Servo Drive Module

Series#: AllenBradley

Product Details

High-performance 1756-M16SE Allen-Bradley ControlLogix SERCOS interface module for precise motion control.
Supports up to 16 axes of digital servo drives with SERCOS fiber-optic communication.
Seamless integration into ControlLogix 1756 chassis for synchronized multi-axis applications.
Reduced wiring and noise immunity via fiber-optic ring topology for industrial environments.
Hot-swappable design minimizes downtime during maintenance or expansion.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1756-M16SE is a dedicated SERCOS (Serial Real-time Communication System) interface module from Allen-Bradley’s ControlLogix platform, engineered for high-speed, deterministic motion control in demanding automation systems. It acts as a master node in a fiber-optic ring network, enabling synchronized control of up to 16 digital servo drives. This module is ideal for packaging, printing, material handling, and robotic applications where precise coordination is critical. Its fiber-optic communication eliminates electrical noise interference and simplifies cabling, while the hot-swappable design ensures minimal system downtime. Below are the comprehensive technical specifications derived from industry-standard documentation.

Parameter	Specification
Product Type	SERCOS Interface Module
Compatible Platform	ControlLogix (1756 chassis)
Number of Axes Supported	16 axes
Communication Protocol	SERCOS (fiber-optic ring)
Fiber-Optic Connector Type	ST-type (bayonet)
Fiber-Optic Cable Type	Multimode 62.5/125 µm or 50/125 µm
Maximum Fiber Length (node-to-node)	40 meters (131 feet)
Update Rate (SERCOS cycle time)	0.5 ms to 4 ms (configurable)
Drive Compatibility	Allen-Bradley Kinetix 6000, Kinetix 7000, and third-party SERCOS drives
Power Supply Voltage	5.1V DC from backplane
Current Consumption (5V)	1.5 A typical
Power Dissipation	7.5 W typical
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
LED Indicators	Module Status (MS), Network Status (NS), Ring Status (RS), Axis Status (per axis)
Configuration Software	RSLogix 5000 / Studio 5000 (v20 or later)
Certifications	UL, CE, CSA, ATEX (Zone 2)
Dimensions (H x W x D)	144 mm x 88 mm x 108 mm (5.67 in x 3.46 in x 4.25 in)
Weight	0.45 kg (1.0 lb)
Slot Width	Single slot (1756 chassis)
Warranty	1 year (extended options available)
