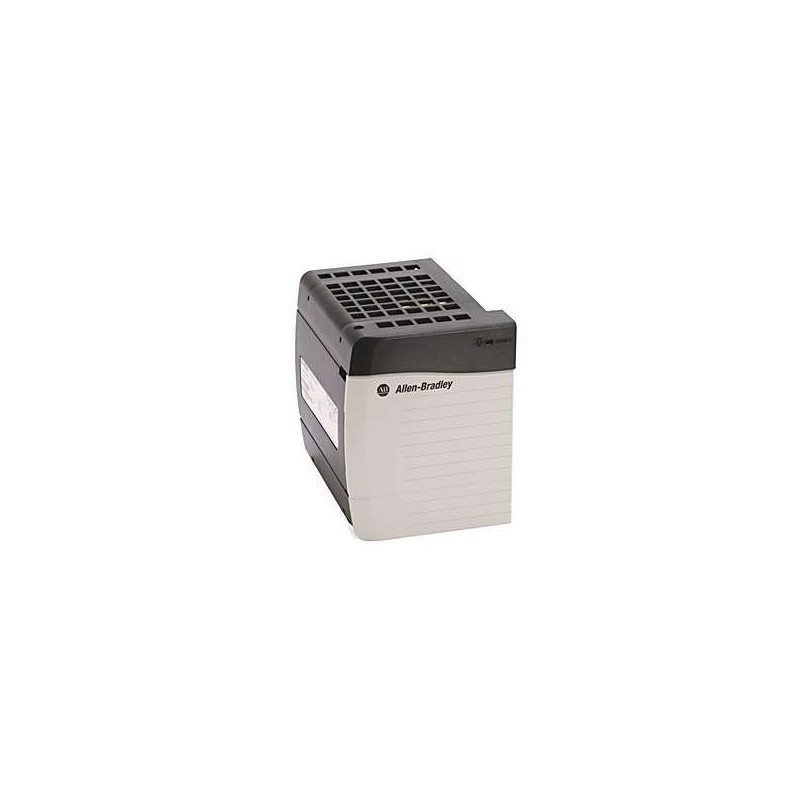

Allen-Bradley 1756-PH75 Power Supply

Series#: AllenBradley

Product Details

The 1756-PH75 is a high-capacity AC input power supply module for Allen-Bradley ControlLogix systems.
Delivers a robust 7.5A at 5.1V DC and 3.6A at 24V DC to backplane, ensuring stable operation for demanding applications.
Supports universal AC input range of 85-264V AC, 47-63 Hz, with built-in surge protection.
Features redundant power capability for critical process control systems, enhancing system uptime.
Includes integrated diagnostic LEDs for input power, output status, and fault indication.
Designed for easy installation in standard ControlLogix chassis with no additional wiring complexity.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1756-PH75 power supply is a cornerstone component for ControlLogix automation platforms, engineered to provide clean, regulated DC power to the backplane and connected modules. This AC-input unit is optimized for industrial environments where reliability and continuous operation are non-negotiable. It delivers a combined output of 7.5A at 5.1V and 3.6A at 24V, making it suitable for large chassis configurations with high I/O counts or communication modules. The 1756-PH75 supports redundant operation when paired with a second unit, ensuring seamless failover in critical processes. Its universal AC input range and integrated EMI filtering minimize electrical noise, while the diagnostic LEDs allow at-a-glance status monitoring. This module is fully compatible with all ControlLogix chassis (1756-A4, A7, A10, A13, A17) and meets global safety and emission standards.

Parameter	Specification
Model	1756-PH75
Type	AC Input Power Supply
Input Voltage Range	85-264V AC, 47-63 Hz
Input Current (Max)	2.0A at 120V AC; 1.0A at 240V AC
Output Voltage 1 (5.1V DC)	7.5A (38.25W)
Output Voltage 2 (24V DC)	3.6A (86.4W)
Total Output Power	124.65W (maximum)
Backplane Current Capacity	7.5A at 5.1V; 3.6A at 24V
Redundancy Support	Yes (n+1 with 1756-PH75 or 1756-PA75)
Diagnostic Indicators	Power OK, Fault, Input OK (Green/Red LEDs)
Isolation	2500V AC input to output; 1500V AC input to chassis
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Weight	Approx. 0.9 kg (2.0 lbs)
Dimensions (H x W x D)	144 mm x 86 mm x 130 mm (5.67 in x 3.39 in x 5.12 in)
Compatible Chassis	1756-A4, A7, A10, A13, A17 (All ControlLogix standard chassis)
Certifications	CE, UL 508, CSA C22.2, ATEX (Hazardous Location)
Protection Features	Overcurrent, Overvoltage, Short Circuit, Thermal Shutdown
