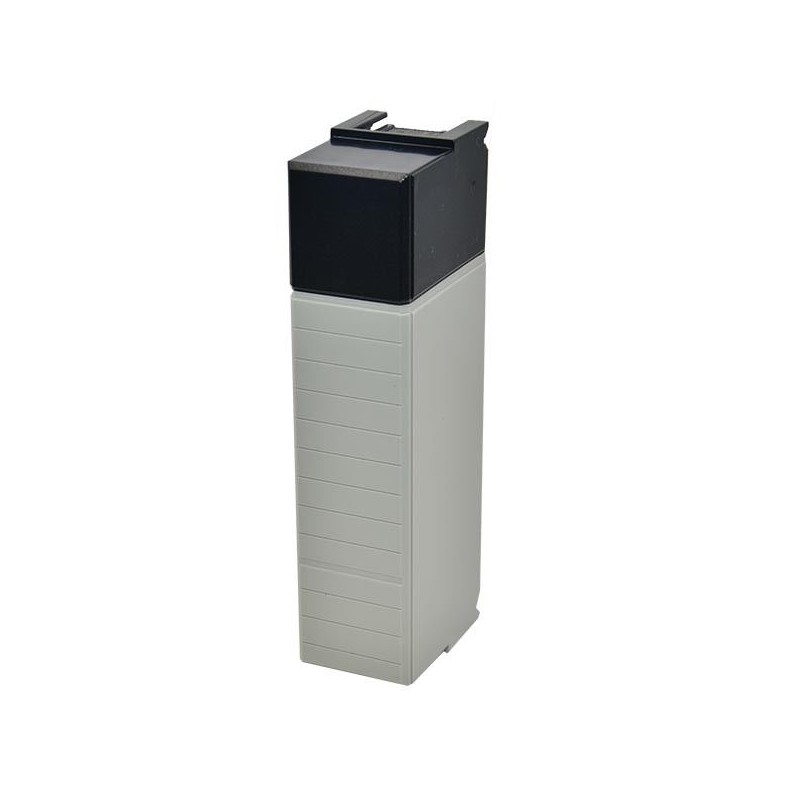

The Allen-Bradley 1756-N2 is a fundamental component of the ControlLogix platform, engineered to provide a scalable and ruggedized backplane for high-speed communication and power distribution. This module supports up to 10 I/O modules, enabling efficient system expansion in demanding industrial applications such as manufacturing, process control, and energy management. With its advanced thermal management and shock-resistant construction, the 1756-N2 ensures reliable performance in extreme conditions, while its plug-and-play design simplifies installation and reduces downtime. Ideal for both new installations and retrofits, this module integrates seamlessly with existing ControlLogix architectures, delivering consistent data integrity and operational efficiency.
| Parameter |
Specification |
| Product Type |
ControlLogix Chassis Module |
| Model Number |
1756-N2 |
| Series |
ControlLogix 1756 |
| Number of Slots |
10 I/O Module Slots |
| Backplane Type |
Standard ControlLogix Backplane |
| Power Supply Compatibility |
1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75 (AC/DC Models) |
| Communication Protocol |
ControlNet, EtherNet/IP, DeviceNet (via compatible modules) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
2 g Standard Models 10-500 Hz (operational) |
| Shock Resistance |
30 g (operational), 50 g (non-operational) |
| Enclosure Rating |
IP20 (NEMA 1) |
| Mounting |
Panel mount or DIN rail mount |
| Dimensions (H x W x D) |
Approx. 5.12 in x 5.25 in x 1.5 in (130 mm x 133 mm x 38 mm) |
| Weight |
Approx. 0.5 lb (0.23 kg) |
| Certifications |
UL, CE, CSA, FCC, ATEX (for hazardous locations) |
| Warranty |
1 Year (extended options available) |
