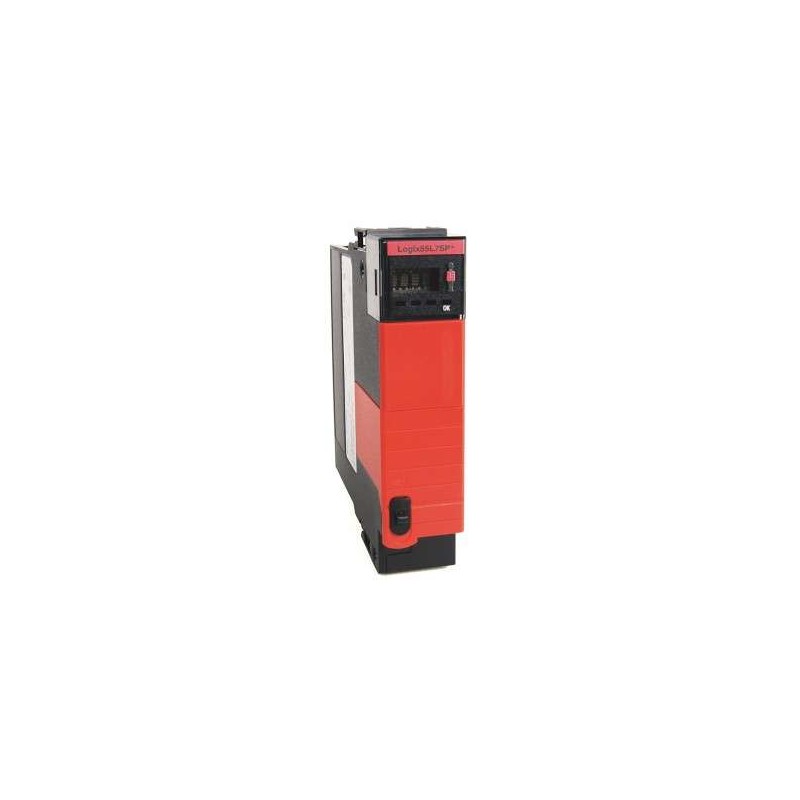

Allen-Bradley 1756-L7SP Controller Module

Series#: AllenBradley

Product Details

Model: 1756-L7SP – High-performance safety controller for Allen-Bradley ControlLogix platform.
Delivers SIL 3 / PLe certified safety control with integrated safety logic execution.
Compact, single-slot form factor reduces panel space and simplifies system integration.
Supports up to 32 safety tasks and 128 safety I/O modules for flexible safety architectures.
Built-in dual-redundant processors for fail-safe operation and high availability.
Directly compatible with ControlLogix chassis and Studio 5000 Logix Designer environment.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Allen-Bradley 1756-L7SP is a state-of-the-art safety controller designed for mission-critical industrial automation systems requiring the highest level of functional safety. As part of the ControlLogix family, this module integrates seamlessly into existing ControlLogix chassis, providing a unified platform for both standard and safety control. The 1756-L7SP executes safety logic independently while sharing data with standard controllers via the ControlLogix backplane, enabling efficient coordination between safety and non-safety processes. With its dual-processor architecture, the controller ensures fail-safe operation and meets stringent SIL 3 (IEC 61508) and PLe (ISO 13849) safety integrity levels. It supports extensive safety I/O configurations, including distributed safety modules via EtherNet/IP or ControlNet, making it ideal for complex safety applications in industries such as automotive, oil and gas, and pharmaceuticals.

Parameter	Specification
Product Type	Safety Controller
Model	1756-L7SP
Form Factor	Single-slot, ControlLogix chassis
Processor Architecture	Dual-redundant, fail-safe
Safety Integrity Level	SIL 3 (IEC 61508), PLe (ISO 13849)
Maximum Safety Tasks	32
Maximum Safety I/O Modules	128
Memory (Safety Logic)	2 MB
Communication Protocols	EtherNet/IP, ControlNet, DeviceNet (via backplane)
Backplane Data Rate	Up to 100 Mbps (ControlLogix backplane)
Power Consumption	3.5 W (typical)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Certifications	CE, UL, cUL, TÜV, ATEX (Zone 2), IECEx
Safety Certifications	TÜV Rheinland, SIL 3, PLe
Software Compatibility	Studio 5000 Logix Designer v20 or later
Weight	0.25 kg (0.55 lbs)
Dimensions (H x W x D)	144 mm x 35 mm x 105 mm (5.67 in x 1.38 in x 4.13 in)
Warranty	1 year (standard)
