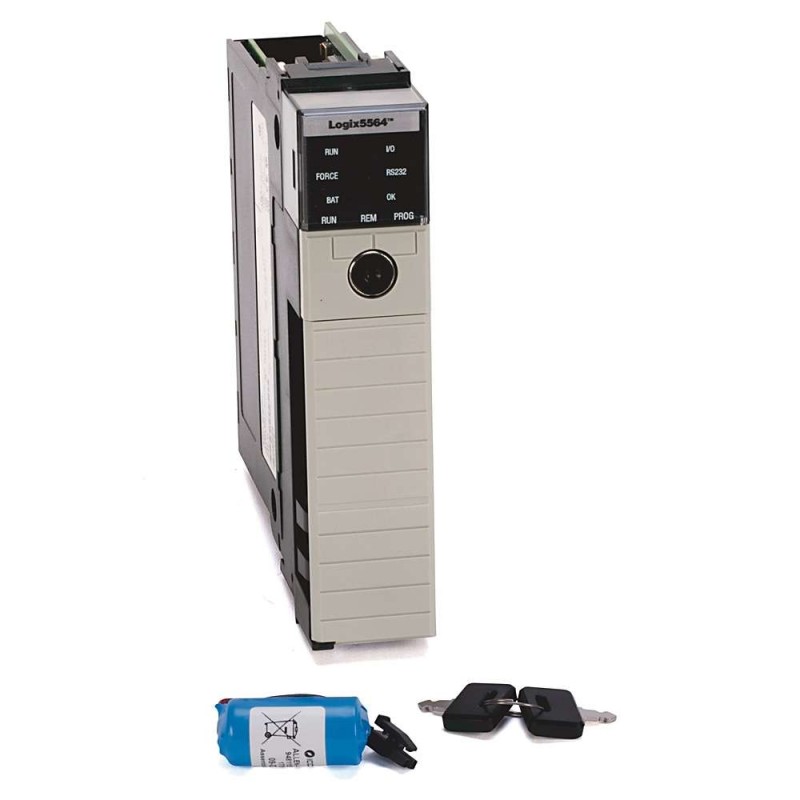

Allen-Bradley 1756-L64 ControlLogix Processor

Series#: AllenBradley

Product Details

1756-L64 ALLEN-BRADLEY – High-performance ControlLogix processor for demanding automation tasks.
Designed for large-scale distributed control with up to 64 I/O modules per chassis.
Supports redundant communication via ControlNet, EtherNet/IP, and DeviceNet networks.
Integrated motion control and advanced diagnostics for predictive maintenance.
Fast scan times and ample memory for complex logic and data logging.
Hot-swappable in ControlLogix chassis for minimal downtime.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The 1756-L64 ALLEN-BRADLEY is a flagship ControlLogix controller engineered for mission-critical industrial automation. It delivers deterministic, high-speed control across multiple chassis, supporting up to 64 local I/O modules and thousands of remote points. With native support for redundant media and controllers, it ensures system availability in harsh environments. The processor’s robust memory architecture handles complex sequential, process, and motion control algorithms simultaneously. Ideal for oil & gas, power generation, and automotive assembly lines, the 1756-L64 combines scalability with reliability.

Parameter	Specification
Model Number	1756-L64 ALLEN-BRADLEY
Processor Type	ControlLogix Standard Controller
Memory (User Logic)	2 MB (expandable via memory modules)
I/O Capacity	64 local modules per chassis; 128 remote chassis
Communication Ports	1x RS-232, 2x Ethernet, 2x ControlNet (coaxial or fiber)
Supported Networks	EtherNet/IP, ControlNet, DeviceNet, Foundation Fieldbus, HART
Redundancy Support	Yes – controller and media redundancy via 1757-SRM
Motion Control	Integrated – supports up to 16 axes of servo/stepper
Scan Time (Typical)	0.5 ms for 1K boolean logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Power Supply	24V DC, 1.5A (from chassis backplane)
Certifications	UL, CE, CSA, ATEX (Zone 2), IECEx
Weight	1.2 kg (2.65 lbs)
Dimensions (H x W x D)	13.3 x 5.1 x 14.5 cm (5.24 x 2.01 x 5.71 in)
