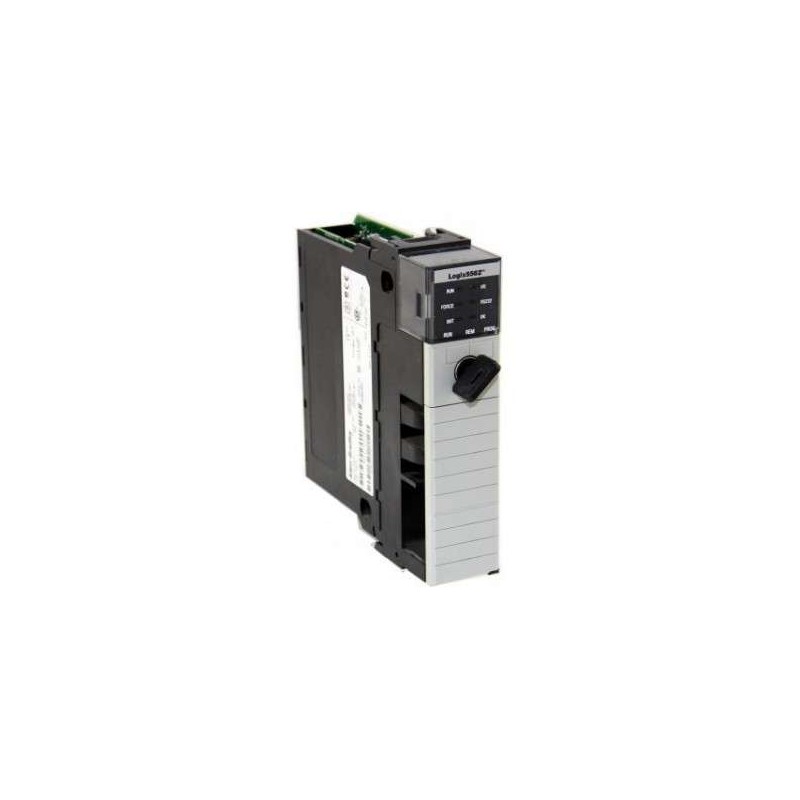

The Allen-Bradley 1756-L62 is a flagship ControlLogix processor engineered to meet the demands of complex industrial automation systems. This module combines a powerful 1.8 GHz dual-core processor with 4 MB of user memory, enabling efficient handling of high-speed logic, motion, and process control tasks. Designed for scalability, the 1756-L62 supports multiple network protocols and offers seamless integration with existing Rockwell Automation platforms. Its rugged construction ensures reliable operation in demanding environments, making it a top choice for manufacturing, oil and gas, and infrastructure projects. Below are the detailed specifications derived from industry-standard data.
| Specification |
Details |
| Model Number |
1756-L62 |
| Product Type |
ControlLogix Processor Module |
| Processor Speed |
1.8 GHz Dual-Core |
| User Memory |
4 MB (Non-Volatile) |
| Maximum I/O Points |
128,000 (Digital) / 4,000 (Analog) |
| Communication Ports |
1x Ethernet/IP (RJ45), 1x ControlNet (Coax), 1x Serial (RS-232/485) |
| Network Protocols Supported |
EtherNet/IP, ControlNet, DeviceNet |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (Non-Condensing) |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (Operating) |
| Shock Resistance |
30 g (Operating) |
| Power Supply Voltage |
24V DC (Nominal) |
| Power Consumption |
12 W (Typical) |
| Backplane Current |
1.5 A Standard Models 5V DC, 0.5 A Standard Models 24V DC |
| Redundancy Support |
Yes (Fault-Tolerant Configuration) |
| Programming Software |
RSLogix 5000 / Studio 5000 |
| Dimensions (H x W x D) |
5.0 in x 3.5 in x 4.5 in (127 mm x 89 mm x 114 mm) |
| Weight |
1.8 lbs (0.82 kg) |
| Certifications |
CE, UL, cUL, ATEX, IECEx |
| Warranty |
1 Year (Standard) |
