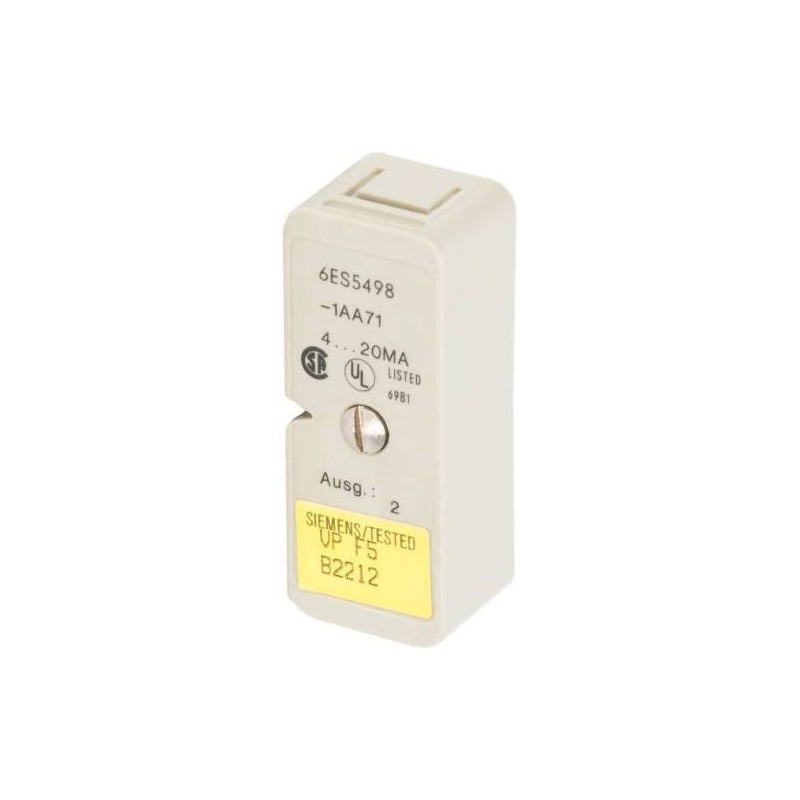

The SIEMENS SIMATIC S5 6ES5498-1AA71 Measuring Range Module is a specialized component engineered for analog signal processing within the S5-115U and S5-135U programmable logic controllers. This module provides essential scaling and filtering functions to convert raw analog inputs from sensors into standardized digital values for the CPU. As a critical interface between field devices and the control system, the 6ES5498-1AA71 ensures accurate measurement and repeatable performance in harsh industrial settings. Its robust design and direct backplane connectivity make it a reliable choice for retrofit or expansion projects in legacy automation systems.
| Parameter |
Specification |
| Product Type |
Measuring Range Module |
| Model Number |
6ES5498-1AA71 |
| Manufacturer |
SIEMENS |
| Series |
SIMATIC S5 |
| Compatible Systems |
S5-115U, S5-135U |
| Input Signal Types |
Voltage (0-10V, ±10V), Current (0-20mA, 4-20mA) |
| Number of Channels |
1 (single-channel module) |
| Resolution |
12-bit (typical) |
| Isolation |
Optical isolation between input and backplane bus |
| Power Supply |
5V DC from backplane bus |
| Power Consumption |
Approx. 0.5 W |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
Up to 95% (non-condensing) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm (approx.) |
| Weight |
Approx. 0.2 kg |
| Connection Type |
Front connector (screw-type, 20-pin) |
| Protection Class |
IP20 |
| Standards Compliance |
DIN, IEC, EN 61131-2 |
| Mounting |
DIN rail mount or direct panel mount via S5 rack |
| Diagnostics |
LED status indicator (green for normal operation) |
| Accessories Included |
Front connector (6ES5-490-8BA11) typically required |
