Siemens 6ES5524-3UA15 Minicomputer

Series#: Siemens

Product Details

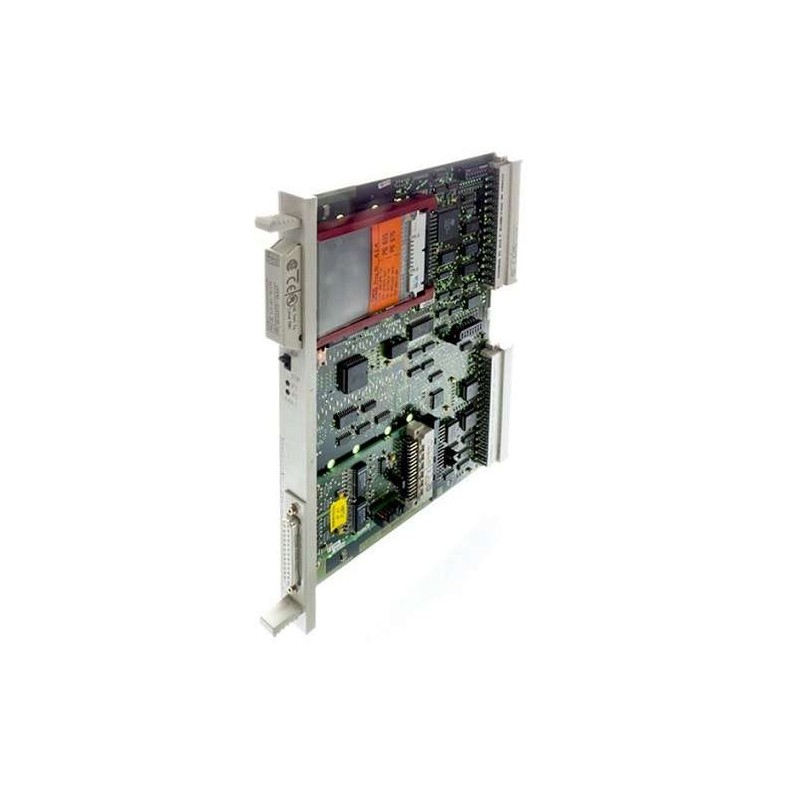

6ES5524-3UA15 – High-performance Siemens F. PLC module for minicomputer integration in industrial automation.
Designed for Siemens S5-115U/F series, offering robust logic processing for complex control tasks.
Supports analog and digital I/O expansion via backplane bus, enhancing system flexibility.
Built-in diagnostics and fault detection for reliable operation in harsh environments.
Compact form factor with DIN rail mounting, simplifying installation and maintenance.
Compatible with STEP 5 programming environment for seamless configuration and troubleshooting.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The 6ES5524-3UA15 is a critical component in Siemens' S5-115U/F programmable logic controller family, specifically engineered for minicomputer-based automation systems. This module serves as a central processing unit (CPU) or interface processor, enabling high-speed data exchange between the PLC and external minicomputers or supervisory control systems. With its proven reliability and compatibility with legacy Siemens architectures, the 6ES5524-3UA15 remains a vital spare part for industries requiring long-term support for existing automation lines. It integrates seamlessly with S5 backplanes and supports a wide range of I/O modules, making it ideal for applications in manufacturing, process control, and energy management.

Parameter	Specification
Product Type	PLC Module for Minicomputer Interface
Model Number	6ES5524-3UA15
Compatible Series	Siemens S5-115U/F
Power Supply Voltage	24 V DC (nominal), 20.4–28.8 V DC range
Current Consumption	Typical 0.5 A at 24 V DC
Processor Type	Intel 8085-based (or equivalent)
Memory Capacity	Up to 32 KB RAM/EPROM (expandable via memory submodules)
Digital I/O Support	Max 128 digital inputs/outputs (via expansion racks)
Analog I/O Support	Max 32 analog channels (via analog modules)
Communication Interface	Serial RS-232C/RS-422 for minicomputer link; parallel bus for backplane
Cycle Time	Approx. 1 ms per 1K instructions (typical)
Operating Temperature	0°C to +55°C (32°F to 131°F)
Storage Temperature	-20°C to +70°C (-4°F to 158°F)
Humidity	5% to 95% non-condensing
Protection Class	IP20 (with enclosure)
Mounting Method	DIN rail (35 mm) or screw mounting on backplane
Dimensions (W x H x D)	Approx. 80 mm x 125 mm x 120 mm
Weight	Approx. 0.45 kg
Certifications	CE, UL, CSA (typical for Siemens S5 modules)
Warranty	Standard 12 months against defects
