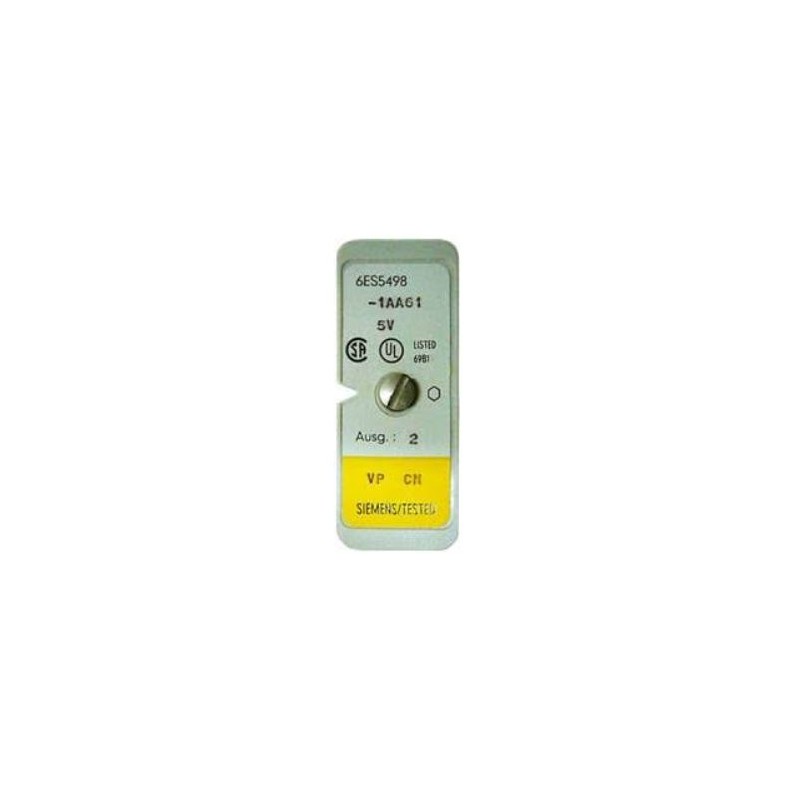

The 6ES5498-1AA61 is a dedicated measuring range module from the SIEMENS SIMATIC S5 family, engineered to provide precise analog signal acquisition and conditioning for process control applications. This module interfaces directly with the S5 backplane bus, enabling seamless integration into existing automation architectures. It supports a wide variety of input ranges, including standard voltage and current signals (e.g., 0-10V, 4-20mA) as well as resistance-based sensors like Pt100 RTDs. The module features high-resolution analog-to-digital conversion with built-in filtering to minimize electrical noise, ensuring stable readings even in electrically noisy environments. Its galvanic isolation protects the PLC logic from external surges, while the compact design fits into any standard S5 rack slot without additional power supply requirements. The 6ES5498-1AA61 is ideal for retrofitting legacy systems or expanding measurement capabilities in industries such as automotive, chemical processing, and material handling.
| Parameter |
Specification |
| Product Type |
Measuring Range Module |
| Model Number |
6ES5498-1AA61 |
| Series |
SIEMENS SIMATIC S5 |
| Input Channels |
4 differential analog inputs |
| Input Signal Types |
Voltage (0-10V, ±10V), Current (0-20mA, 4-20mA), Resistance (Pt100, Pt1000) |
| Resolution |
12-bit (4096 steps) |
| Conversion Time |
≤ 25 ms per channel |
| Galvanic Isolation |
500 VAC between inputs and backplane |
| Operating Voltage |
24 VDC (via backplane bus) |
| Power Consumption |
Typical 2.5 W |
| Operating Temperature |
0°C to +55°C (32°F to 131°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to 158°F) |
| Humidity |
5% to 95% non-condensing |
| Dimensions (H x W x D) |
110 mm x 40 mm x 125 mm |
| Weight |
Approx. 0.3 kg |
| Compatible Rack Types |
Standard S5 racks (e.g., 6ES5-xxx series) |
| Protection Class |
IP20 (open type) |
| Certifications |
CE, UL, CSA (for industrial use) |
| Warranty |
1 year (standard), extended available |
