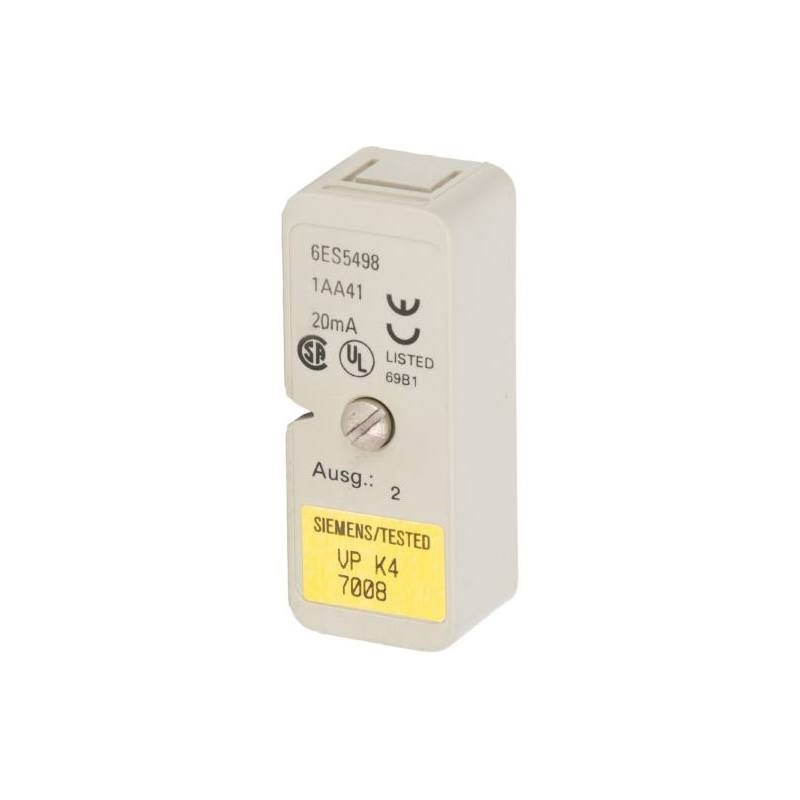

Siemens 6ES5498-1AA41 SIMATIC S5 Measuring Range Module

Siemens 6ES5498-1AA41 SIMATIC S5 Measuring Range Module

Series#: Siemens

Product Details

6ES5498-1AA41 – High-precision measuring range module for SIEMENS SIMATIC S5 automation systems.
Designed for analog signal conditioning in industrial process control loops.
Supports multiple input ranges for voltage and current (e.g., 0–10 V, 4–20 mA).
Plug-in module format for easy installation into S5 rack systems (e.g., 6ES5 490-8BA11).
Built-in galvanic isolation to protect against ground loops and noise interference.
Compatible with SIMATIC S5 CPUs (e.g., 115U, 135U, 155U) – no additional wiring required.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The 6ES5498-1AA41 is a specialized measuring range module from the SIEMENS SIMATIC S5 family, engineered to interface analog sensors and transmitters with the S5 backplane bus. This module provides precise signal conditioning for voltage and current inputs, ensuring stable data acquisition in harsh industrial environments. It features a compact plug-in design, enabling rapid replacement or expansion without system downtime. The module’s galvanic isolation minimizes electrical noise, making it ideal for applications in manufacturing, chemical processing, and energy management.

Specification	Details
Product Type	Measuring Range Module
Model Number	6ES5498-1AA41
System Compatibility	SIEMENS SIMATIC S5 (115U, 135U, 155U)
Input Signal Types	Voltage: 0–10 V, ±10 V; Current: 0–20 mA, 4–20 mA
Number of Channels	1 channel (single-ended or differential, configurable)
Resolution	12-bit (standard) or 14-bit (with external reference)
Galvanic Isolation	Yes, 500 V AC between input and backplane
Power Supply	5 V DC from backplane (typical 100 mA)
Operating Temperature	0°C to +60°C (storage: -20°C to +80°C)
Dimensions (W x H x D)	40 mm x 125 mm x 120 mm (single-width module)
Weight	Approx. 0.15 kg
Mounting	Plug-in to S5 rack (e.g., 6ES5 490-8BA11 or 6ES5 490-8BA21)
Protection Class	IP20 (for use in control cabinet)
Certifications	CE, UL, cUL (industrial control equipment)
Warranty	12 months from date of shipment
