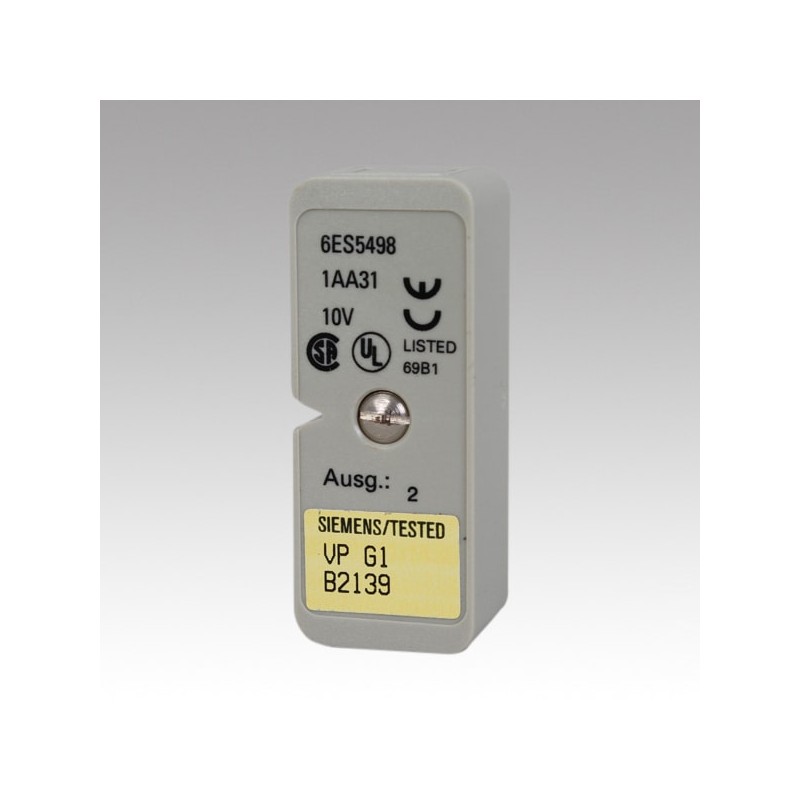

The 6ES5498-1AA31 is a specialized measuring range module from the Siemens SIMATIC S5 family, engineered to provide precise analog signal conversion and conditioning for demanding industrial automation tasks. This module is essential for applications requiring accurate measurement of voltage or current signals from sensors, transducers, or field devices, ensuring reliable data acquisition in real-time control loops. With its configurable input ranges and robust galvanic isolation, the 6ES5498-1AA31 delivers consistent performance even in electrically noisy environments, making it a trusted choice for process industries, manufacturing lines, and infrastructure systems.
| Parameter |
Specification |
| Model Number |
6ES5498-1AA31 |
| Product Type |
Measuring Range Module (Analog Input Module) |
| Series |
SIMATIC S5 |
| Input Channels |
2 channels (differential) |
| Input Ranges (Voltage) |
±10V, 0-10V, ±5V, 0-5V (software configurable) |
| Input Ranges (Current) |
±20mA, 0-20mA, 4-20mA (via external shunt resistor) |
| Resolution |
12-bit (including sign bit) |
| Conversion Time |
Approx. 1 ms per channel |
| Galvanic Isolation |
500VAC between inputs and backplane bus |
| Supply Voltage |
24VDC (via backplane bus or external) |
| Power Consumption |
Typically 3W |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +70°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
| Weight |
Approx. 0.2 kg |
| Compatibility |
S5-95U, S5-115U, S5-135U, S5-155U (with appropriate rack) |
| Protection Class |
IP20 |
| Standards |
IEC 61131-2, EN 50022 |
