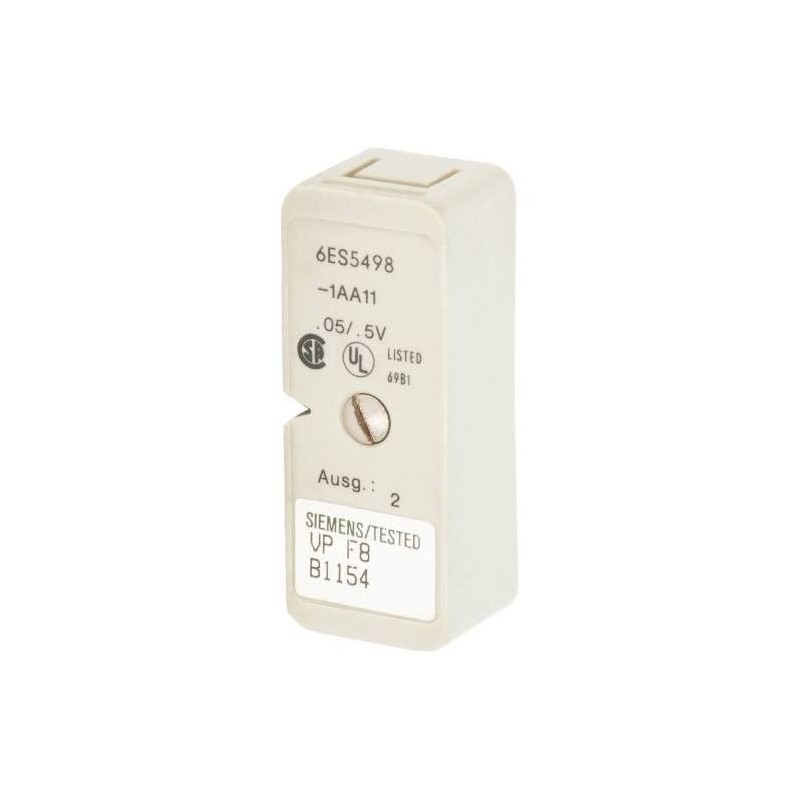

The 6ES5498-1AA11 is an integral component of the SIMATIC S5 programmable logic controller family, specifically engineered to extend the analog input capabilities of the system. As a dedicated measuring range module, it accepts raw transducer signals (e.g., from pressure transmitters, flow meters, or temperature sensors) and converts them into a digital format compatible with the S5 backplane bus. Its precision-grade circuitry ensures linearity within 0.1% of full scale, making it ideal for applications requiring tight process control, such as chemical batch processing, water treatment, or HVAC systems. The module supports both single-ended and differential input configurations, with software-selectable ranges to match common industrial standards. Designed for reliability in continuous operation, it features built-in diagnostics for wire-break detection and overrange indication, reducing troubleshooting time. Below is the detailed technical specification table for this module.
| Parameter |
Specification for 6ES5498-1AA11 |
| Product Type |
Measuring Range Module for SIMATIC S5 |
| Input Channels |
4 differential or 8 single-ended (software-configurable) |
| Input Ranges (Voltage) |
0-10V, ±10V, 0-5V, ±5V (selectable per channel) |
| Input Ranges (Current) |
0-20mA, 4-20mA, ±20mA (with external shunt resistor) |
| Resolution |
12-bit (4096 steps) for all ranges |
| Accuracy |
±0.1% of full scale at 25°C; ±0.3% over temperature range |
| Galvanic Isolation |
500VAC between input channels and backplane bus |
| Common Mode Rejection |
>80dB at 50/60Hz |
| Update Rate |
10ms per channel (all channels scanned sequentially) |
| Power Supply |
5VDC from S5 backplane (typical 200mA) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
10-58Hz, 0.075mm amplitude; 58-150Hz, 1g acceleration per IEC 60068-2-6 |
| Dimensions (WxHxD) |
40mm x 125mm x 120mm (standard S5 module form factor) |
| Weight |
Approx. 200g |
| Connection |
Front-panel 20-pin screw terminal block (included) |
| Compatibility |
SIMATIC S5-90U, S5-95U, S5-100U, S5-115U, S5-135U, S5-155U racks |
| Diagnostics |
Wire-break detection, overrange indication via LED |
| Certifications |
CE, UL 508, CSA C22.2 No. 142 |
