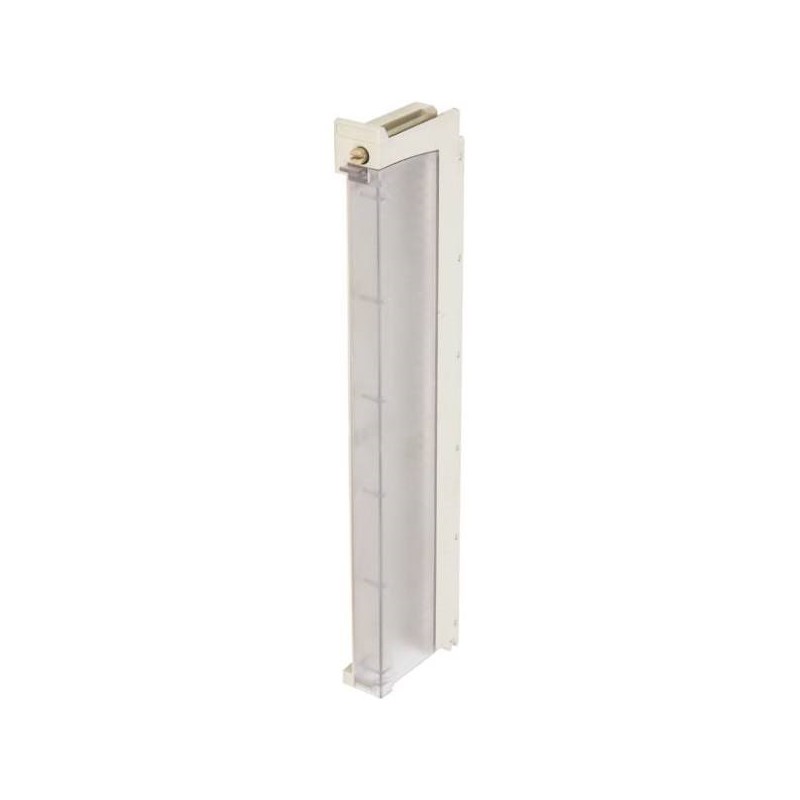

Siemens 6ES5497-4UB31 SIMATIC S5 Front Connector

Series#: Siemens

Product Details

Designed for secure and reliable electrical connections in S5-115U, S5-135U, and S5-155U programmable controllers.
Supports up to 48 screw-type terminals with a robust, industrial-grade plastic housing for harsh environments.
Compatible with standard S5 I/O modules, ensuring seamless integration into legacy automation systems.
Includes integrated cable strain relief and coding keys to prevent misconnection.
Rated for 250V AC/DC and 10A per contact, meeting global safety standards for industrial control panels.
Easy plug-and-play installation with pre-wired options, reducing downtime and maintenance costs.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S5 6ES5497-4UB31 front connector is a critical component for industrial automation systems, specifically designed for the S5 family of programmable logic controllers (PLCs). This connector ensures a robust, low-resistance electrical interface between field devices and the S5 I/O modules, such as those in the 6ES5 48x series. Engineered for long-term reliability in demanding factory floor environments, the 6ES5497-4UB31 features a durable thermoplastic housing with high dielectric strength, accommodating up to 48 screw terminals for flexible wiring configurations. It includes integrated coding keys to prevent mismating and a strain relief mechanism to protect cable connections from vibration and mechanical stress. With a voltage rating of 250V AC/DC and a current rating of 10A per contact, this connector is suitable for both digital and analog signal transmission in control systems. Below are the detailed technical specifications:

Specification	Details for 6ES5497-4UB31
Product Type	Front Connector for SIMATIC S5 I/O Modules
Number of Terminals	48 (screw-type, spring-loaded optional)
Rated Voltage	250V AC/DC (per contact, max)
Rated Current	10A per contact (continuous)
Insulation Resistance	≥ 100 MΩ at 500V DC
Dielectric Strength	2.5 kV for 1 minute (between terminals and housing)
Operating Temperature	-25°C to +60°C (storage: -40°C to +80°C)
Material	Thermoplastic (UL 94 V-0 rated, halogen-free)
Connector Type	Plug-in with locking lever (compatible with S5-115U, 135U, 155U)
Wire Size Range	0.25 mm² to 2.5 mm² (solid or stranded, AWG 24 to 14)
Strain Relief	Integrated cable clamp (max cable diameter 12 mm)
Protection Class	IP20 (finger-safe, suitable for control cabinets)
Standards	IEC 60947-1, UL 508, CSA C22.2 No. 14
Weight	Approx. 0.12 kg (without cables)
Dimensions (H x W x D)	120 mm x 45 mm x 35 mm
Mounting	Snap-on onto S5 module rail
