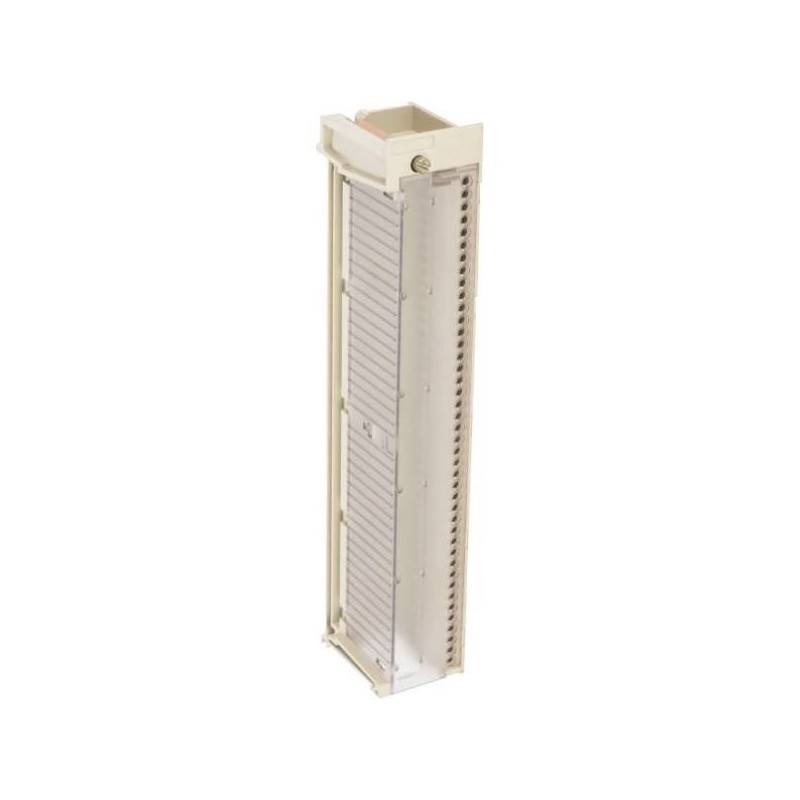

Engineered for the Siemens SIMATIC S5 series, the 6ES5497-4UB22 front connector is a critical interface component for connecting field devices to PLC I/O modules. This connector ensures robust electrical and mechanical connection, supporting up to 20 pins with screw-type terminals for secure wire termination. Designed for industrial environments, it features integrated strain relief and a compact form factor, allowing easy installation in control cabinets. The 6ES5497-4UB22 is fully compatible with standard S5 modules, including digital and analog input/output units, and is ideal for system upgrades or replacements. Its construction meets Siemens’ high reliability standards, ensuring minimal signal loss and long service life in demanding automation applications.
| Parameter |
Specification |
| Product Type |
Front Connector for SIMATIC S5 |
| Model Number |
6ES5497-4UB22 |
| Number of Contacts |
20 |
| Connection Type |
Screw-type terminal block |
| Rated Voltage |
250 V AC/DC (max) |
| Rated Current |
10 A per contact (max) |
| Wire Gauge Range |
0.5 mm² to 2.5 mm² (AWG 20–14) |
| Strain Relief |
Integrated, for cable diameter 6–12 mm |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +80°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Protection Class |
IP20 (for use in control cabinet) |
| Material |
Polyamide (PA) housing, nickel-plated contacts |
| Dimensions (W x H x D) |
Approx. 45 mm x 60 mm x 35 mm |
| Weight |
Approx. 50 g |
| Compatibility |
Siemens SIMATIC S5 modules (e.g., 6ES5 4xx series) |
| Standards |
IEC 61131, UL 508, CSA C22.2 |
| Mounting |
Snaps onto module front face |
| Certification |
CE, cULus, RoHS compliant |
