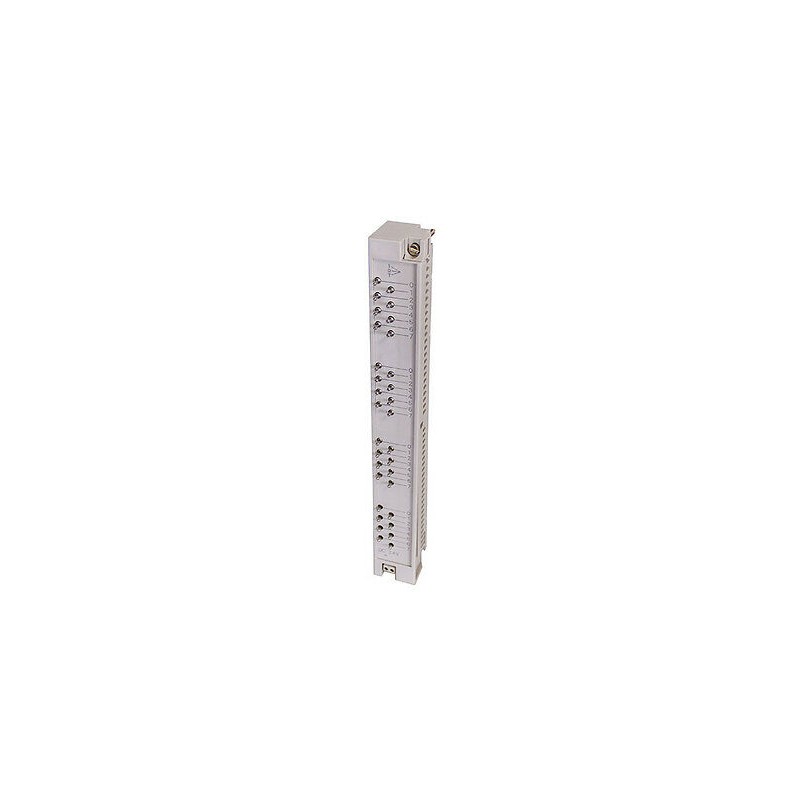

The SIEMENS SIMATIC S5 simulation connector, model 6ES5490-7SA11, is a specialized interface module engineered for diagnostic and simulation tasks within the legacy S5 automation family. It enables engineers to inject test signals, verify logic sequences, and simulate field device behavior without requiring physical sensors or actuators. This connector is essential for pre-commissioning validation and rapid fault isolation in systems such as S5-90U, S5-95U, and S5-115U controllers. Its compact form factor integrates seamlessly into standard S5 racks, providing reliable connectivity for up to 32 simulated I/O points. The unit supports both AC and DC supply models, ensuring flexibility across diverse industrial installations.
| Parameter |
Specification |
| Product Type |
Simulation Connector for SIMATIC S5 |
| Model Number |
6ES5490-7SA11 |
| Compatible Systems |
S5-90U, S5-95U, S5-115U, S5-135U, S5-155U |
| Number of Simulated I/O Points |
32 (configurable as input or output) |
| Connection Type |
Screw terminals, 2.5 mm² max wire cross-section |
| Supply Voltage (AC Models) |
120–240 V AC, 50/60 Hz |
| Supply Voltage (DC Models) |
24 V DC (18–30 V DC range) |
| Current Consumption (Standard Models) |
Typ. 0.15 A at 24 V DC |
| Isolation Voltage |
500 V AC between I/O and backplane |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Protection Class |
IP20 (enclosed, suitable for cabinet mounting) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
| Weight |
Approx. 0.25 kg |
| LED Indicators |
Power (green), Simulation Active (yellow) |
| Certifications |
CE, UL 508, CSA C22.2 No. 142 |
| Shipping Package |
Anti-static bag, individual carton with foam insert |
