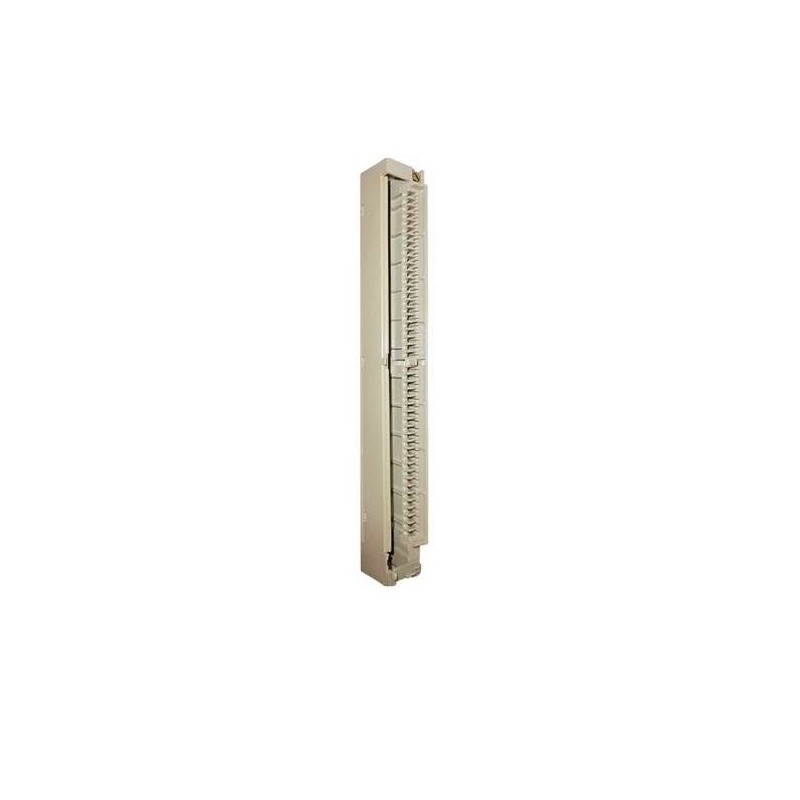

The 6ES5490-7LC11 is a high-quality front connector from the Siemens SIMATIC S5 family, specifically designed for secure and reliable connection of field devices to S5 programmable logic controllers. This 20-pin front connector is engineered for use with S5-115U, S5-135U, and S5-155U series I/O modules, providing a robust interface for digital and analog signals. Its screw-type terminal blocks ensure vibration-proof wiring, while the integrated strain relief and locking mechanism guarantee long-term stability in demanding industrial settings. The connector supports up to 1.5 mm² wire cross-sections, making it suitable for both signal and low-power supply connections. With a rated voltage of 60 V DC and current capacity of 10 A per contact, it meets the rigorous standards of factory automation and process control systems.
| Parameter |
Specification |
| Product Type |
Front Connector for SIMATIC S5 I/O Modules |
| Model Number |
6ES5490-7LC11 |
| Number of Pins |
20 |
| Connection Type |
Screw-type terminals (clamp-type) |
| Wire Cross-Section |
0.25 mm² to 1.5 mm² (AWG 24 to AWG 16) |
| Rated Voltage |
60 V DC (per IEC 60947-5-1) |
| Rated Current |
10 A per contact (max) |
| Insulation Resistance |
≥ 10 MΩ (at 500 V DC) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Protection Rating |
IP20 (when installed in enclosure) |
| Material |
Polyamide (PA), UL 94 V-0 rated |
| Contact Material |
Copper alloy, tin-plated |
| Weight |
Approx. 45 g |
| Compatible Systems |
Siemens SIMATIC S5-115U, S5-135U, S5-155U |
| Standards |
IEC 61131-2, UL 508, CSA C22.2 No. 142 |
| Accessories Included |
Strain relief bracket, mounting screws, labeling strips |
| Packaging |
Anti-static bag, individually boxed |
