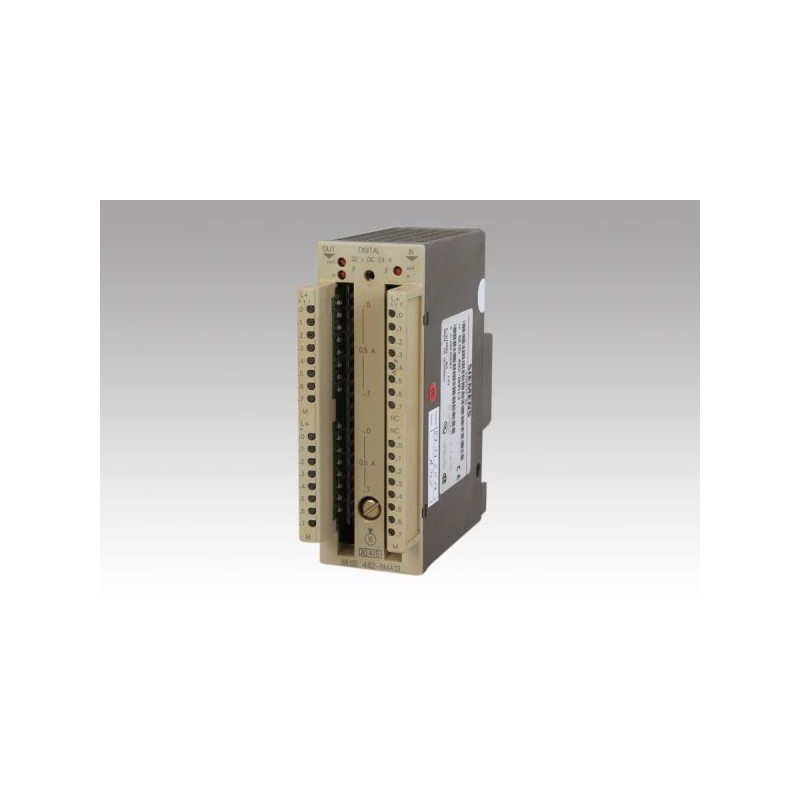

The 6ES5482-8MA13 is a core interface module within the Siemens SIMATIC S5 family, engineered for reliable data exchange between the central processing unit and peripheral devices. This module is a critical component for legacy S5 systems still operating in power plants, manufacturing lines, and process industries worldwide. It features a compact Eurocard form factor (standard 100 mm x 160 mm) and connects via the S5 backplane bus, ensuring deterministic communication with minimal latency. The 6ES5482-8MA13 is designed for 24 V DC operation and supports up to 8 digital I/O channels, with built-in diagnostic LEDs for quick troubleshooting. Its rugged design withstands vibration, temperature extremes, and electrical noise, making it ideal for continuous duty cycles. Below is the detailed specification table for this module.
| Parameter |
Specification |
| Product Type |
SIMATIC S5 Interface Module |
| Model Number |
6ES5482-8MA13 |
| Form Factor |
Eurocard (100 mm x 160 mm) |
| Compatible PLC Systems |
S5-115U, S5-135U, S5-155U |
| Supply Voltage |
24 V DC (20.4 to 28.8 V DC) |
| Current Consumption (max) |
0.5 A at 24 V DC |
| Digital I/O Channels |
8 (configurable as input or output) |
| Input Voltage Range (Digital Inputs) |
15 to 30 V DC (high-level threshold) |
| Output Current per Channel (Digital Outputs) |
0.5 A (resistive load) |
| Isolation Voltage |
500 V DC (between channels and backplane) |
| Backplane Bus Interface |
Standard S5 backplane connector (DIN 41612) |
| Diagnostic Indicators |
LEDs for power, I/O status, and bus fault |
| Operating Temperature |
0 to 60 °C |
| Storage Temperature |
-20 to 80 °C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5 to 9 Hz, 3.5 mm amplitude; 9 to 150 Hz, 1 g |
| Shock Resistance |
15 g, 11 ms half-sine |
| Protection Class |
IP20 (open-type device) |
| Weight |
Approx. 120 g |
| Dimensions (W x H x D) |
100 mm x 160 mm x 25 mm |
| Certifications |
CE, UL, cUL, CSA |
