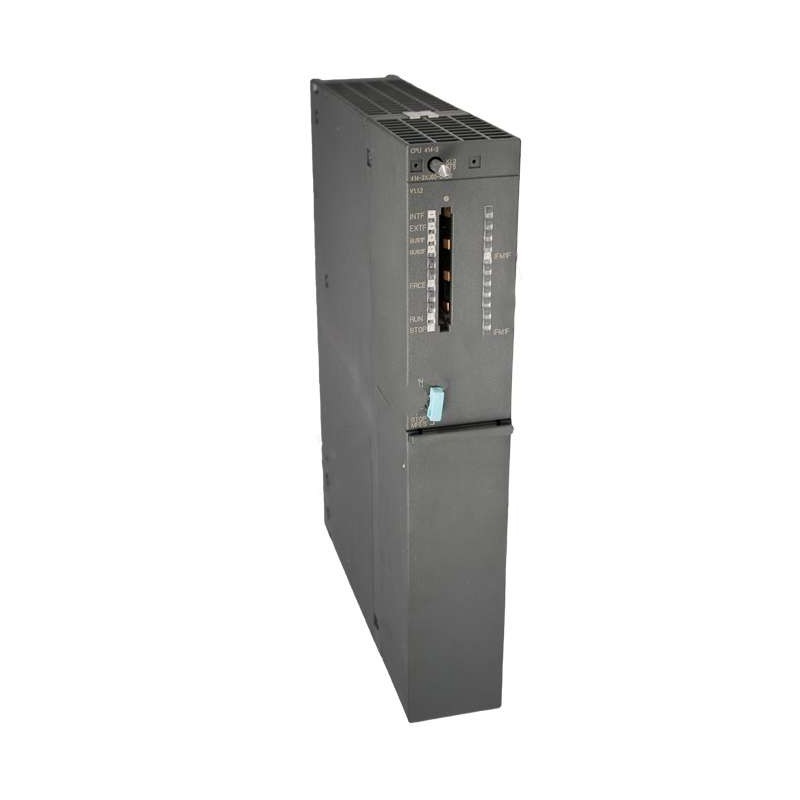

Siemens 6ES7416-3XL00-0AB0 CPU 416-3

Series#: Siemens

Product Details

Siemens SIMATIC S7-400 CPU 416-3 (6ES7416-3XL00-0AB0) – High-performance central processing unit for large-scale automation.
Integrated MPI (12 Mbit/s) and PROFIBUS DP interfaces for seamless field-level and controller communication.
30 MB total working memory (15 MB code / 15 MB data) for complex control tasks and data-intensive applications.
Flexible plug-in IFM slots for expansion with additional communication or special function modules.
Designed for demanding industries including chemical, process, oil & gas, and manufacturing.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens SIMATIC S7-400 CPU 416-3 (6ES7416-3XL00-0AB0) is a robust and highly capable central processing unit engineered for the most demanding industrial automation environments. This CPU delivers exceptional processing power and memory capacity, making it ideal for controlling complex machinery, process lines, and large-scale distributed systems. Its integrated interfaces and modular expandability ensure seamless integration into existing S7-400 racks, providing a reliable backbone for mission-critical operations. Whether deployed in a chemical plant, automotive assembly line, or oil & gas facility, the CPU 416-3 offers the performance and reliability required for continuous, high-speed control.

Specification	Details
Product Type	Central Processing Unit (CPU)
Model	CPU 416-3
Order Number	6ES7416-3XL00-0AB0
Product Family	SIMATIC S7-400
Application Area	Large-scale industrial automation (chemical, process, oil & gas, automotive, manufacturing)
Working Memory	30 MB total (15 MB code, 15 MB data)
Retentive Memory	Integrated; retains data blocks across power cycles
Integrated Interface 1	MPI (Multi-Point Interface) at 12 Mbit/s
Integrated Interface 2	PROFIBUS DP (high-speed distributed I/O communication)
Plug-in IFM Slots	2 slots for additional communication or special function modules
Power Supply	External 24 V DC (tolerance 19.2 V to 28.8 V)
Power Protection	External surge protection recommended
Programming Software	Siemens STEP 7 V5.5 + SP1 or higher
Maximum Number of Data Blocks (DBs)	Limited by available memory; high capacity
Maximum Number of Function Blocks (FBs)	Limited by available memory; high capacity
Maximum Number of Functions (FCs)	Limited by available memory; high capacity
Organization Blocks (OBs)	Standard OBs: OB1 (main cycle), OB10 (warm restart), OB35 (timed interrupt), and others
S7 Counters	Unlimited (constrained by RAM); retentive
S7 Timers	Unlimited (constrained by RAM); retentive
Processing Speed	High-speed; optimized for complex control tasks (specific operation times are application-dependent)
Operating Temperature	0 °C to 60 °C (typical for S7-400 CPUs)
Storage Temperature	-40 °C to 70 °C
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20 (requires enclosure for harsh environments)
Weight	Approximately 1.5 kg (varies with configuration)
Dimensions (W x H x D)	Approximately 50 mm x 290 mm x 210 mm (standard S7-400 format)
Warranty	Standard 12 months (extended options available)
