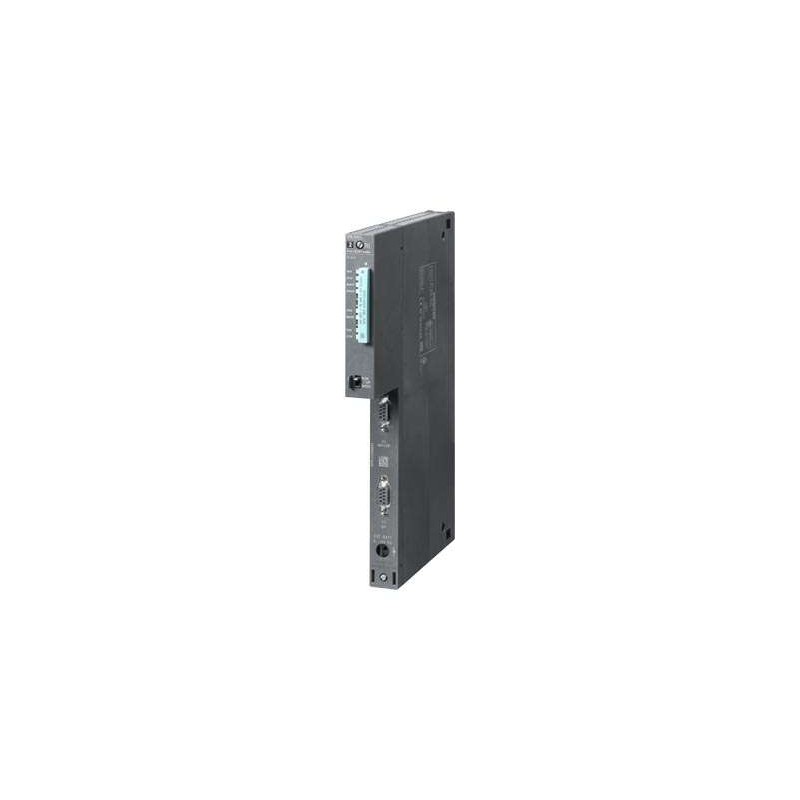

The Siemens SIMATIC S7-400 CPU 414-2, identified by the order number 6ES7414-2XK05-0AB0, is a powerful central processing unit engineered for high-end automation tasks. This CPU excels in environments demanding rapid processing of complex logic, data handling, and communication across multiple networks. With its dual-interface architecture and substantial memory, the CPU 414-2 serves as the backbone for mid-to-large-scale control systems in industries such as chemical processing, electronics manufacturing, and power distribution. The unit is fully compatible with the S7-400 rack system and supports both classic STEP 7 and modern TIA Portal engineering platforms, ensuring seamless integration into existing or new installations.
| Specification |
Details |
| Product Type |
CPU 414-2 |
| Order Number |
6ES7414-2XK05-0AB0 |
| Work Memory |
1 MB total (0.5 MB for code, 0.5 MB for data) |
| Load Memory |
Expandable via external memory card (e.g., SIMATIC Micro Memory Card) |
| Interface 1 |
MPI/DP – up to 12 Mbit/s, supports MPI and PROFIBUS DP master/slave |
| Interface 2 |
PROFIBUS DP – standard DP master/slave communication |
| Power Supply |
24 V DC external (via system power supply module) |
| Processing Speed (Bit Operations) |
Typically 0.1 µs per instruction (approximate for standard operations) |
| Number of Digital Channels (max) |
Up to 1024 (configurable with I/O modules) |
| Number of Analog Channels (max) |
Up to 256 (configurable with I/O modules) |
| Programming Languages |
LAD, FBD, STL, SCL, GRAPH |
| Engineering Software |
STEP 7 V5.x or TIA Portal (version dependent) |
| Data Blocks (DBs) |
Limited by total memory; up to 4096 max (practical) |
| Function Blocks (FBs) |
Limited by total memory; up to 4096 max (practical) |
| Functions (FCs) |
Limited by total memory; up to 4096 max (practical) |
| Organization Blocks (OBs) |
OB1, OB8x (fault), OB100/101/102 (startup), and others |
| Counters (S7) |
Unlimited (limited only by available RAM; retentive supported) |
| Timers (S7) |
Unlimited (limited only by available RAM; retentive supported) |
| Operating Temperature |
0 °C to 60 °C (standard) |
| Storage Temperature |
-40 °C to 70 °C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Protection Class |
IP20 (when installed in rack with cover) |
| Dimensions (W x H x D) |
Approx. 50 x 290 x 210 mm (without connector) |
| Weight |
Approx. 0.9 kg |
| Certifications |
CE, UL, cUL, FM (specific variants) |
