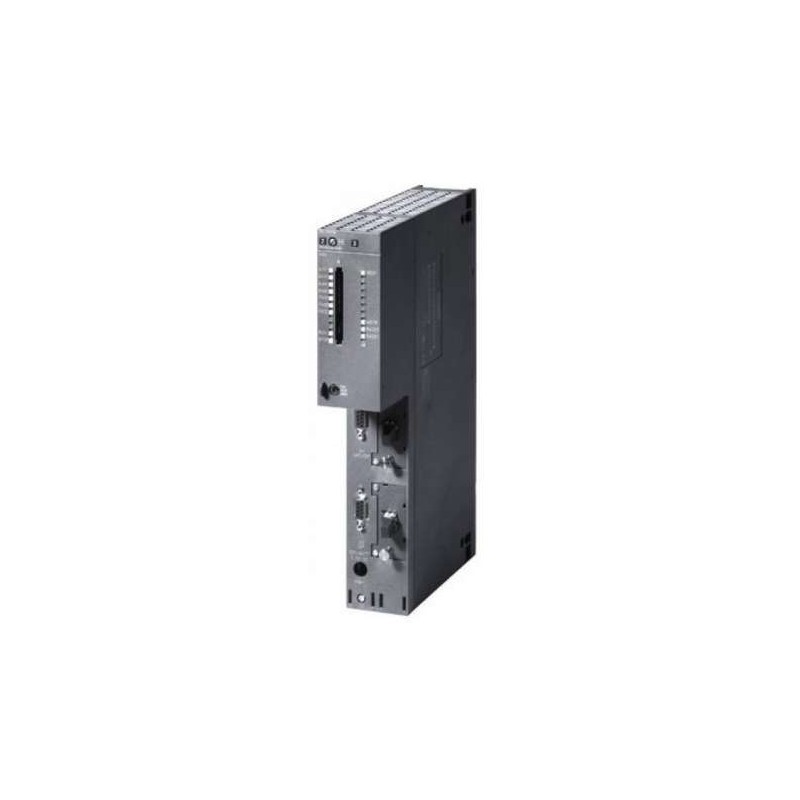

Siemens 6ES7417-4HT14-0AB0 CPU 417H

Series#: Siemens

Product Details

Siemens SIMATIC S7-400 CPU 417H (6ES7417-4HT14-0AB0) – High-availability controller for critical process automation.
True redundant architecture with automatic CPU synchronization and failover for zero-downtime operations.
Massive 30 MB total memory (15 MB program + 15 MB data) for complex, large-scale applications.
Integrated MPI/DP and PROFIBUS DP interfaces plus dual synchronization module slots.
Programmed via STEP 7 V5.5+ SP1 or higher for seamless integration into existing S7-400 systems.
Ideal for chemical, petrochemical, power generation, and other mission-critical industrial environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens SIMATIC S7-400 CPU 417H (6ES7417-4HT14-0AB0) is a flagship high-availability controller engineered for the most demanding redundant automation scenarios. Designed to operate in a fault-tolerant configuration, this CPU delivers uninterrupted process control even during a module failure, making it the backbone of critical infrastructure in chemical, petrochemical, and power generation plants. With a powerful 30 MB memory split evenly between program and data, it handles extensive control logic and large data sets with ease. The CPU features three onboard communication interfaces: one MPI/DP port, one PROFIBUS DP port, and two dedicated slots for synchronization modules, ensuring robust and deterministic data exchange between redundant units. Below is the comprehensive technical specification table for this model.

Parameter	Specification
Product Type	Siemens SIMATIC S7-400H CPU 417H
Order Number (MLFB)	6ES7417-4HT14-0AB0
Application	High-availability automation (redundant systems)
Total Memory	30 MB
Program Memory	15 MB
Data Memory	15 MB
Load Memory	Via MMC (MultiMediaCard) or equivalent storage medium
Retentive Memory	Yes – supports retentive data blocks across power cycles
Integrated Interfaces	1x MPI/DP (RS485), 1x PROFIBUS DP (RS485), 2x Sync module slots
Power Supply	24 V DC external (typical range 20.4 V to 28.8 V)
Power Protection	External protection recommended for supply lines and redundancy
Redundancy Support	Yes – automatic CPU synchronization, failover, and failback
Programming Software	STEP 7 V5.5 + SP1 or higher
Max. Number of Data Blocks (DBs)	Limited by memory; designed for large-scale applications
Max. Number of Function Blocks (FBs)	Limited by memory; supports modular code
Max. Number of Functions (FCs)	Limited by memory; supports reusable code
Organization Blocks (OBs)	Comprehensive set including OB1 (cycle), OBs for interrupts, errors, and system events
S7 Counters	Unlimited (limited by RAM); retentive option available
S7 Timers	Unlimited (limited by RAM); retentive option available
Operation Times (typical)	Bit: ~0.01 µs; Word: ~0.02 µs; Fixed-point arithmetic: ~0.03 µs; Floating-point arithmetic: ~0.05 µs
Diagnostics	Integrated error reporting and diagnostic functions
Environmental Temperature (operation)	0 °C to +60 °C
Environmental Temperature (storage)	-40 °C to +85 °C
Dimensions (W x H x D)	Approx. 50 x 290 x 210 mm (module only)
Weight	Approx. 0.7 kg
Shipping	100% Original and New – ready for immediate global shipment

Note: All specifications are based on publicly available data and may be subject to change. For exact details, always refer to the latest Siemens documentation.
