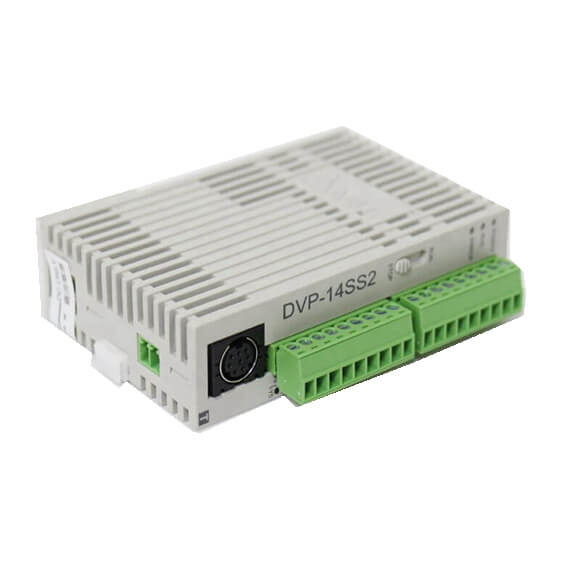

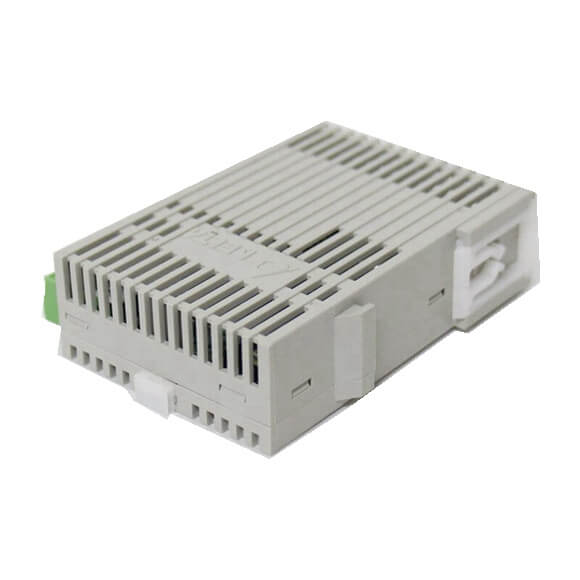

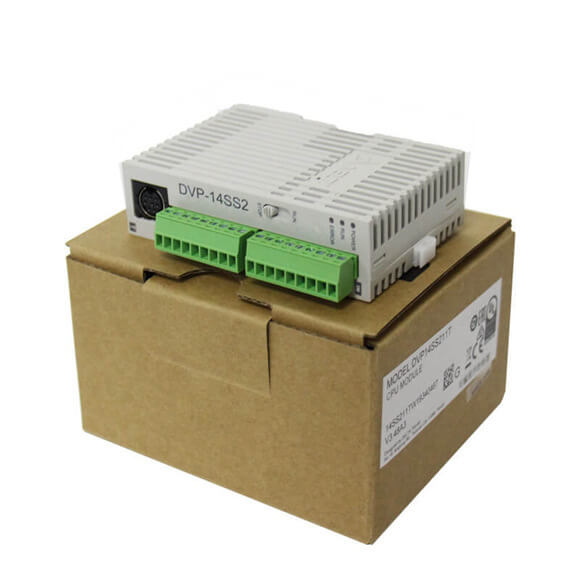

Delta DVP-Slim Expansion Module

Series#: Delta

Product Details

Model: DELTA PLC CONTROLLER CPU DVP-SLIM EXPANSION MODULE – High-performance slim-form-factor PLC for distributed control and I/O expansion.
Offers up to 16 digital inputs and 12 digital outputs (Relay/Transistor/PNP options) in a compact DIN-rail mountable package.
Supports 24 VDC power supply with built-in communication ports (RS-232/RS-485) for seamless integration into automation networks.
Ideal for machine automation, packaging, material handling, and HVAC systems where space is critical.
Compatible with Delta DVP-Slim series expansion modules for flexible I/O and analog signal extension.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA PLC CONTROLLER CPU DVP-SLIM EXPANSION MODULE is a versatile, ultra-compact programmable logic controller designed for high-speed control and precise I/O management in demanding industrial environments. Built on the proven DVP-Slim architecture, this CPU module integrates a powerful 32-bit ARM-based processor with a rich set of built-in functions, including high-speed counters, pulse output, and PID control. Its slim profile (approximately 60mm width) minimizes cabinet space while offering maximum flexibility through modular expansion. The unit supports both relay and transistor output types, with sink/source configurations, making it suitable for a wide range of applications from simple relay logic to complex motion control. With native support for Modbus RTU/ASCII and Delta’s proprietary communication protocol, it easily connects to HMI, VFD, and SCADA systems. Each unit is rigorously tested for reliability and comes with full certification for CE, UL, and RoHS compliance.

Parameter	Specification
Model Series	DVP-Slim (SV2, SS2, SA2, SE, SX2)
Power Supply	24 VDC (±10%), 300 mA (typical)
Digital Inputs	8–16 (depending on model, sink/source selectable)
Digital Outputs	4–12 (Relay: 2A/250VAC; Transistor: 0.5A/24VDC)
Analog Inputs (optional)	2–4 (0–10V, 4–20mA, 12-bit resolution)
Analog Outputs (optional)	2 (0–10V, 4–20mA, 12-bit resolution)
Program Memory	16K steps (EEPROM)
High-Speed Counter	Up to 4 channels, 200 kHz (single-phase)
Pulse Output	2 channels, 10 kHz (transistor models)
Communication Ports	1x RS-232 (programming), 1x RS-485 (Modbus RTU/ASCII)
Expansion Capability	Up to 8 modules (digital, analog, temperature, positioning)
Dimensions (WxHxD)	60 x 90 x 60 mm (typical for 28-point models)
Operating Temperature	0°C to +55°C (32°F to 131°F)
Protection Rating	IP20 (NEMA 1)
Certifications	CE, UL, RoHS

High-Speed Processing: 0.24 µs per basic instruction – ensures deterministic control for fast machine cycles.
Built-in PID & Motion Functions: Supports auto-tuning PID, positioning, and electronic cam control without external modules.
Modular Expansion via DVP-SLIM Bus: Add up to 8 expansion units for mixed I/O, analog, temperature, and specialty modules.
Integrated Communication: Native RS-232 for programming and RS-485 for network connectivity (Modbus master/slave).
Compact DIN-Rail Mount: Space-saving design (60mm width) with removable terminal blocks for easy wiring and maintenance.
Reliable Operation: Wide input voltage tolerance (20.4–26.4 VDC), surge protection, and EMC compliance for harsh industrial noise environments.
