Omron CJ2H-CPU64-EIP CPU Unit

Series#: Omron

Product Details

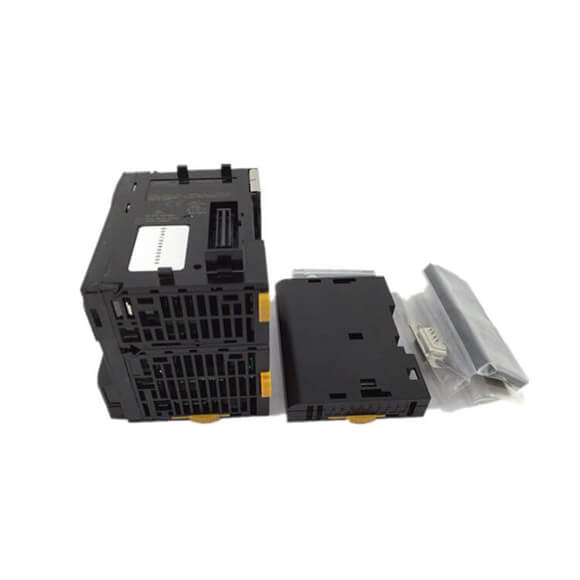

OMRON CJ2H-CPU64-EIP / CPU65-EIP / CPU66-EIP – High-performance CJ-Series PLC CPU Units with built-in EtherNet/IP.
Scalable user memory from 50K steps (CPU64-EIP) up to 150K steps (CPU66-EIP) for flexible application demands.
Ultra-fast execution: Basic instructions in 0.016 µs min., Special instructions in 0.048 µs min.
Rich I/O capacity: 2,560 I/O bits and support for up to 40 Units total (CPU + Expansion Racks).
Advanced interrupt handling: Scheduled, I/O, and external interrupts with high-speed interrupt function option.
Robust memory architecture: DM Area up to 32K words, EM Area up to 25 banks, plus large timer/counter arrays.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The OMRON CJ2H-CPU64-EIP, CJ2H-CPU65-EIP, and CJ2H-CPU66-EIP are flagship CPU Units of the CJ-Series, designed for demanding industrial automation environments. These controllers integrate a powerful EtherNet/IP port for seamless network connectivity, enabling tag data links and high-speed communication. With a compact form factor and exceptional processing speed, they are ideal for mid-to-large-scale control systems requiring precise motion, logic, and data management. The CJ2H-CPU66-EIP, in particular, offers 150K steps of user memory, making it suitable for complex programs with extensive data handling.

Items	CJ2H-CPU64-EIP	CJ2H-CPU65-EIP	CJ2H-CPU66-EIP
User Memory	50K steps	100K steps	150K steps
I/O Bits	2,560 bits (Normal Mode: 200 ms; add 100 ms + transferred words × (0.33 ms or 0.87 ms) when using tag data links with EtherNet/IP; *High-speed interrupt function applies)
Overhead Processing Time	Basic: 0.016 µs min.; Special: 0.048 µs min.
Interrupt Task Startup Time	26 ms or 17 ms (30 ms in unit Ver.1.0); Return to cyclic task: 11 ms or 8 ms (15 ms in unit Ver.1.0)
I/O Interrupts & External Interrupts	*High-speed interrupt function supported
Scheduled Interrupts	Startup: 22 ms or 13 ms (27 ms in unit Ver.1.0); Return: 11 ms or 8 ms (15 ms in unit Ver.1.0)
Max. Connectable Units per CPU Rack	10 Units max.; Total per PLC: 40 Units max.
Max. Expansion Racks	3 max.
I/O Area	2,560 bits (160 words): CIO 0000 to CIO 0159
Link Area	3,200 bits (200 words): CIO 1000 to CIO 1199
Synchronous Data Refresh Area	1,536 bits (96 words): CIO 1200 to CIO 1295
CPU Bus Unit Area	6,400 bits (400 words): CIO 1500 to CIO 1899
Special I/O Unit Area	15,360 bits (960 words): CIO 2000 to CIO 2959
DeviceNet Area	9,600 bits (600 words): CIO 3200 to CIO 3799; 3,200 bits (200 words): CIO 1300 to CIO 1499
Internal I/O Area	37,504 bits (2,344 words): CIO 3800 to CIO 6143 (not for external I/O)
Work Area	8,192 bits (512 words): W000 to W511 (not for external I/O)
Holding Area	8,192 bits (512 words): H000 to H511 (maintains status on power OFF); H512 to H1535 for function blocks only
Auxiliary Area	Read-only: 31,744 bits (1,984 words) incl. A0 to A447; Read/write: 16,384 bits (1,024 words) A448 to A1471
Temporary Area	16 bits: TR0 to TR15
Timer Area	4,096 timers (T0000 to T4095, separate from counters)
Counter Area	4,096 counters (C0000 to C4095, separate from timers)
DM Area	32K words; D20000-D29599 for Special I/O Units; D30000-D31599 for CPU Bus Units
EM Area	32K words/bank × 25 banks max. (E00_00000 to E18_32767); bits addressable; force-set/reset enabled (unit version 1.2+)
Index Registers	IR0 to IR15 (for indirect addressing; task-specific or shared)
Cyclic Task Flag Area	128 flags
Memory Card	128 MB, 256 MB, or 512 MB (for program/data backup)
Operating Modes	PROGRAM, MONITOR, RUN
Execution Mode	Normal Mode (with high-speed interrupt option)

Built-in EtherNet/IP Port: Supports tag data links, enabling seamless integration with other EtherNet/IP devices and controllers.
High-Speed Interrupt Function: Optional feature that reduces interrupt task startup and return times for time-critical applications.
Rich Memory Architecture: DM Area (32K words) and EM Area (up to 25 banks × 32K words) for extensive data storage and recipe management.
Task Management: Supports cyclic tasks, interrupt tasks (scheduled, I/O, external), and up to 128 cyclic task flags for efficient program organization.
Online Editing Capability: MONITOR mode allows program modifications without stopping the process, enhancing productivity.
Compact Design: Fits into standard CJ-Series racks, minimizing panel space while maximizing I/O and communication capacity.
Global Compliance: Designed to meet international standards for industrial automation, including CE and UL certifications.
Reliable Power Management: Holding Area retains critical data during power cycles, ensuring process continuity.
