Omron PLC CJ-Series Output Unit CJ1W-OD231

Series#: Omron

Product Details

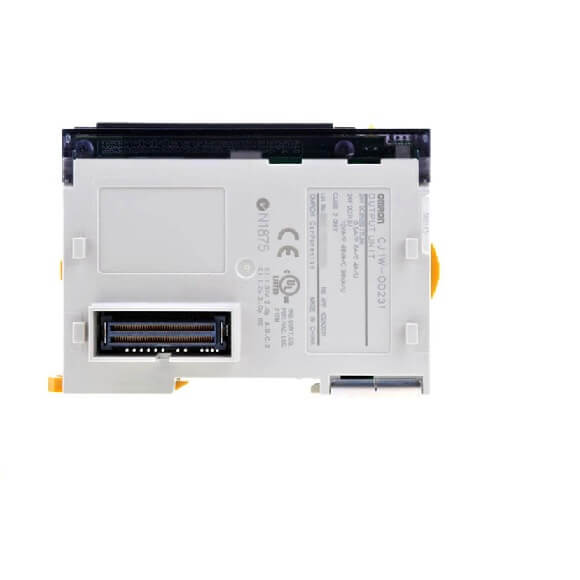

OMRON CJ-Series Output Units CJ1W-OD231/OD233/OD234 – High-density digital output modules for advanced industrial automation.
Offers 32-point (CJ1W-OD231/OD233) or 64-point (CJ1W-OD234) NPN open-collector outputs for versatile control.
Designed for Omron CJ1/CJ2 PLC series, ensuring seamless integration and high-speed switching up to 10 kHz.
Compact form factor with robust isolation (photocoupler per point) for reliable operation in harsh environments.
Supports 24 VDC input power with 0.3 A per output (maximum 2.4 A per common), ideal for solenoid valves, relays, and indicators.
Includes diagnostic LED indicators per channel for real-time status monitoring and rapid troubleshooting.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Omron CJ-series output units, specifically the CJ1W-OD231, CJ1W-OD233, and CJ1W-OD234, are engineered to deliver precise and reliable digital output control in demanding industrial environments. These modules are part of the CJ1 family, offering high-density NPN open-collector outputs with fast switching capabilities, making them ideal for driving actuators, solenoids, and indicator arrays. The CJ1W-OD231 and CJ1W-OD233 provide 32 output points, while the CJ1W-OD234 expands to 64 points, each with individual photocoupler isolation for enhanced noise immunity. With a rated output voltage of 24 VDC and a maximum load current of 0.3 A per point, these units ensure robust performance in assembly lines, packaging machinery, and process control systems. Their compact design and compatibility with Omron’s CX-Programmer software simplify configuration and maintenance, reducing downtime in critical operations.

Parameter	CJ1W-OD231	CJ1W-OD233	CJ1W-OD234
Output Points	32 points	32 points	64 points
Output Type	NPN open-collector (sinking)	NPN open-collector (sinking)	NPN open-collector (sinking)
Rated Output Voltage	24 VDC (20.4–26.4 VDC)	24 VDC (20.4–26.4 VDC)	24 VDC (20.4–26.4 VDC)
Maximum Load Current per Output	0.3 A	0.3 A	0.3 A
Maximum Load Current per Common	2.4 A (8 points/common)	2.4 A (8 points/common)	2.4 A (8 points/common)
Switching Frequency (Resistive Load)	10 kHz max	10 kHz max	10 kHz max
Isolation Method	Photocoupler per point	Photocoupler per point	Photocoupler per point
Power Supply Voltage	24 VDC (via I/O bus)	24 VDC (via I/O bus)	24 VDC (via I/O bus)
Current Consumption (Internal)	0.1 A (5 VDC)	0.1 A (5 VDC)	0.15 A (5 VDC)
Indicators	LED per channel (green)	LED per channel (green)	LED per channel (green)
Operating Temperature	0°C to 55°C	0°C to 55°C	0°C to 55°C
Storage Temperature	-20°C to 75°C	-20°C to 75°C	-20°C to 75°C
Dimensions (W x H x D)	30 x 90 x 65 mm	30 x 90 x 65 mm	30 x 90 x 65 mm
Weight	Approx. 120 g	Approx. 120 g	Approx. 150 g
Connection Method	Removable terminal block (40-pin)	Removable terminal block (40-pin)	Removable terminal block (40-pin)
Protection Circuit	Overcurrent, surge suppression	Overcurrent, surge suppression	Overcurrent, surge suppression
Compatible PLC Series	CJ1, CJ2	CJ1, CJ2	CJ1, CJ2

Output Configuration: Each point provides NPN sinking output with a maximum of 0.3 A at 24 VDC, suitable for direct drive of low-power loads like relays and LEDs.
High-Speed Switching: Supports up to 10 kHz switching frequency for precise control in high-speed applications such as sorting and indexing.
Isolation and Protection: Photocoupler isolation per output ensures electrical separation between the PLC and field devices, with built-in overcurrent and surge protection for enhanced durability.
Diagnostic Capabilities: Green LED indicators on each channel allow immediate visual verification of output status, simplifying system debugging and maintenance.
Power and Connectivity: Operates on 5 VDC internal bus power with low current draw (0.1–0.15 A), and uses a 40-pin removable terminal block for secure wiring in control panels.
Environmental Resilience: Rated for 0°C to 55°C operating temperature and 10% to 90% non-condensing humidity, ensuring reliable performance in typical industrial settings.
