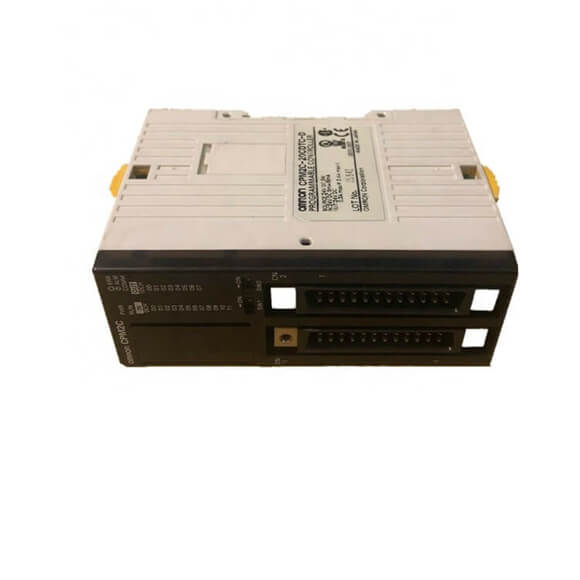

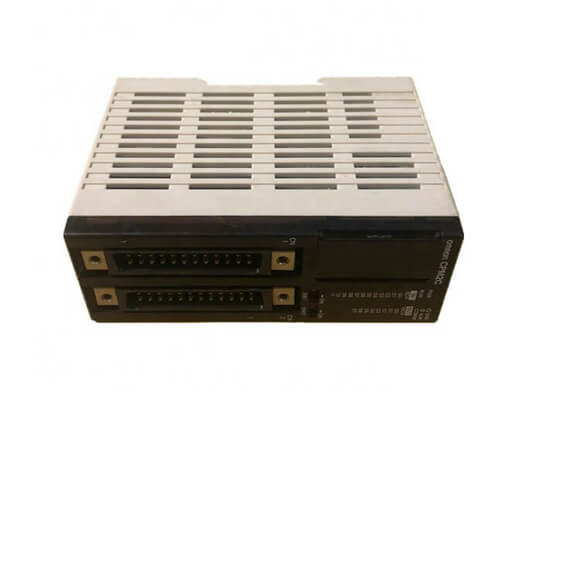

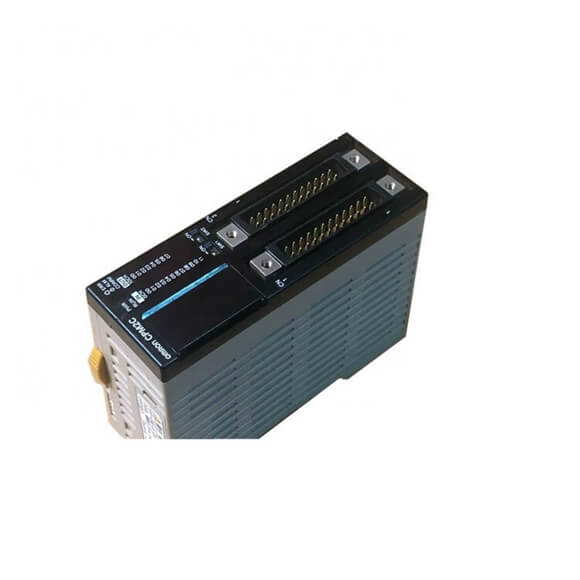

The Omron CPM2C-10CDT1M-D and CPM2C-10C1DT1M-D are part of the renowned CPM2C series of compact PLC CPU units, designed for demanding control applications requiring 10 I/O points with transistor outputs. These units deliver exceptional reliability and precision, operating on a 24 V DC supply with a wide tolerance range. Their connector-based I/O interface simplifies installation and maintenance, while the low power consumption of 3 W makes them an energy-conscious choice for modern automation lines. Built to withstand harsh industrial conditions, they meet stringent IEC standards for noise immunity, vibration, and shock, ensuring uninterrupted performance in critical processes.
| Item |
CPM2C-10CDT1M-D / CPM2C-10C1DT1M-D |
| Supply voltage |
24 V DC |
| Operating voltage range |
20.4 to 26.4 V DC |
| Power consumption |
3 W |
| Inrush current |
25 A max. |
| Insulation resistance |
20 MΩ min. (at 500 V DC) between isolated circuits |
| Dielectric strength |
2,300 V AC for 1 min (between isolated circuits) |
| Noise immunity |
Conforms to IEC61000-4-4, 2 kV (power lines) |
| Vibration resistance |
Conforming to IEC 60068-2-6, JIS C0040: 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 80 minutes each |
| Shock resistance |
Conforming to IEC 60068-2-27, JIS C0041: 147 m/s² three times each in X, Y, and Z directions |
| Ambient temperature |
Operating: 0° to 55° C; Storage: –20° to 75° C (except for battery) |
| Humidity |
10% to 90% (with no condensation) |
| Atmosphere |
Must be free from corrosive gas |
| I/O interface |
Connector |
| Power interrupt time |
2 ms min. |
| Weight |
200 g max. |
- I/O Configuration: 10 I/O points with transistor outputs (sink/source type), providing fast switching for high-speed control tasks.
- Expansion Capability: Supports a wide range of expansion I/O units (relay, transistor, analog, temperature sensor, CompoBus/S) to scale system I/O up to 32 points or more.
- Communication Options: Compatible with Peripheral/RS232C Adapter Unit and RS422/RS232C Adapter Unit for flexible connectivity to HMIs, SCADA, or other controllers.
- Environmental Durability: Designed for operation in 0° to 55°C ambient temperatures and 10% to 90% humidity, with no condensation, ensuring reliability in varied factory conditions.
- Compact Form Factor: Lightweight at just 200 g, the unit fits easily into space-constrained enclosures without compromising performance.
