Omron Compact PLC CPU Unit CPM2C-20CDT1M-D

Series#: Omron

Product Details

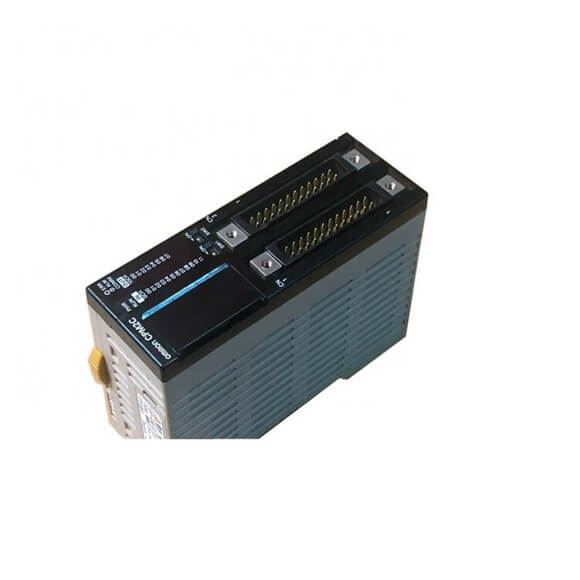

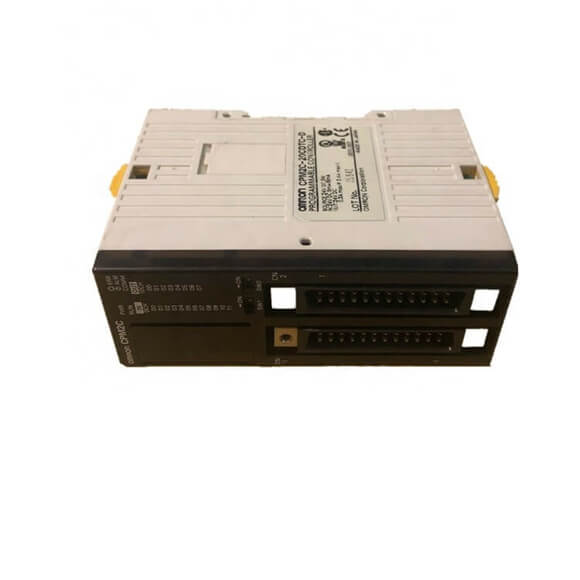

Model: Omron CPM2C-20CDT1M-D & CPM2C-20C1DT1M-D – Compact PLC CPU Units with 20 I/O points.
Features transistor outputs with connector interface for high-speed, reliable switching.
Wide operating voltage range: 20.4 to 26.4 V DC, with low power consumption of only 3 W.
Robust industrial design: withstands 2,300 V AC dielectric strength and 2 kV noise immunity per IEC standards.
Compact form factor (max 200 g) ideal for space-constrained automation applications.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Omron CPM2C-20CDT1M-D and CPM2C-20C1DT1M-D are high-performance compact PLC CPU units within the CPM2C series, designed for precise control in distributed automation systems. These 20 I/O point units feature transistor outputs via a connector interface, ensuring fast and durable operation in demanding environments. With a 24 V DC supply and a wide tolerance range, they deliver consistent performance while consuming only 3 W of power. Engineered to meet stringent industrial standards, these CPUs offer exceptional noise immunity, vibration resistance, and shock resistance, making them ideal for machine control, packaging, and material handling applications.

Item	Specification (CPM2C-20CDT1M-D / CPM2C-20C1DT1M-D)
Supply voltage	24 V DC
Operating voltage range	20.4 to 26.4 V DC
Power consumption	3 W
Inrush current	25 A max.
Insulation resistance	20 MΩ min. (at 500 V DC) between isolated circuits
Dielectric strength	2,300 V AC for 1 min (between isolated circuits)
Noise immunity	Conforms to IEC61000-4-4, 2 kV (power lines)
Vibration resistance	Conforming to IEC 60068-2-6, JIS C0040: 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 80 minutes each
Shock resistance	Conforming to IEC 60068-2-27, JIS C0041: 147 m/s² three times each in X, Y, and Z directions
Ambient temperature	Operating: 0° to 55° C; Storage: –20° to 75° C (except for battery)
Humidity	10% to 90% (with no condensation)
Atmosphere	Must be free from corrosive gas
I/O interface	Connector
Power interrupt time	2 ms min.
Weight	200 g max.

Transistor Outputs: High-speed switching with connector interface for compact wiring.
Expansion Capability: Supports a wide range of expansion I/O units (up to 32 I/O points) and special function units like Analog I/O, Temperature Sensor, and CompoBus/S I/O Link.
Environmental Resilience: Operates reliably in 0° to 55°C with 10% to 90% humidity, meeting IEC 60068-2-6 and IEC 60068-2-27 standards.
Power Supply Flexibility: 24 V DC input with 20.4 to 26.4 V DC tolerance and 3 W low power consumption.
Weight and Dimensions: Ultra-lightweight at 200 g max, ideal for panel or DIN-rail mounting in tight spaces.
