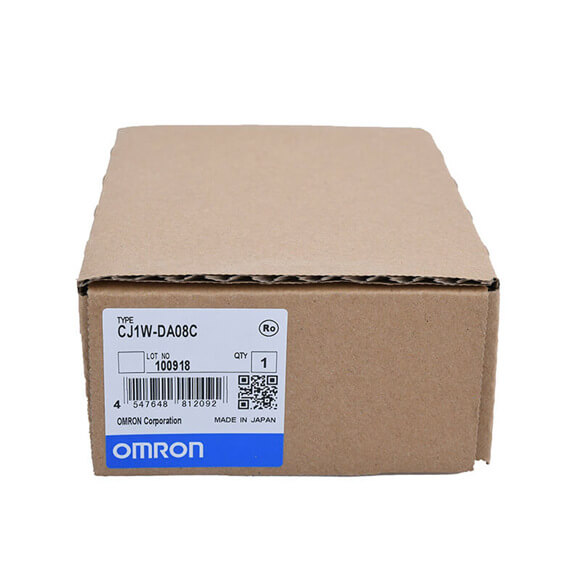

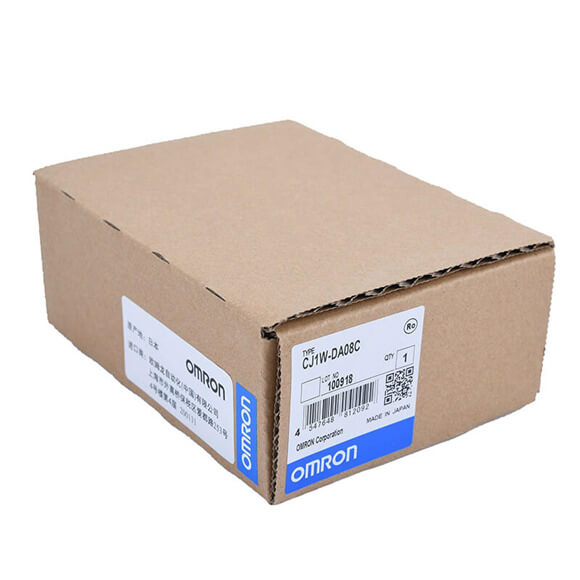

The Omron PLC CP1H CPU Analog Output Units, including the CJ1W-DA08C, CJ1W-DA041, and CJ1W-DA021, deliver high-accuracy analog signal generation for demanding automation applications. These modules are engineered to convert digital commands into stable analog outputs, supporting voltage and current ranges essential for process control, motion systems, and instrumentation. With resolutions up to 1/8,000 and ultra-fast conversion cycles, they ensure real-time responsiveness and minimal latency in closed-loop systems.
| Model |
Output Channels |
Output Range |
Resolution |
Conversion Speed |
| CJ1W-DA08C |
8 |
4 to 20 mA |
1/4,000 (1/8,000 selectable) |
1 ms/point max (250 µs/point selectable) |
| CJ1W-DA041 |
4 |
1-5V, 0-5V, 0-10V, -10 to 10V, 4-20 mA |
1/4,000 |
1 ms/point max |
| CJ1W-DA021 |
2 |
1-5V, 0-5V, 0-10V, -10 to 10V, 4-20 mA |
1/4,000 |
1 ms/point max |
- Output Configuration: Each unit supports independent voltage or current outputs per channel; CJ1W-DA08C is dedicated current output (4-20 mA), while CJ1W-DA041 and CJ1W-DA021 provide both voltage and current ranges.
- Resolution & Speed: All models feature standard 1/4,000 resolution; CJ1W-DA08C offers selectable 1/8,000 resolution with 250 µs conversion speed for high-speed loops.
- Isolation & Protection: Channel-to-channel and output-to-system isolation ensure noise immunity; built-in overcurrent and short-circuit protection for robust industrial use.
- Compatibility: Directly mounts on CJ-series backplane; fully supported by Omron CX-Programmer and Sysmac Studio for simplified configuration and diagnostics.
- Environmental Ratings: Operating temperature 0°C to 55°C; storage -20°C to 75°C; vibration and shock resistant per IEC 60068-2-6 and 60068-2-27.
