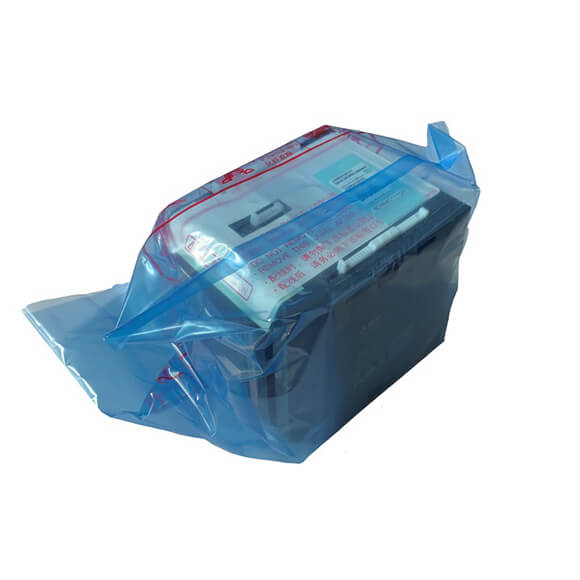

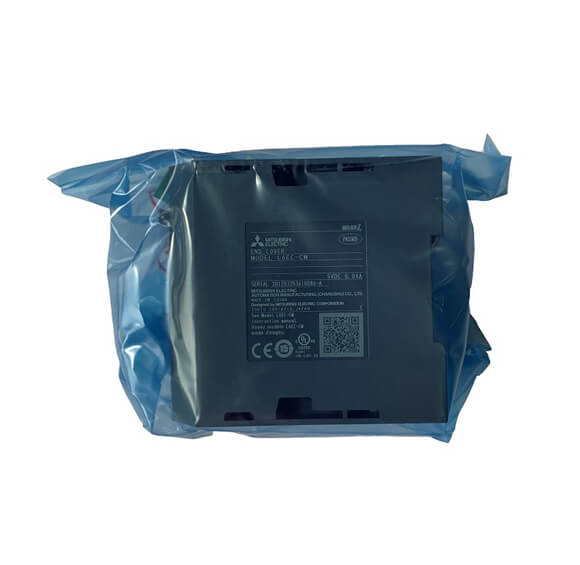

Mitsubishi L6DSPU-C-CM CPU PLC Module

Series#: Mitsubishi

Product Details

Mitsubishi MELSEC-L series CPU PLC module: L6DSPU-C-CM, L6ADP-R2-CM, L6ADP-R4-CM – engineered for high-speed, scalable automation.
Ultra-fast processing with 9.5ns basic LD instruction speed for real-time control.
Expansive I/O capacity up to 4096 points, supporting complex system architectures.
Built-in USB/Ethernet ports for seamless programming and network integration.
Robust program memory of 60K steps, ideal for demanding applications.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi MELSEC-L series CPU PLC modules, including models L6DSPU-C-CM, L6ADP-R2-CM, and L6ADP-R4-CM, represent a pinnacle of industrial automation performance. Designed for mid-to-large-scale control systems, these units deliver lightning-fast logic execution with 9.5ns per LD instruction, ensuring deterministic response in critical processes. The L6DSPU-C-CM features a sink-type output configuration, while the L6ADP-R2-CM and L6ADP-R4-CM provide analog input expansion for versatile signal acquisition. Each module is 100% factory-tested and certified for seamless integration into MELSEC-L racks, offering robust connectivity via USB and Ethernet ports. With support for up to 4096 I/O points and 60K steps of program capacity, these modules excel in applications ranging from packaging to material handling.

Model	General-purpose output	Number of I/O points	Program capacity	Basic operation processing speed (LD instruction)	Peripheral connection ports	Built-in network
L02SCPU	Sink type	1024 points	20K steps	60ns	USB/RS-232	—
L02CPU	—	—	—	40ns	USB/Ethernet	—
L06CPU	—	4096 points	60K steps	9.5ns	—	—
L26CPU	—	—	260K steps	—	—	—
L26CPU-BT	—	—	—	—	—	—
L02SCPU-P	Source type	1024 points	20K steps	60ns	USB/RS-232	—
L02CPU-P	—	—	—	40ns	USB/Ethernet	—
L06CPU-P	—	4096 points	60K steps	9.5ns	—	—
L26CPU-P	—	—	260K steps	—	—	—
L26CPU-PBT	—	—	—	—	—	—

Processing Power: The L6DSPU-C-CM achieves 9.5ns per LD instruction, enabling high-speed logic execution for time-sensitive operations.
I/O Expansion: Supports up to 4096 I/O points, with L6ADP-R2-CM and L6ADP-R4-CM providing 2-channel and 4-channel analog input modules respectively for precise signal conditioning.
Memory Capacity: 60K steps program memory allows complex control sequences without external storage.
Connectivity: Dual USB and Ethernet ports facilitate rapid programming, diagnostics, and SCADA integration.
Output Configuration: Sink-type general-purpose output on L6DSPU-C-CM ensures compatibility with standard industrial loads.
Durability: Industrial-grade components rated for extended temperature ranges and vibration resistance.
