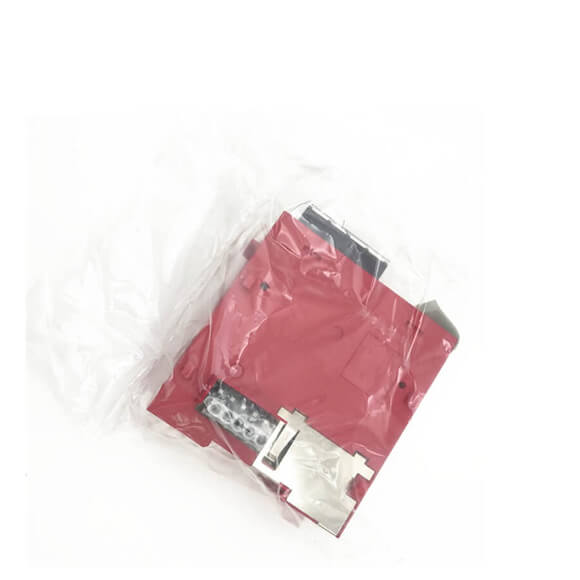

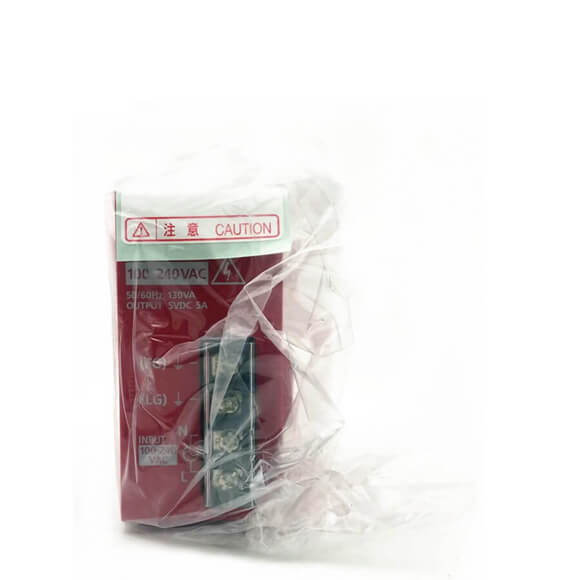

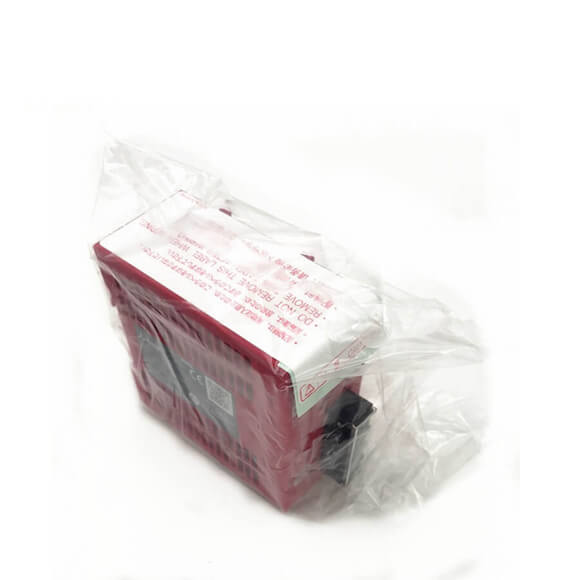

Mitsubishi L61P-CM Power Supply Module

Series#: Mitsubishi

Product Details

MITSUBISHI MELSEC-L L61P-CM, L63P-CM, L63SP-CM – High-performance power supply modules designed for the MELSEC-L series PLC systems.
Compact design for space-saving installation in control cabinets, ideal for distributed automation.
Wide input voltage range (100-240V AC) with high efficiency and low heat dissipation.
Robust protection features including overcurrent, overvoltage, and short-circuit safeguards.
Seamless integration with MELSEC-L CPU modules and I/O racks for reliable system power.
Extended life cycle with industrial-grade components for 24/7 continuous operation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The MITSUBISHI MELSEC-L POWER SUPPLY MODULE L61P-CM, L63P-CM, and L63SP-CM are essential components for powering MELSEC-L series programmable logic controllers in demanding industrial environments. These modules deliver stable DC output to the base unit and expansion racks, ensuring uninterrupted operation of CPU, I/O, and communication modules. With a focus on energy efficiency and reliability, they are engineered for applications ranging from manufacturing lines to process control systems.

Parameter	L61P-CM	L63P-CM	L63SP-CM
Input Voltage	100-240V AC (50/60Hz)	100-240V AC (50/60Hz)	100-240V AC (50/60Hz)
Output Voltage	5V DC	5V DC	5V DC
Output Current	2.0A	3.0A	3.0A (with enhanced surge protection)
Rated Power	10W	15W	15W
Efficiency (Typical)	≥85%	≥87%	≥88%
Ripple & Noise	≤50mVp-p	≤50mVp-p	≤40mVp-p
Overcurrent Protection	Yes (auto-recovery)	Yes (auto-recovery)	Yes (auto-recovery)
Overvoltage Protection	Yes (latch type)	Yes (latch type)	Yes (latch type)
Short-Circuit Protection	Yes	Yes	Yes
Operating Temperature	0°C to 55°C	0°C to 55°C	-10°C to 60°C
Storage Temperature	-25°C to 75°C	-25°C to 75°C	-25°C to 85°C
Relative Humidity	5% to 95% (non-condensing)	5% to 95% (non-condensing)	5% to 95% (non-condensing)
Weight	Approx. 0.2 kg	Approx. 0.25 kg	Approx. 0.3 kg
Dimensions (W x H x D)	25 x 90 x 80 mm	25 x 90 x 80 mm	25 x 90 x 95 mm
Compliance	CE, UL, cUL	CE, UL, cUL	CE, UL, cUL, RoHS

Input Range: All three modules accept universal AC input (100-240V) with automatic frequency adjustment (50/60Hz), simplifying global deployment.
Output Stability: Precision-regulated 5V DC output with less than 1% load regulation, ensuring stable power to sensitive PLC logic.
Protection Systems: Integrated overcurrent protection with auto-recovery prevents damage from transient faults; overvoltage latch protection safeguards connected modules.
Thermal Management: Convection-cooled design with no moving parts for silent operation and reduced maintenance in dusty environments.
Mounting Options: Direct DIN rail mounting compatible with MELSEC-L base units, allowing easy installation and replacement in tight spaces.
LED Indicators: Front-panel green LED for power status and red LED for fault indication, providing immediate visual diagnostics.
Isolation: 1500V AC input-to-output isolation for enhanced safety in industrial electrical environments.
L63SP-CM Advantage: Enhanced surge protection and wider temperature range (-10°C to 60°C) make it ideal for harsh or outdoor applications.
