Mitsubishi FX3U-64MR-ES/A PLC Controller Module

Series#: Mitsubishi

Product Details

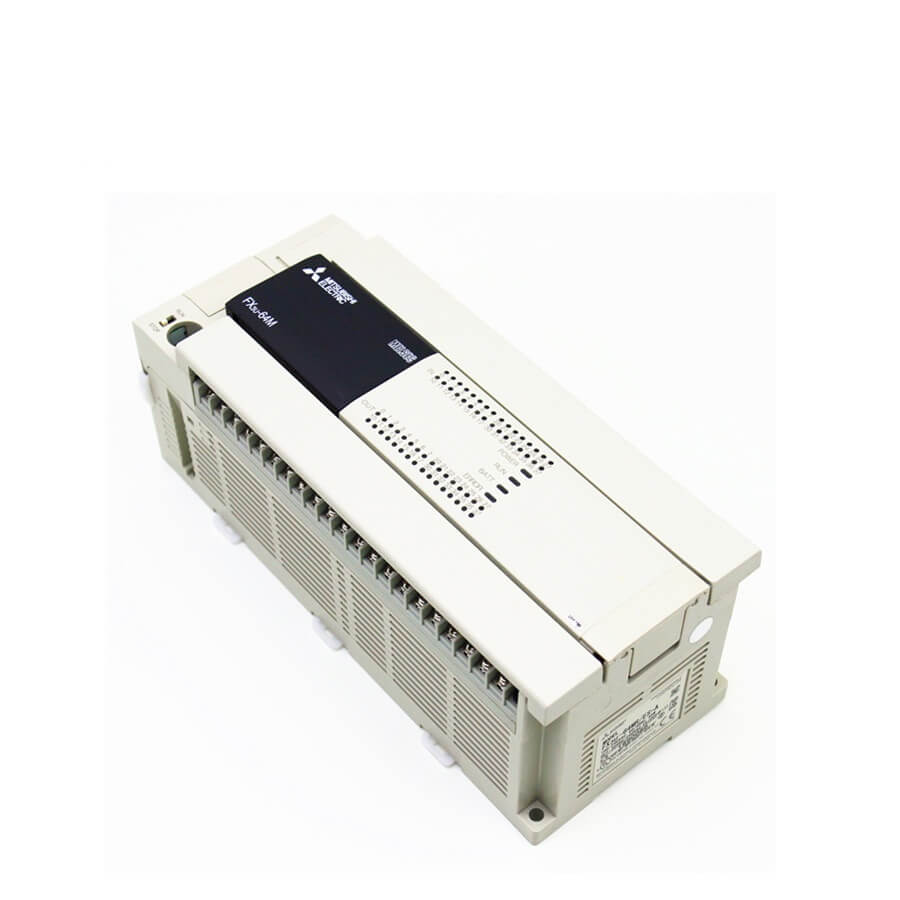

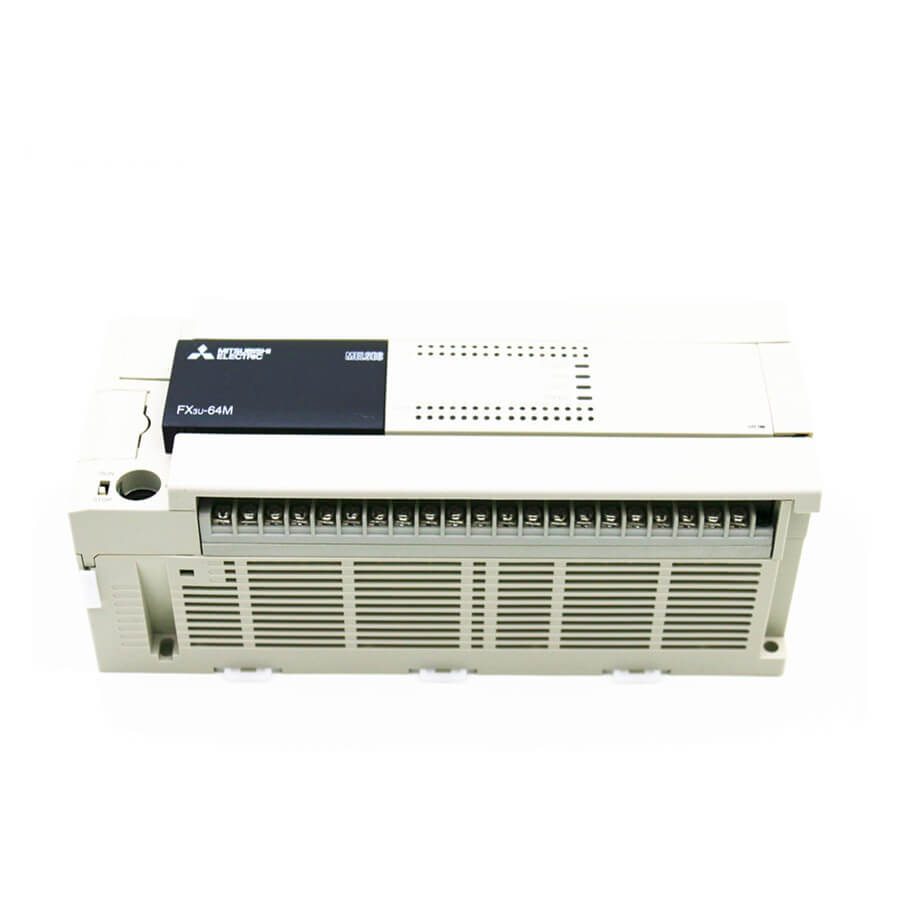

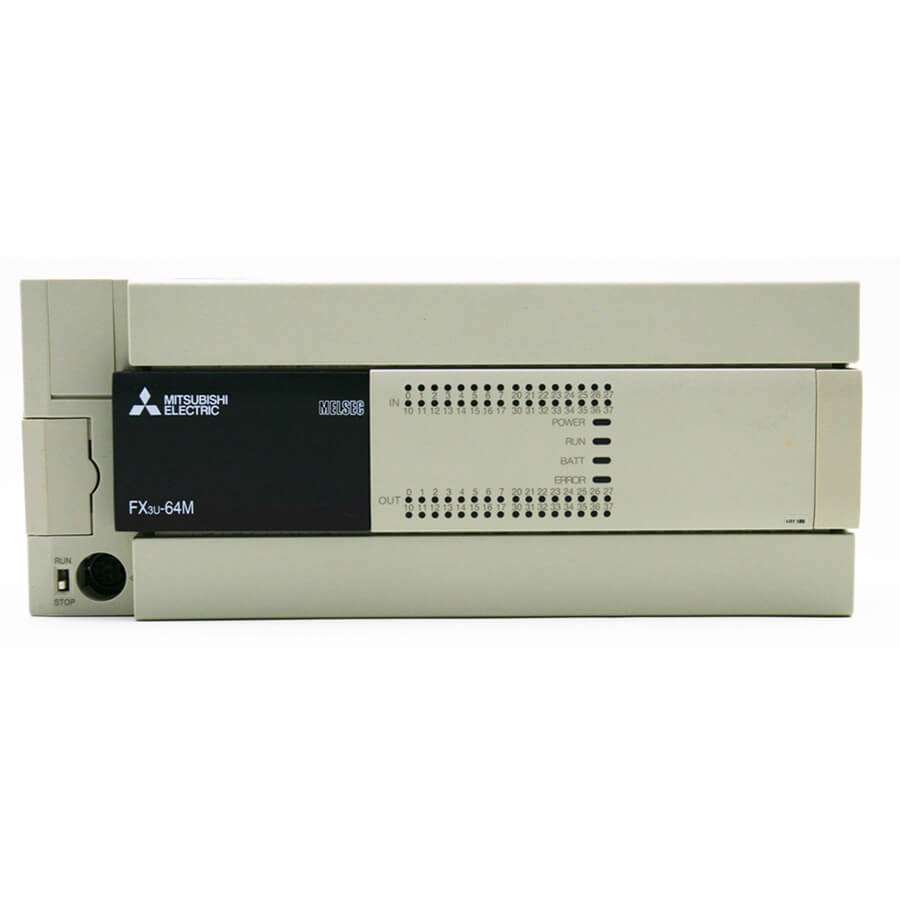

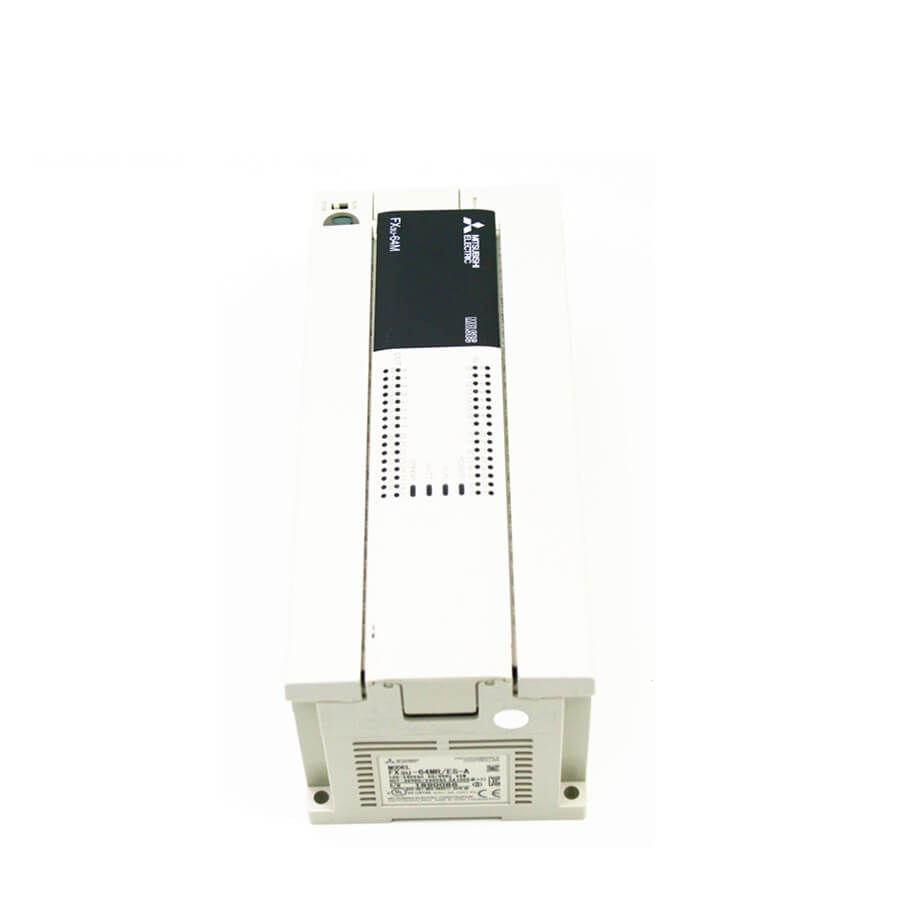

Mitsubishi FX3U-64MR-ES/A / FX3U-64MT-ES/A – High-performance PLC controller module for advanced automation.
Supports up to 64 I/O points with relay (MR) or transistor (MT) output options.
Robust processing with 7,680 auxiliary relays and 8,000 data registers for complex logic.
High-speed counter capability: 1-phase up to 100 kHz and 2-phase up to 50 kHz.
Expandable memory with extension registers up to 32,768 and optional file registers.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

This Mitsubishi FX3U-64MR-ES/A and FX3U-64MT-ES/A PLC controller module delivers exceptional performance for demanding industrial control systems. Designed as a compact yet powerful unit, it integrates seamlessly into the FX3U series architecture, offering a rich set of internal relays, timers, counters, and data registers. With its high-speed counter inputs and flexible memory options, this module is ideal for applications requiring precise motion control, high-speed data logging, or complex sequential logic.

Parameter	FX3G/FX3GC/FX3GE Series	FX3U/FX3UC Series (This Module)
Auxiliary Relays	7,680 total: 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), 6,144 general/optional latched (M1536–M7679)	7,680 total: 500 general (M0–M499), 524 optional latched (M500–M1023), 6,656 latched (M1024–M7679)
State Relays	4,096 total: 1,000 EEPROM latched (S0–S999), 3,096 general/optional latched (S1000–S4095)	4,096 total: 1,000 optional latched (S0–S999), 3,096 latched (S1000–S4095)
Timers	320 total: 206×100 ms (T0–T199, T250–T255), 46×10 ms (T200–T245), 68×1 ms (T246–T249, T256–T319)	512 total: 206×100 ms (T0–T191, T192–T199, T250–T255), 46×10 ms (T200–T245), 260×1 ms (T246–T249, T256–T511)
Counters	235 total (16/32 bit): 36 general (C0–C15, C200–C219), 199 EEPROM latched (C16–C199, C220–C234)	235 total (16/32 bit): 120 general (C0–C99, C200–C219), 115 latched (C100–C199, C220–C234)
High-Speed Counter Speed	1-phase: 6 points max at 60 kHz / 4 points at 10 kHz / 2 points; 2-phase: 3 points max at 30 kHz / 2 points at 5 kHz / 1 point	1-phase: 8 points max at 100 kHz / 6 points at 10 kHz / 2 points; 2-phase: 2 points max at 50 kHz / 2 points
Data Registers	8,000 total: 128 general (D0–D127), 972 EEPROM latched (D128–D1099), 6,900 general/optional latched (D1100–D7999)	8,000 total: 200 general (D0–D199), 312 optional latched (D200–D511), 7,488 latched (D512–D7999)
Extension Registers	24,000 (R0–R23999)	32,768 (R0–R32767)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory	32,768 (ER0–R32767) optional memory

Processing Power: Enhanced with 7,680 auxiliary relays and 8,000 data registers for complex logic and data handling.
High-Speed Counting: Up to 100 kHz on 1-phase inputs and 50 kHz on 2-phase inputs, supporting precise motion and positioning tasks.
Memory Expansion: 32,768 extension registers (R0–R32767) and optional file registers for extensive data storage.
Timer Flexibility: 512 timers including high-speed 1 ms variants (260 points) for time-critical operations.
Output Options: Choose relay (MR) for general-purpose switching or transistor (MT) for high-speed, solid-state control.
Reliability: Built with latched memory options (EEPROM or optional) to retain critical data during power loss.
