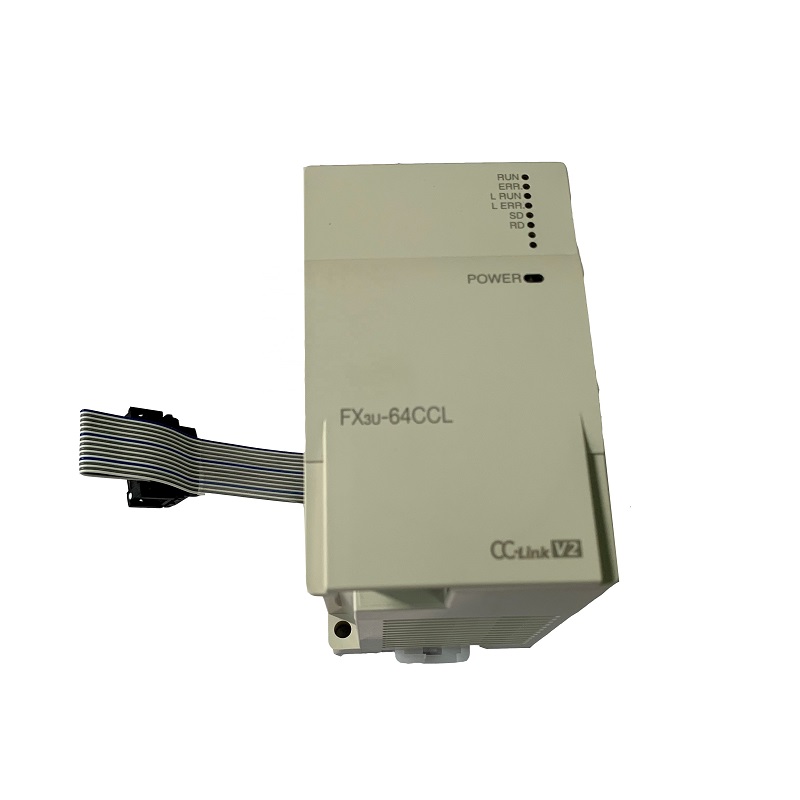

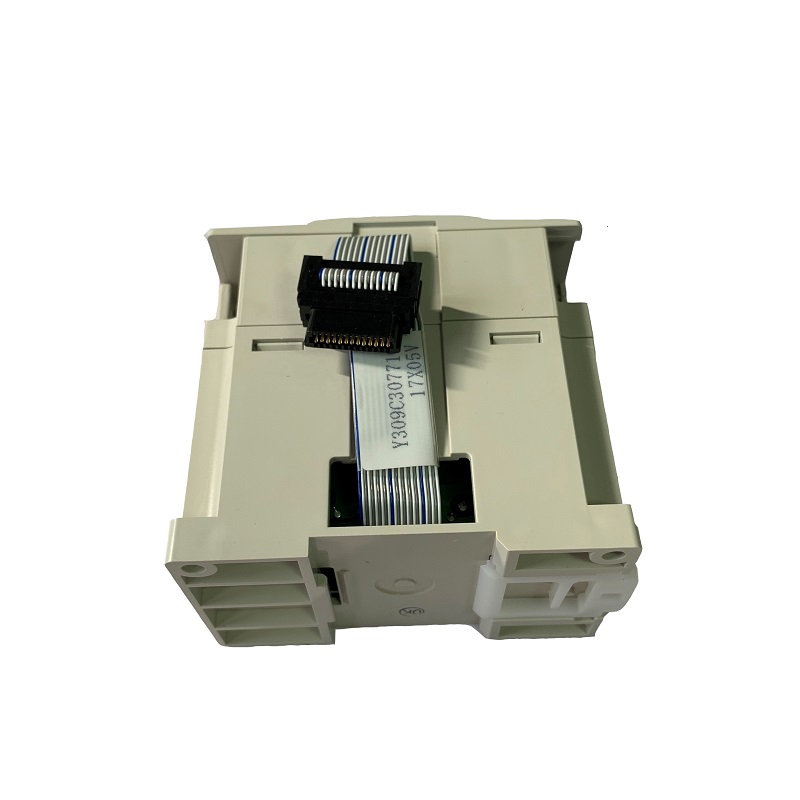

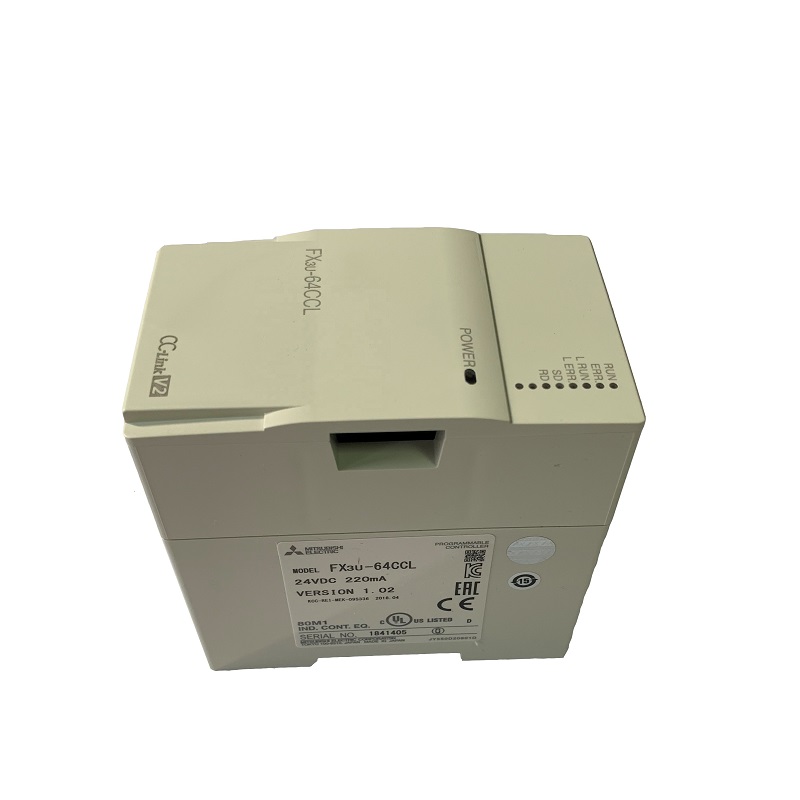

Mitsubishi FX3U-64CCL PLC Extension Module

Series#: Mitsubishi

Product Details

Mitsubishi FX3U-64CCL – High-performance PLC Extension Module for advanced automation.
Supports 7,680 total auxiliary relays with flexible latching options (500 general + 524 optional + 6,656 latched).
Offers 512 total timers including 206x 100ms, 46x 10ms, and 260x 1ms types for precise control.
Features 235 counters (16/32-bit) with 120 general and 115 latched, plus high-speed inputs up to 100 kHz.
Equipped with 8,000 data registers and 32,768 extension registers for extensive data handling.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi FX3U-64CCL is a robust PLC extension module designed for the FX3U/FX3UC series, delivering exceptional scalability and real-time control for industrial automation. It integrates seamlessly to expand I/O and memory capabilities, making it ideal for complex manufacturing processes. With advanced relay, timer, and counter configurations, the FX3U-64CCL ensures high-speed precision and reliability in demanding environments.

Parameter	FX3U/FX3UC Specification
Auxiliary Relays	7,680 total: 500 general (M0–M499), 524 optional latched (M500–M1023), 6,656 latched (M1024–M7679)
State Relays	4,096 total: 1,000 optional latched (S0–S999), 3,096 latched (S1000–S4095)
Timers	512 total: 206 x 100ms (T0–T191, T192–T199, T250–T255), 46 x 10ms (T200–T245), 260 x 1ms (T246–T249, T256–T511)
Counters	235 total (16-bit and 32-bit): 120 general (C0–C99, C200–C219), 115 latched (C100–C199, C220–C234)
High-Speed Counter Speed	1-phase: 8 points max @ 100 kHz / 6 points @ 10 kHz / 2 points; 2-phase: 2 points max @ 50 kHz / 2 points
Data Registers	8,000 total: 200 general (D0–D199), 312 optional latched (D200–D511), 7,488 latched (D512–D7999)
Extension Registers	32,768 (R0–R32767)
Extension File Registers	32,768 (ER0–R32767) optional memory

Memory Architecture: Built with 7,680 auxiliary relays and 4,096 state relays, offering extensive latching options via EEPROM and optional configurations.
Timing Precision: 512 timers support multi-resolution timing (100ms, 10ms, 1ms) for fine-grained process control.
Counting Capabilities: 235 counters with high-speed inputs up to 100 kHz (1-phase) and 50 kHz (2-phase) ensure accurate pulse counting.
Data Handling: 8,000 data registers plus 32,768 extension registers provide ample storage for complex algorithms and data logging.
Scalability: Seamlessly integrates with FX3U/FX3UC systems, supporting up to 32,768 file registers for expanded memory needs.
Reliability: 100% original and new, with robust latching and general-purpose options for sustained industrial operations.
