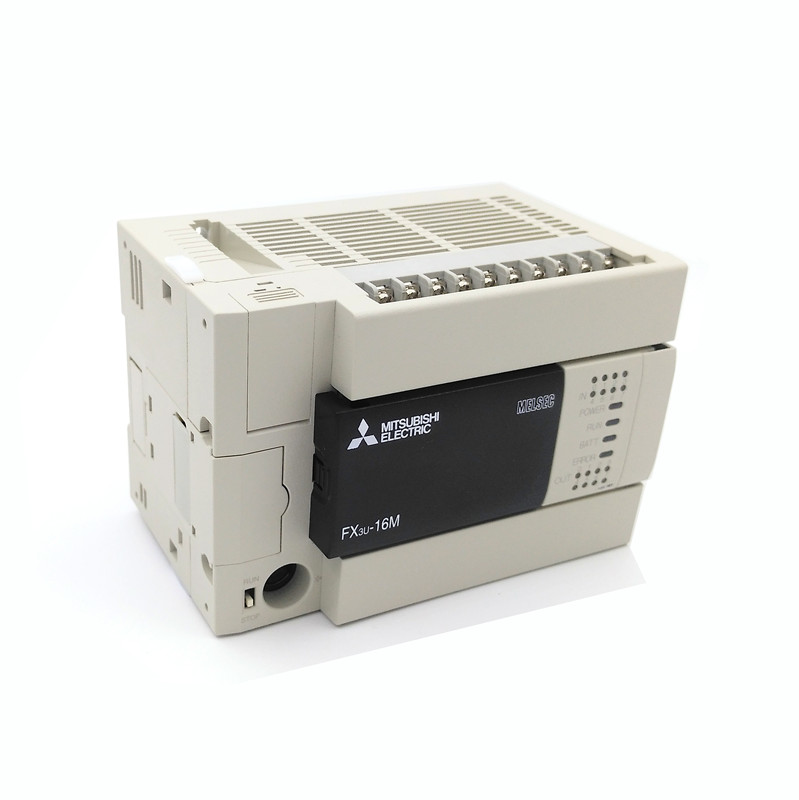

Mitsubishi FX3U-16MR/DS PLC Controller Module

Series#: Mitsubishi

Product Details

High-performance Mitsubishi PLC Controller Module FX3U-16MR/DS and FX3U-16MT/DS for advanced automation.
Supports up to 8,000 data registers, 4,096 state relays, and 512 timers for complex control tasks.
High-speed counter capability: 1-phase up to 100 kHz (8 points) and 2-phase up to 50 kHz (2 points).
Seamless integration with FX3U/FX3UC series for scalable I/O expansion.
Robust EEPROM latching for critical auxiliary relays and data retention without battery backup.
Ideal for precision motion control, packaging machinery, and industrial process automation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

Engineered for demanding industrial environments, the Mitsubishi PLC Controller Module FX3U-16MR/DS (relay output) and FX3U-16MT/DS (transistor output) deliver exceptional processing power and memory density. With a massive 32,768 extension registers and 7,680 auxiliary relays, these modules excel in high-speed counting, data logging, and sequential control. The FX3U series supports up to 8,000 data registers and 4,096 state relays, ensuring robust handling of complex ladder logic and analog processing. Whether you need precise timing with 512 timers or high-speed counter inputs reaching 100 kHz, this controller is built for reliability and scalability.

Parameter	FX3U/FX3UC Specification
Auxiliary Relays	7,680 total: 500 general (M0–M499), 524 optional latched (M500–M1023), 6,656 latched (M1024–M7679)
State Relays	4,096 total: 1,000 optional latched (S0–S999), 3,096 latched (S1000–S4095)
Timers	512 total: 206 x 100 ms (T0–T191, T192–T199, T250–T255), 46 x 10 ms (T200–T245), 260 x 1 ms (T246–T249, T256–T511)
Counters	235 total (16-bit and 32-bit): 120 general (C0–C99, C200–C219), 115 latched (C100–C199, C220–C234)
High-Speed Counter Speed	1-phase: 8 points max at 100 kHz / 6 points at 10 kHz / 2 points; 2-phase: 2 points max at 50 kHz / 2 points at 10 kHz
Data Registers	8,000 total: 200 general (D0–D199), 312 optional latched (D200–D511), 7,488 latched (D512–D7999)
Extension Registers	32,768 (R0–R32767)
Extension File Registers	32,768 (ER0–R32767) optional memory

Memory Architecture: EEPROM-based latching for auxiliary relays (M500–M1023) and data registers (D200–D511) ensures data retention without batteries.
High-Speed Processing: Supports up to 100 kHz single-phase and 50 kHz two-phase counter inputs for precise motion and encoder feedback.
Scalability: Compatible with FX3U/FX3UC expansion modules for up to 256 I/O points (local) and remote I/O via CC-Link.
Communication: Built-in RS-422/485 port for programming and networking, plus optional Ethernet, Profibus, or CANopen adapters.
Timing Precision: 1 ms timers (T246–T249, T256–T511) enable microsecond-level control for fast-acting outputs.
Data Logging: 32,768 extension registers (R0–R32767) support large-scale data acquisition and recipe management.
Power Supply: DC 24V input (16MR/DS and 16MT/DS) with isolated power for noise immunity in industrial settings.
Environmental Rating: Operating temperature 0–55°C, humidity 5–95% (non-condensing), suitable for harsh factory floors.
