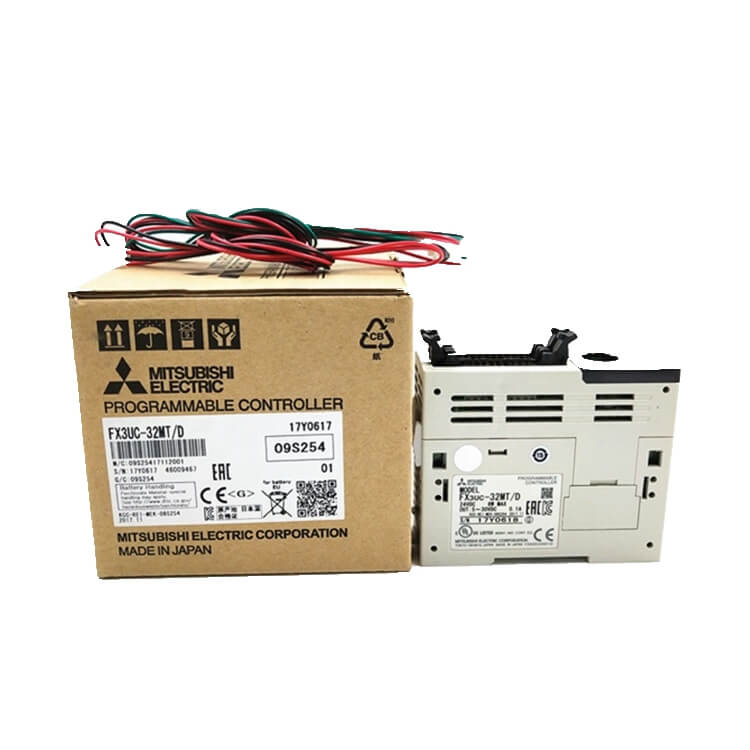

Mitsubishi PLC Controller Module FX3UC-32MT/D

Series#: Mitsubishi

Product Details

Mitsubishi PLC Controller Module FX3UC-32MT/D – High-performance, compact control solution for demanding automation.
16 inputs / 16 outputs (transistor sink/source) for precise, high-speed switching.
Rich memory: 7,680 auxiliary relays, 8,000 data registers, and 32,768 extension registers.
Advanced high-speed counters: up to 100 kHz single-phase, 50 kHz two-phase for motion control.
Seamless integration with FX3U series I/O and special function modules.
Compact form factor ideal for space-constrained panels and distributed systems.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi PLC Controller Module FX3UC-32MT/D is a next-generation, ultra-compact controller engineered for high-speed, high-precision industrial automation. Featuring 16 sink/source transistor outputs and 16 inputs, this module delivers robust performance in motion control, packaging, and material handling applications. With extensive memory resources and advanced high-speed counter capabilities, the FX3UC-32MT/D ensures reliable operation even in the most demanding environments. Below are the detailed technical specifications.

Parameter	FX3UC-32MT/D Specification
Auxiliary Relays (M)	7,680 total: 500 general (M0–M499), 524 optional latched (M500–M1023), 6,656 latched (M1024–M7679)
State Relays (S)	4,096 total: 1,000 optional latched (S0–S999), 3,096 latched (S1000–S4095)
Timers (T)	512 total: 206 x 100 ms (T0–T191, T192–T199, T250–T255), 46 x 10 ms (T200–T245), 260 x 1 ms (T246–T249, T256–T511)
Counters (C)	235 total (16-bit and 32-bit): 120 general (C0–C99, C200–C219), 115 latched (C100–C199, C220–C234)
High-Speed Counter Speed	1-phase: 8 points max at 100 kHz / 6 points at 10 kHz; 2-phase: 2 points max at 50 kHz / 2 points at 10 kHz
Data Registers (D)	8,000 total: 200 general (D0–D199), 312 optional latched (D200–D511), 7,488 latched (D512–D7999)
Extension Registers (R)	32,768 (R0–R32767)
Extension File Registers (ER)	32,768 (ER0–R32767) optional memory

Input/Output Configuration: 16 digital inputs (sink/source) and 16 transistor outputs (sink/source), supporting high-speed switching up to 100 kHz.
Memory Architecture: Robust non-volatile storage with optional latched relays and registers for critical data retention during power cycles.
High-Speed Processing: Built-in high-speed counters enable precise motion control and encoder feedback integration.
Expandability: Compatible with FX3U-series special function modules (AD, DA, positioning, etc.) and extension I/O via the FX3UC bus.
Communication: Embedded RS-422 port for programming and connection to HMI/SCADA systems; optional Ethernet or CC-Link via expansion.
Power Supply: 24 VDC ±10% with integrated surge protection and reverse polarity protection.
Environmental Ratings: Operating temperature 0–55°C, humidity 5–95% (non-condensing), IP20 enclosure for panel-mount use.
Certifications: CE, UL, and cUL listed for global industrial compliance.
