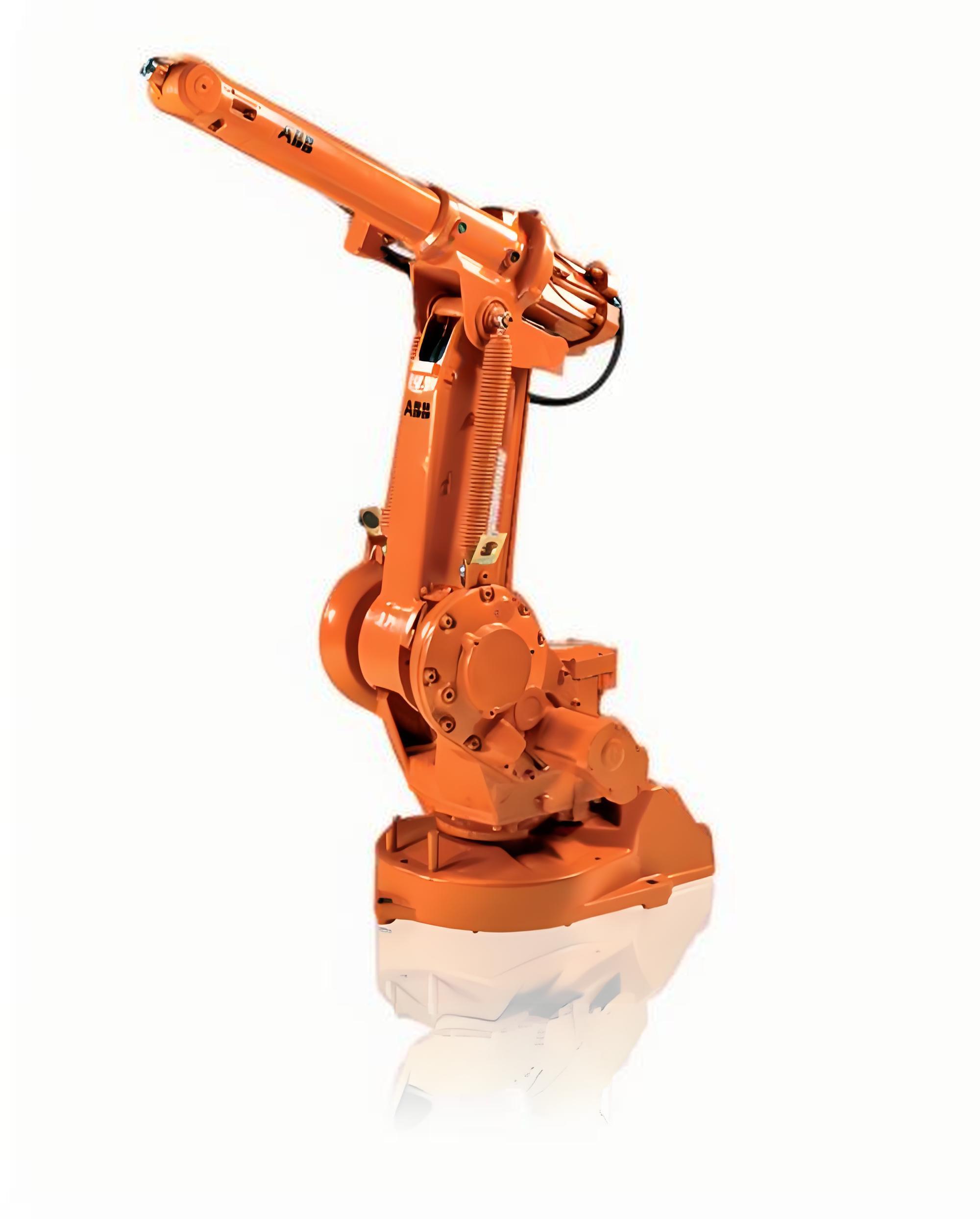

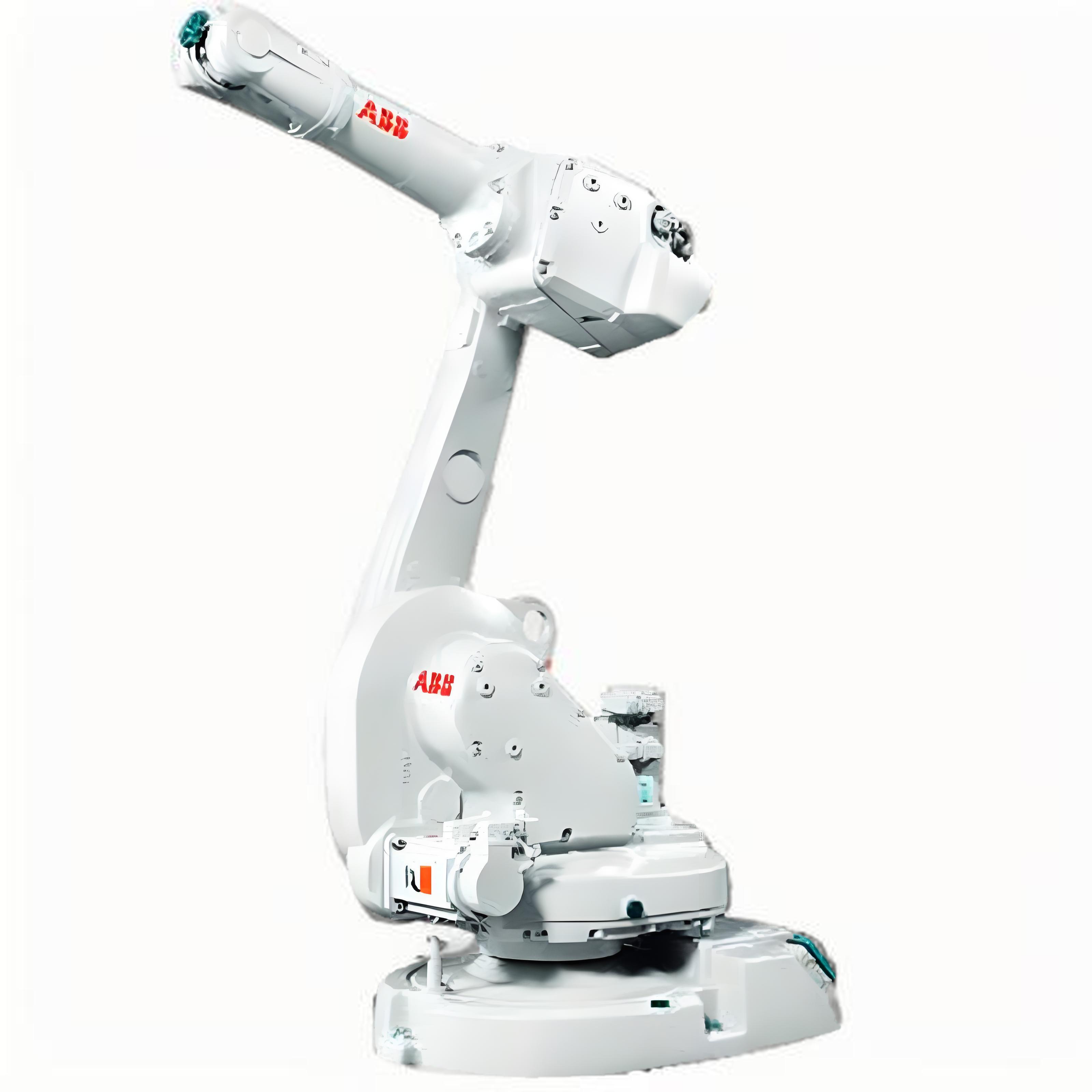

ABB IRB1600 Robot

Series#: Robotics

Product Details

ABB IRB 1600 – A compact, high-speed 6-axis articulated robot engineered for precision assembly, arc welding, and material handling applications.
Payload capacity up to 10 kg with a maximum reach of 1450 mm, offering exceptional versatility for mid-range automation tasks.
Equipped with ABB’s second-generation QuickMove and TrueMove motion control for superior path accuracy and reduced cycle times.
Repeatability of ±0.02 mm ensures consistent, high-quality output even in demanding 24/7 production environments.
Flexible mounting options (floor, wall, tilt, or inverted) simplify integration into existing production lines or compact cells.
Optional Foundry Plus protection (IP67) and integrated cable management for harsh environments and extended service life.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The ABB IRB 1600 is a benchmark in mid-range industrial robotics, delivering an optimal blend of speed, accuracy, and robustness. Designed for manufacturers who demand uncompromising performance, the IRB 1600 excels in applications ranging from arc welding and machine tending to assembly and material removal. Its compact footprint, combined with advanced motion control technologies, allows it to operate efficiently in space-constrained layouts while maintaining the high throughput required for modern production lines. Whether deployed on a floor, wall, or in an inverted configuration, this robot offers the reliability and flexibility that system integrators and end-users have trusted for decades.

Specification	Details
Robot Model	IRB 1600
Number of Axes	6
Payload Capacity (Standard Models)	Up to 10 kg
Maximum Reach (Standard Arm)	1450 mm
Short-Arm Version Reach	1200 mm (optional compact variant)
Short-Arm Max Payload	Up to 36 kg (total load at wrist)
Repeatability	±0.02 mm
Axis 1 Rotation (Base)	+170° / -170°
Axis 2 Rotation (Shoulder)	+85° / -65°
Axis 3 Rotation (Elbow)	+70° / -180°
Axis 4 Rotation (Wrist 1)	+300° / -300°
Axis 5 Rotation (Wrist 2)	+120° / -120°
Axis 6 Rotation (Wrist 3)	+360° / -360°
Axis 1 Max Speed	150°/s
Axis 2 Max Speed	150°/s
Axis 3 Max Speed	150°/s
Axis 4 Max Speed	320°/s
Axis 5 Max Speed	320°/s
Axis 6 Max Speed	420°/s
Protection Class (Standard)	IP54 (base and arm), IP67 (wrist)
Optional Protection	Foundry Plus (IP67 entire robot, special paint, rust protection)
Mounting Options	Floor, wall, tilt, inverted
Controller Compatibility	ABB IRC5 or OmniCore (depending on configuration)
Power Consumption (Typical)	Reduced via low-friction gears, QuickMove, and TrueMove
Noise Level	Low air noise for operator-friendly environment
Integrated Cable Management	Available on IRB 1600ID models (cables/hoses inside arm)
Smart Collision Detection	Standard software feature to minimize downtime
Typical Applications	Arc welding, assembly, material handling, machine tending, material removal, cleaning/painting, packaging
Industries Served	Automotive, electronics, metalworking, general manufacturing
