ABB IRB1300 Robot

Series#: Robotics

Product Details

ABB IRB 1300 – A compact six-axis articulated industrial robot designed for high-speed, high-precision tasks in confined workspaces.
Up to 27% faster cycle times and 83% smaller footprint compared to the IRB 1600, boosting production density.

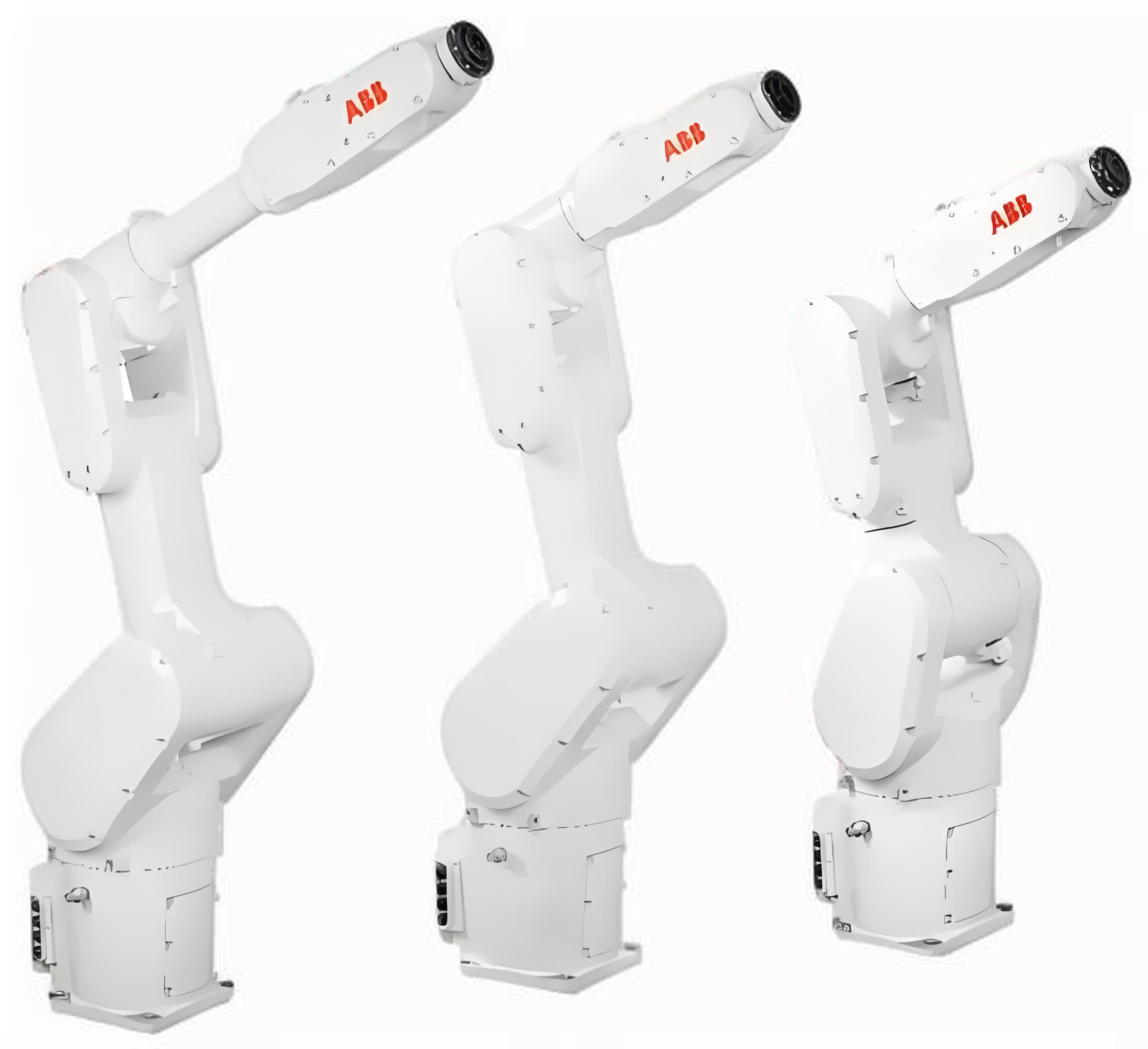

Available in three payload/reach variants: 11 kg / 0.9 m, 10 kg / 1.15 m, and 7 kg / 1.4 m for maximum application flexibility.
Equipped with ABB Omnicore controller for best-in-class path accuracy and advanced motion control.
Ideal for material handling, machine tending, assembly, polishing, and testing in electronics, food & beverage, pharma, and logistics.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The ABB IRB 1300 is a next-generation, compact six-axis industrial robot that redefines productivity in space-constrained automation cells. With its ultra-small footprint (220 mm x 220 mm) and a weight nearly 60% lighter than its predecessor, the IRB 1300 enables manufacturers to deploy multiple robots in tight areas without sacrificing performance. Powered by the advanced Omnicore controller, this robot delivers exceptional path accuracy and a 27% improvement in cycle times. The IRB 1300 is available in three standard configurations: 11 kg payload with 0.9 m reach, 10 kg payload with 1.15 m reach, and 7 kg payload with 1.4 m reach, offering engineers the flexibility to match the exact requirements of their application. Whether used for high-speed material handling, precision machine tending, or complex assembly tasks, the IRB 1300 sets a new benchmark for compact robot performance.

Specification	IRB 1300 – 11 kg / 0.9 m	IRB 1300 – 10 kg / 1.15 m	IRB 1300 – 7 kg / 1.4 m
Number of Axes	6	6	6
Maximum Payload	11 kg	10 kg	7 kg
Maximum Reach	0.9 m	1.15 m	1.4 m
Position Repeatability (XYZ)	±0.02 mm	±0.02 mm	±0.02 mm
Robot Footprint	220 mm x 220 mm	220 mm x 220 mm	220 mm x 220 mm
Robot Weight	Approx. 95 kg	Approx. 95 kg	Approx. 95 kg
Axis 1 Rotation	+170° to -170°	+170° to -170°	+170° to -170°
Axis 2 Rotation	+130° to -100°	+130° to -100°	+130° to -100°
Axis 3 Rotation	+70° to -200°	+70° to -200°	+70° to -200°
Axis 4 Rotation	+270° to -270°	+270° to -270°	+270° to -270°
Axis 5 Rotation	+130° to -130°	+130° to -130°	+130° to -130°
Axis 6 Rotation	+400° to -400°	+400° to -400°	+400° to -400°
Maximum Speed Axis 1-6	180°/s – 360°/s (varies by axis)	180°/s – 360°/s (varies by axis)	180°/s – 360°/s (varies by axis)
Controller	ABB Omnicore C30	ABB Omnicore C30	ABB Omnicore C30
Protection Class	IP40 (standard), IP67 (optional)	IP40 (standard), IP67 (optional)	IP40 (standard), IP67 (optional)
Mounting	Floor, wall, or ceiling	Floor, wall, or ceiling	Floor, wall, or ceiling
Power Consumption	0.9 kW (typical)	0.9 kW (typical)	0.9 kW (typical)
Ambient Temperature	+5°C to +45°C	+5°C to +45°C	+5°C to +45°C
Fieldbus Support	EtherNet/IP, PROFINET, DeviceNet, EtherCAT, Modbus TCP	EtherNet/IP, PROFINET, DeviceNet, EtherCAT, Modbus TCP	EtherNet/IP, PROFINET, DeviceNet, EtherCAT, Modbus TCP
Application Examples	Material handling, machine tending, assembly, polishing, testing	Material handling, machine tending, assembly, polishing, testing	Material handling, machine tending, assembly, polishing, testing
