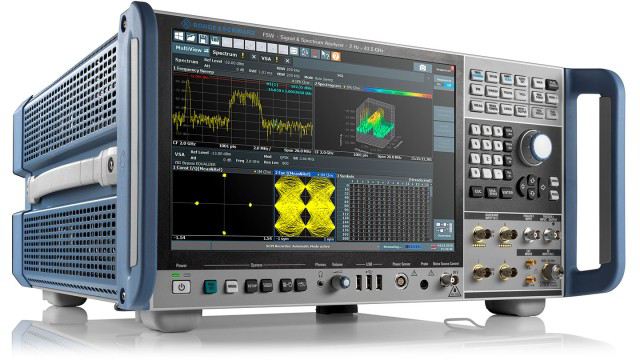

Rohde & Schwarz FSW26 Signal and Spectrum Analyzer

Series#: Rohde & Schwarz

Product Details

ROHDE & SCHWARZ FSW26 Signal & Spectrum Analyzer – engineered for high-precision RF measurements up to 26.5 GHz.
Wide frequency coverage: DC coupled from 2 Hz to 26.5 GHz, AC coupled from 10 MHz to 26.5 GHz.
Ultra-fine frequency resolution of 0.01 Hz ensures exceptional spectral detail.
High-stability internal reference with ±1×10⁻⁷/year aging and ±1×10⁻⁸ calibration accuracy.
Ideal for 5G, radar, and satellite communications testing in R&D and production environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The ROHDE & SCHWARZ FSW26 Signal & Spectrum Analyzer sets the benchmark for high-performance RF analysis, combining an extensive frequency range with unparalleled measurement accuracy. With a DC-coupled bandwidth from 2 Hz to 26.5 GHz and AC-coupled operation from 10 MHz to 26.5 GHz, this instrument is perfectly suited for demanding applications such as wideband modulation analysis, harmonic measurements, and phase noise testing. Its 0.01 Hz frequency resolution allows for precise signal characterization, while the internal reference oscillator delivers exceptional long-term stability with an aging rate of ±1×10⁻⁷ per year and a calibration accuracy of ±1×10⁻⁸. Designed for both laboratory and field use, the FSW26 ensures reliable, repeatable results across the entire frequency spectrum.

Parameter	Specification
Frequency Range (DC coupled)	2 Hz – 26.5 GHz
Frequency Range (AC coupled)	10 MHz – 26.5 GHz
Frequency Resolution	0.01 Hz
Reference Frequency (Internal)	Standard OCXO
Reference Aging per Year	±1 × 10⁻⁷
Temperature Drift (0°C to +50°C)	±1 × 10⁻⁷
Initial Calibration Accuracy	±1 × 10⁻⁸
Displayed Average Noise Level (DANL)	Typ. –155 dBm/Hz (at 1 GHz)
Phase Noise (10 kHz offset, 1 GHz carrier)	Typ. –115 dBc/Hz
Input Impedance	50 Ω (nominal)
Maximum Safe Input Level	+30 dBm (1 W) continuous, 0 V DC
Resolution Bandwidth (RBW)	1 Hz – 10 MHz (in 1-2-5 steps)
Video Bandwidth (VBW)	1 Hz – 10 MHz (in 1-2-5 steps)
Measurement Modes	Spectrum Analyzer, I/Q Analyzer, Time Domain, Phase Noise, Channel Power, ACLR, OBW, SEM
Detector Types	Auto, Peak, Min Peak, Sample, RMS, Average
Display	12.1-inch TFT color touchscreen (1280 x 800)
Interfaces	LAN (1000Base-T), USB 2.0/3.0, GPIB (optional), HDMI, Trigger I/O
Operating Temperature Range	0°C to +50°C
Power Supply	AC 100–240 V, 50/60 Hz, max. 300 W
Weight	Approx. 18.5 kg (40.8 lbs)
