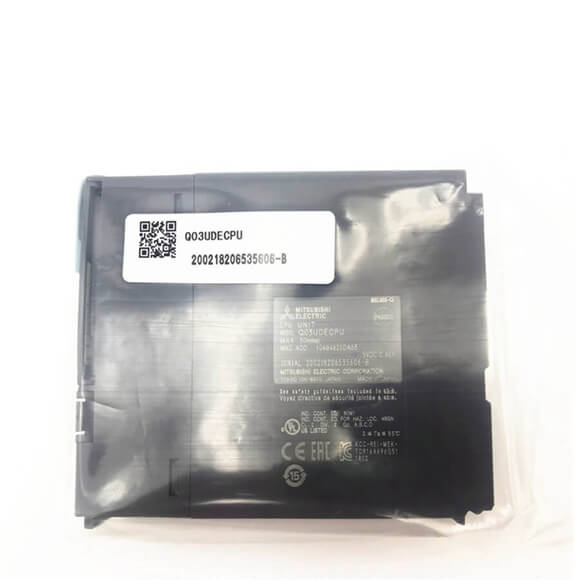

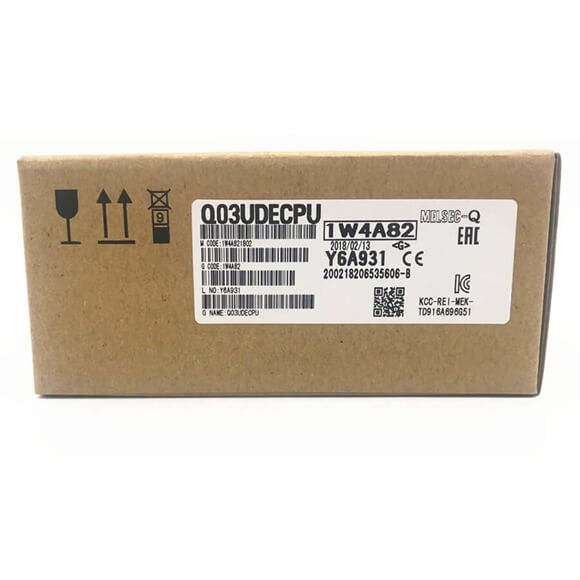

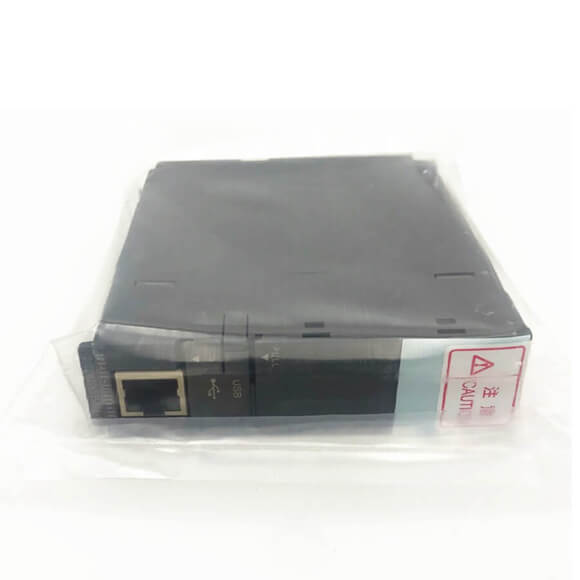

Mitsubishi Q Series CPU Module Q03UDECPU

Series#: Mitsubishi

Product Details

MITSUBISHI Q03UDECPU – High-performance multi-function CPU module for the Q Series PLC platform.
Stored program cyclic control with refresh I/O mode ensures deterministic, high-speed automation.
Program capacity up to 30K steps with 20 ns instruction processing speed (basic/contact instructions).
Supports up to 4096 I/O points (X/Y) and 8192 total I/O points for flexible system expansion.
Robust device memory: 8192 internal relays, 12288 data registers, and 2048 link registers.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The MITSUBISHI Q03UDECPU is a versatile and powerful CPU module within the Q Series programmable logic controller family, designed for demanding industrial automation tasks. It combines a compact footprint with advanced processing capabilities, including a 20 ns basic instruction speed and stored program cyclic operation. The module supports extensive I/O configurations and a wide range of device memory, making it ideal for applications requiring precise control and high reliability. With its built-in Ethernet port and compatibility with various expansion modules, the Q03UDECPU offers seamless integration into existing and new systems, ensuring optimal performance in manufacturing, process control, and infrastructure management.

Item	Q03UDECPU
Control method	Stored program cyclic operation
I/O control mode	Refresh
Extended SRAM cassette port	20 ns
Constant scan (setting available in units of 0.5 ms)	0.5…2000 ms
Program capacity	30K steps
Number of I/O device points [X/Y]	8192 points
Number of I/O points [X/Y]	4096 points
Internal relay [M]	8192 points
Latch relay [L]	8192 points
Link relay [B]	2048 points
Timer [T]	0 point
Retentive timer [ST]	1024 points
Counter [C]	1024 points
Data register [D]	12288 points
Extended data register [D]	0 point
Link register [W]	8192 points
Extended link register [W]	0 point
Annunciator [F]	2048 points
Edge relay [V]	2048 points
Link special relay [SB]	2048 points
Link special register [SW]	98304 points
File register [R, ZR]	8192 points
Step relay [S]	8192 points
Index register/standard device register [Z]	Max. 20 points
Index register [Z] (32-bit ZR indexing)	Max. 10 points (Index register [Z] is used in double words.)
Pointer [P]	4096 points
Interrupt pointer [I]	256 points
Special relay [SM]	2048 points
Special register [SD]	2048 points
Function input [FX]	16 points
Function output [FY]	16 points
