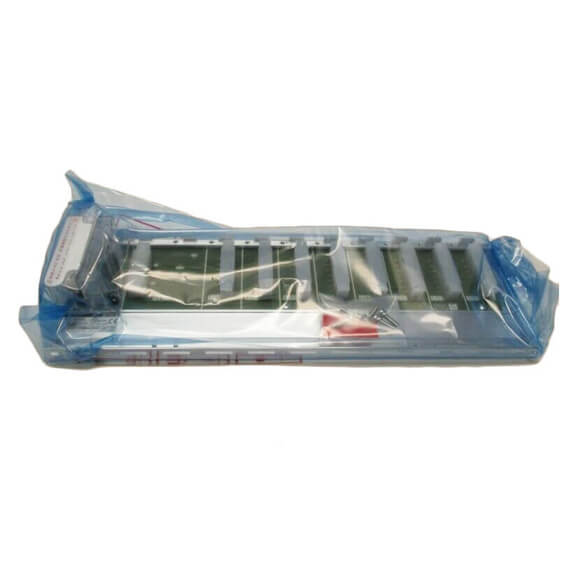

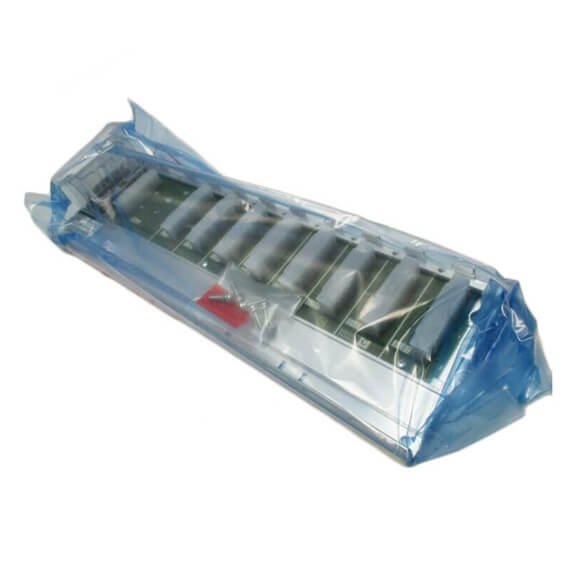

Mitsubishi Q Series Extension Base Module Q63B

Series#: Mitsubishi

Product Details

Mitsubishi Q Series Extension Base Modules (Q63B, Q65B, Q68B, Q612B, Q52B, Q55B, Q68RB, Q65WRB) – Precision-engineered for expanding Q Series PLC systems with reliable backplane connectivity.
Flexible slot configurations from 2 to 12 slots to match exact I/O and module requirements.
Power supply options include standard, slim-type, and redundant power modules for critical uptime.
Robust construction with DIN rail mounting adapters and vibration-proofing accessories available.
Seamless integration with main bases, extension cables, and blank covers for a complete system.

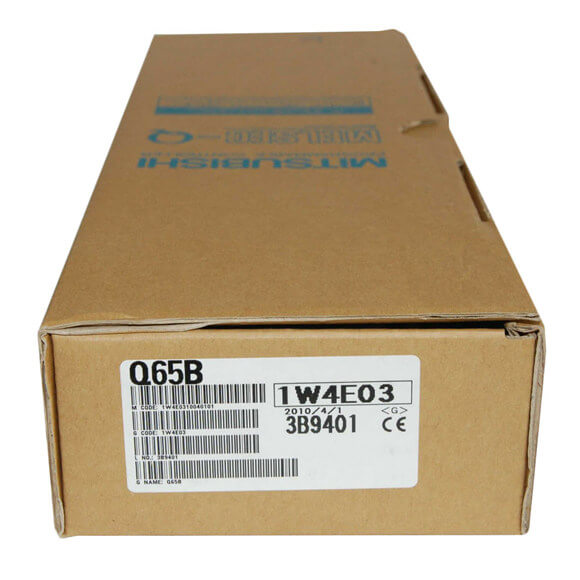

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi Q Series extension base module lineup, including models such as the Q63B, Q65B, Q68B, Q612B, Q52B, Q55B, Q68RB, and Q65WRB, provides a scalable and rugged backplane solution for expanding industrial automation systems. These bases are designed to accommodate a wide range of Q Series I/O, intelligent function, and communication modules, ensuring high-speed data transfer and system integrity. Each unit is manufactured to Mitsubishi’s stringent quality standards, offering reliable performance in demanding environments. The selection includes both power-supply-required and power-supply-free variants, as well as redundant power options for mission-critical applications. Below is a comprehensive specification table for these extension base modules and related accessories.

Product Type	Part Number	Details
Extension Base	Q63B	3 slots, requires 1 power supply module, for Q Series modules
Extension Base	Q65B	5 slots, requires 1 power supply module, for Q Series modules
Extension Base	Q68B	8 slots, requires 1 power supply module, for Q Series modules
Extension Base	Q612B	12 slots, requires 1 power supply module, for Q Series modules
Extension Base (Power Supply Not Required)	Q52B	2 slots, no power supply module needed, for Q Series modules
Extension Base (Power Supply Not Required)	Q55B	5 slots, no power supply module needed, for Q Series modules
Redundant Power Extension Base	Q68RB	8 slots, requires 2 redundant power supply modules, for Q Series modules
Redundant Power Extension Base	Q65WRB	5 slots, requires 2 redundant power supply modules, for Q Series modules
Accessories
Extension Cable	QC05B	0.45 m cable for connecting extension base unit
Extension Cable	QC06B	0.6 m cable for connecting extension base unit
Extension Cable	QC12B	1.2 m cable for connecting extension base unit
Extension Cable	QC30B	3 m cable for connecting extension base unit
Extension Cable	QC50B	5 m cable for connecting extension base unit
Extension Cable	QC100B	10 m cable for connecting extension base unit
DIN Rail Mounting Adapter	Q6DIN1	For Q38B, Q312B, Q68B, Q612B, Q38RB, Q68RB, Q65WRB, Q38DB, Q312DB
DIN Rail Mounting Adapter	Q6DIN2	For Q35B, Q65B, Q00JCPU, Q00UJCPU
DIN Rail Mounting Adapter	Q6DIN3	For Q32SB, Q33SB, Q35SB, Q33B, Q52B, Q55B, Q63B
DIN Rail Mounting Adapter (with Vibration-Proofing Bracket)	Q6DIN1A	For Q3xB, Q5xB, Q6xB, Q38RB, Q68RB, Q65WRB (compatible with standard and redundant bases)
Blank Cover	QG60	Blank cover for I/O slot
