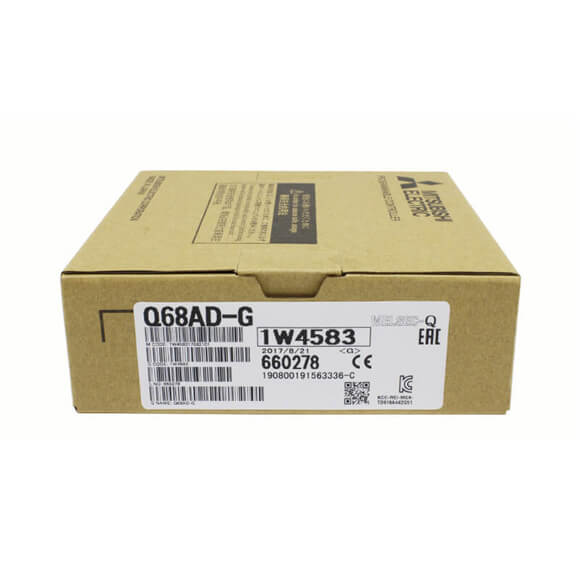

Mitsubishi Q Series Analog Module Q68AD-G

Series#: Mitsubishi

Product Details

MITSUBISHI Q68AD-G, Q68TD-G-H01, Q68TD-G-H02, Q68RD3-G – high-density analog I/O modules for the Q Series platform.
Each module delivers 8 isolated channels for precise signal acquisition or temperature measurement.
Q68AD-G supports both voltage and current analog inputs, offering versatile field connectivity.
Q68TD-G-H01/H02 provide thermocouple input with high accuracy for industrial temperature control.
Q68RD3-G handles 3-wire RTD inputs, ideal for process monitoring in harsh environments.
All modules feature channel-to-channel isolation for noise immunity and reliable data integrity.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi Q Series Analog Modules, including the Q68AD-G, Q68TD-G-H01, Q68TD-G-H02, and Q68RD3-G, represent the pinnacle of high-channel-count analog I/O solutions for demanding industrial automation. Designed for the Q Series rack-based system, these modules offer 8 isolated channels per unit, enabling simultaneous acquisition of multiple process variables. The Q68AD-G handles standard voltage and current signals (0-10V, 4-20mA, etc.), while the Q68TD-G-H01 and Q68TD-G-H02 are optimized for thermocouple temperature inputs with enhanced cold-junction compensation. The Q68RD3-G specializes in 3-wire RTD measurements, ensuring accurate resistance-to-temperature conversion. All modules feature galvanic isolation between channels to eliminate ground loops and improve signal fidelity in electrically noisy environments. These robust units are factory-new and shipped with full traceability, supporting rapid deployment in process control, energy management, and quality assurance systems.

Parameter	Q68AD-G	Q68TD-G-H01	Q68TD-G-H02	Q68RD3-G
Number of Channels	8	8	8	8
Input Type	Analog (Voltage / Current)	Thermocouple (TC)	Thermocouple (TC)	Resistance Temperature Detector (RTD)
Input Signal Range	0 to 10V, -10 to 10V, 0 to 20mA, 4 to 20mA	K, J, T, E, N, R, S, B, C	K, J, T, E, N, R, S, B, C	Pt100, Pt1000, Ni100, Cu10
Isolation Method	Channel-to-channel isolation	Channel-to-channel isolation	Channel-to-channel isolation	Channel-to-channel isolation
Resolution	16-bit	0.1°C typical	0.1°C typical	0.1°C typical
Accuracy	±0.1% of full scale	±0.3°C (K-type at 25°C)	±0.3°C (K-type at 25°C)	±0.1°C (Pt100 at 0°C)
Conversion Speed	10 ms per channel	100 ms per channel	100 ms per channel	50 ms per channel
Power Supply	5 VDC from backplane	5 VDC from backplane	5 VDC from backplane	5 VDC from backplane
Operating Temperature	0 to 55°C	0 to 55°C	0 to 55°C	0 to 55°C
Dimensions (mm)	34 x 98 x 90	34 x 98 x 90	34 x 98 x 90	34 x 98 x 90
Weight	Approx. 150 g	Approx. 150 g	Approx. 150 g	Approx. 150 g
