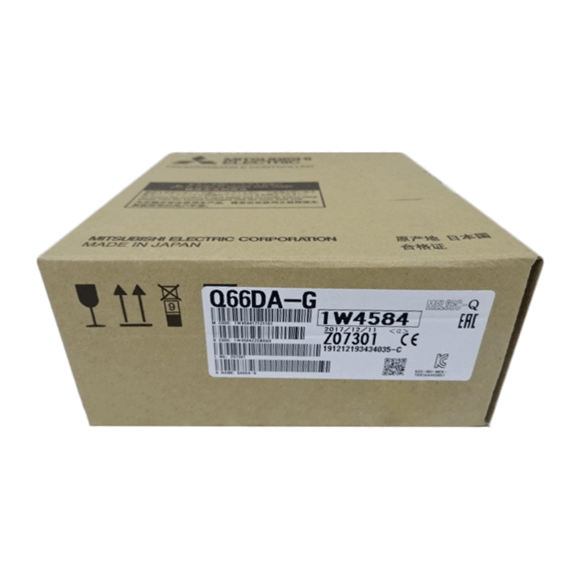

The Mitsubishi Q Series Analog Modules, specifically the Q66AD-DG and Q66DA-G, are engineered to meet the demanding requirements of modern industrial automation. The Q66AD-DG is a 6-channel analog input module with channel isolated design, supporting both voltage and current inputs with built-in signal conditioning for enhanced accuracy. Conversely, the Q66DA-G is a 6-channel analog output module, also channel isolated, providing precise voltage and current outputs for driving field devices. Together, they form a robust I/O pair for applications requiring multi-point measurement and control, such as in chemical processing, power generation, and manufacturing lines. These modules are designed for reliability, with fast conversion times and wide operating temperature ranges, ensuring consistent performance even under challenging conditions. Below is a detailed specification table based on the Mitsubishi Q Series analog module family, highlighting the positioning of the Q66AD-DG and Q66DA-G within the broader product lineup.
| Number of Channels |
Channel Isolated |
Voltage Input |
Current Input |
Signal Conditioning |
Load Cell |
CT Input |
Temperature Input |
RTD |
Voltage Output |
Current Output |
| 1 |
✓ |
— |
— |
— |
Q61LD |
— |
— |
— |
— |
— |
| 2 |
✓ |
— |
— |
Q62AD-DGH |
— |
— |
— |
— |
Q62DA-FG |
| 4 |
✓ |
Q64AD-GH |
— |
— |
— |
Q64TD Q64TDV-GH |
Q64RD-G |
— |
— |
| 4 |
— |
Q64AD Q64ADH Q64AD2DA |
— |
— |
— |
— |
Q64RD |
Q64DAN Q64DAH |
| 6 |
✓ |
— |
— |
Q66AD-DG |
— |
— |
— |
— |
Q66DA-G |
| 8 |
✓ |
Q68AD-G |
— |
— |
— |
Q68TD-G-H01 Q68TD-G-H02 |
Q68RD3-G |
— |
— |
| 8 |
— |
Q68ADV |
Q68ADI |
— |
— |
Q68CT |
— |
— |
Q68DAVN |
Q68DAIN |
