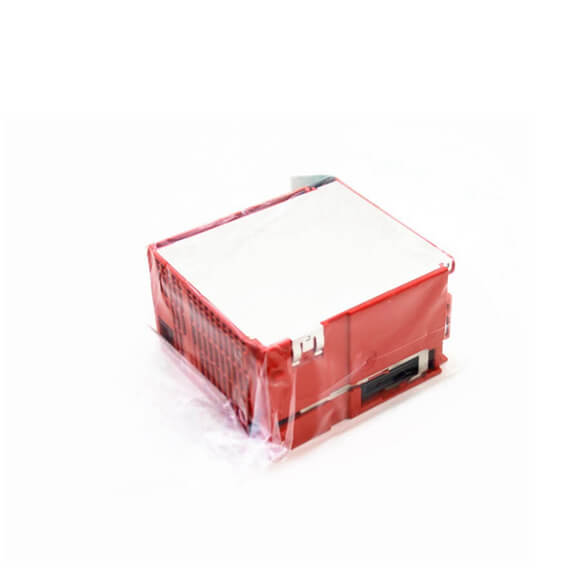

Mitsubishi Q Series Loop Control Module Q62HLC

Series#: Mitsubishi

Product Details

Model: MITSUBISHI Q Series Loop Control Module Q62HLC – Precision 2-channel process controller.
Multi-input support: voltage, current, thermocouple, and RTD for versatile industrial applications.
Compact design for seamless integration into Mitsubishi Q Series PLC systems.
High-speed loop control with advanced PID algorithms for stable process regulation.
Robust build ensures reliable performance in harsh automation environments.

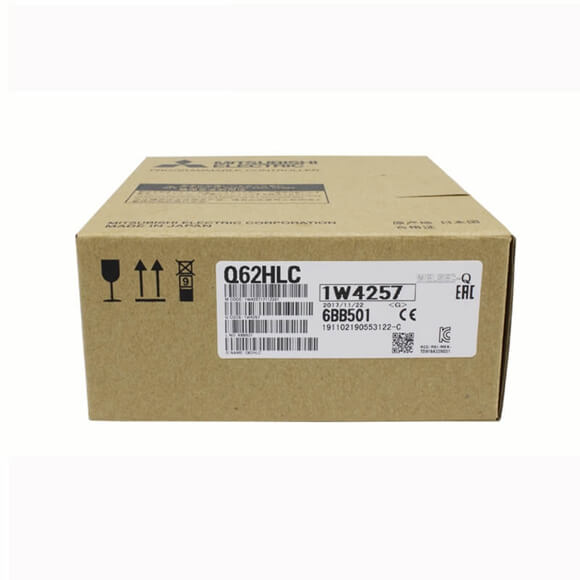

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The MITSUBISHI Q Series Loop Control Module Q62HLC is a high-performance, dual-channel controller engineered for precise process automation in demanding industrial settings. Designed to integrate seamlessly with the Q Series PLC platform, this module excels in managing temperature, pressure, flow, and other critical process variables. With support for multiple input types—including voltage, current, thermocouple, and RTD—the Q62HLC offers exceptional flexibility for a wide range of applications, from batch processing to continuous manufacturing. Its advanced PID control algorithms and fast sampling rates ensure stable, accurate loop regulation, minimizing overshoot and improving system efficiency. Built with industrial-grade components, the Q62HLC guarantees long-term reliability and easy maintenance, making it an ideal choice for engineers seeking robust loop control solutions.

Specification	Details
Model	Q62HLC
Number of Channels	2 (Input channels)
Supported Input Types	Voltage, Current, Thermocouple, RTD
Control Method	PID (Proportional-Integral-Derivative) with auto-tuning
Sampling Cycle	50 ms per channel (typical)
Input Range (Voltage)	-10 V to +10 V DC (standard)
Input Range (Current)	4 mA to 20 mA DC
Thermocouple Types	K, J, T, E, R, S, B (with cold junction compensation)
RTD Types	Pt100, Pt1000 (3-wire connection)
Output Types	Analog voltage/current or digital control via bus
Resolution	16-bit A/D conversion
Power Supply	5 V DC from Q Series backplane
Isolation	Transformer isolation between channels and system
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	5% to 95% RH (non-condensing)
Dimensions (W x H x D)	27.4 mm x 90 mm x 100 mm (approx.)
Weight	0.15 kg (approx.)
Communication Protocol	MELSEC Q Series backplane bus
Certifications	CE, UL (compliant with industrial standards)
