Mitsubishi Q Series Output Module QY71

Series#: Mitsubishi

Product Details

MITSUBISHI QY71 and QY81P are high-performance output modules designed for the Mitsubishi Q Series PLC system.
QY71: 32-point transistor output module (sink type, 5-12 V DC) for precise switching in low-voltage applications.

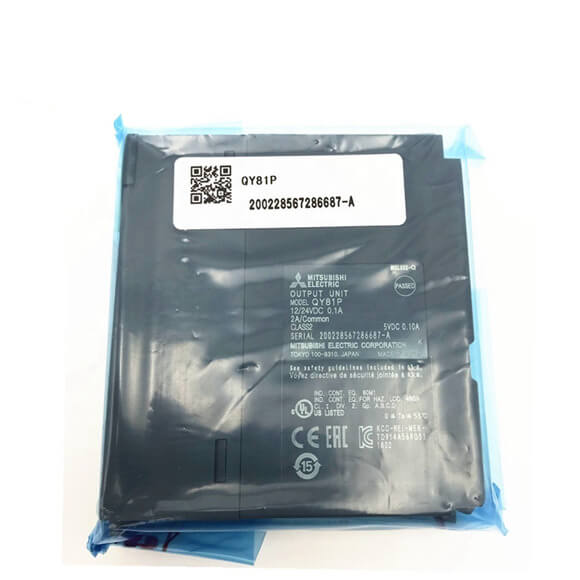

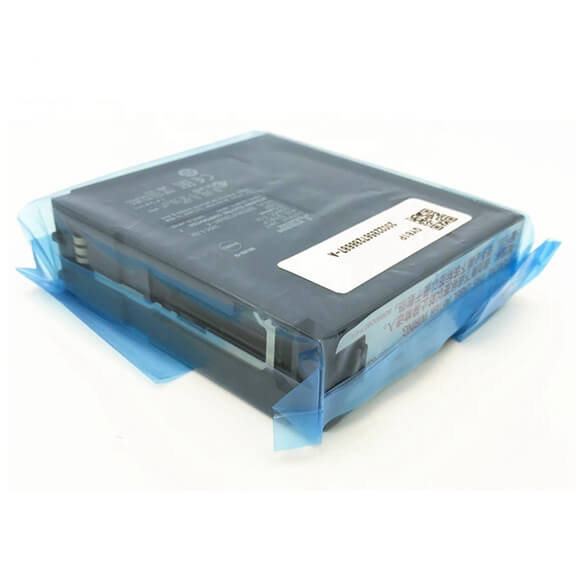

QY81P: 32-point transistor output module (source type, 12-24 V DC) for robust industrial control.
Both modules feature compact design, high-speed response, and seamless integration with Q Series backplanes.
Ideal for automation tasks requiring reliable, high-density output control in manufacturing and process industries.

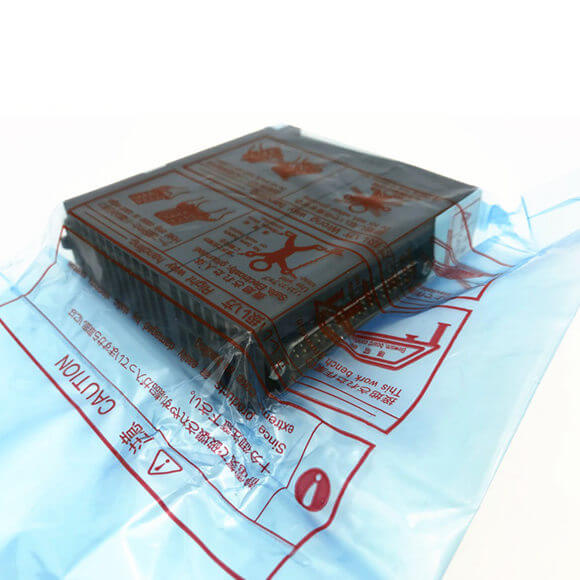

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi Q Series output modules, specifically the QY71 and QY81P, are engineered to deliver exceptional performance in demanding industrial automation environments. The QY71 is a 32-point sink-type transistor output module operating at 5-12 V DC, ideal for low-voltage logic control, while the QY81P offers 32-point source-type transistor output at 12-24 V DC, suitable for higher voltage actuator and relay driving. Both modules provide high-speed switching, minimal power consumption, and robust noise immunity, ensuring reliable operation in PLC-based systems. They are fully compatible with the Mitsubishi Q Series backplane and support easy configuration via GX Works software.

Specification	QY71 (Sink Type)	QY81P (Source Type)
Module Type	Transistor Output	Transistor Output
Number of Output Points	32 points	32 points
Output Type	Sink type (NPN)	Source type (PNP)
Rated Voltage	5-12 V DC	12-24 V DC
Operating Voltage Range	4.75-13.2 V DC	10.2-26.4 V DC
Maximum Load Current	0.1 A per point	0.5 A per point
Common Terminal Arrangement	32 points / 1 common (32-point shared)	32 points / 1 common (32-point shared)
Response Time (OFF to ON)	≤ 0.5 ms	≤ 0.5 ms
Response Time (ON to OFF)	≤ 1.0 ms	≤ 1.0 ms
Surge Protection	Built-in Zener diode	Built-in Zener diode
Isolation Method	Optocoupler (between output and internal circuit)	Optocoupler (between output and internal circuit)
Dielectric Strength	1500 V AC for 1 minute	1500 V AC for 1 minute
Power Supply (via backplane)	5 V DC, 90 mA (typical)	5 V DC, 120 mA (typical)
External Power Supply Required	5-12 V DC (load side)	12-24 V DC (load side)
Operating Temperature	0 to 55 °C	0 to 55 °C
Storage Temperature	-25 to 75 °C	-25 to 75 °C
Relative Humidity	5% to 95% (non-condensing)	5% to 95% (non-condensing)
Dimensions (W x H x D)	34.5 x 98 x 90 mm	34.5 x 98 x 90 mm
Weight	Approx. 0.15 kg	Approx. 0.16 kg
Compatible Backplane	Q3B, Q5B, Q6B, Q3SB, Q5SB, Q6SB	Q3B, Q5B, Q6B, Q3SB, Q5SB, Q6SB
LED Indicators	32 LEDs (one per point)	32 LEDs (one per point)
Protection Class	IP20	IP20
