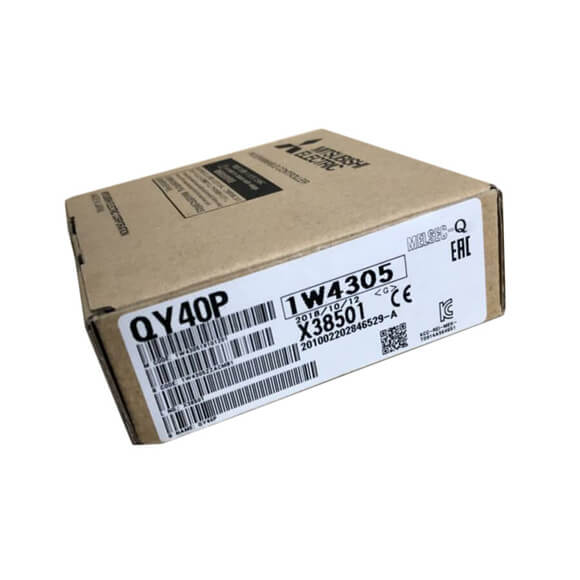

Mitsubishi Q Series Output Module QY40P

Series#: Mitsubishi

Product Details

Mitsubishi Q Series Output Module QY40P, QY40P-TS, and QY50 are high-performance 16-point transistor output modules designed for demanding industrial automation.

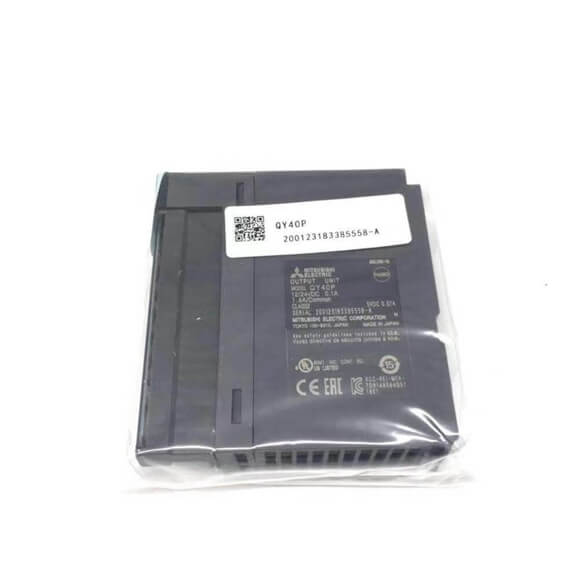

QY40P and QY40P-TS support sink-type transistor output with 12-24 V DC, ideal for standard DC loads.

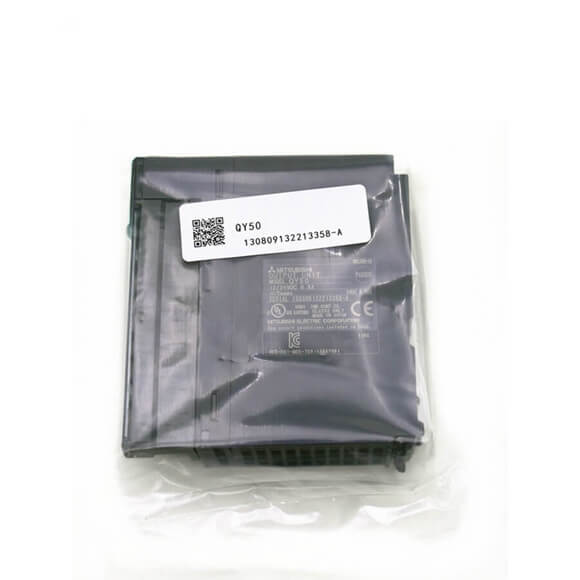

QY50 provides source-type transistor output with 12-24 V DC, offering flexibility for various load configurations.
All modules feature robust short-circuit protection and high-speed switching, minimizing downtime in production lines.
Seamless integration with Mitsubishi Q Series PLCs, simplifying system expansion and maintenance.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

Mitsubishi Q Series output modules, including the QY40P, QY40P-TS, and QY50, are engineered for precise and reliable control in industrial automation systems. These 16-point transistor output modules deliver high-speed switching and robust performance, making them ideal for applications requiring frequent on/off cycles, such as conveyor systems, packaging machinery, and assembly lines. The QY40P and QY40P-TS offer sink-type output for standard DC loads, while the QY50 provides source-type output for enhanced wiring flexibility. All modules feature built-in short-circuit protection and are fully compatible with the Q Series backplane, ensuring easy installation and long-term durability. Trust these modules to maintain consistent operation in harsh environments, backed by Mitsubishi’s reputation for quality and innovation.

Parameter	QY40P	QY40P-TS	QY50
Output Type	Transistor (Sink)	Transistor (Sink)	Transistor (Source)
Number of Points	16	16	16
Rated Voltage	12-24 V DC	12-24 V DC	12-24 V DC
Operating Voltage Range	10.2-26.4 V DC	10.2-26.4 V DC	10.2-26.4 V DC
Max. Load Current	0.5 A per point	0.5 A per point	0.5 A per point
Common Terminal Arrangement	8 points/common (2 commons)	8 points/common (2 commons)	8 points/common (2 commons)
Response Time (OFF to ON)	0.1 ms max.	0.1 ms max.	0.1 ms max.
Response Time (ON to OFF)	0.5 ms max.	0.5 ms max.	0.5 ms max.
Surge Suppressor	Zener diode	Zener diode	Zener diode
Short-Circuit Protection	Yes	Yes	Yes
Isolation Method	Optocoupler	Optocoupler	Optocoupler
Dielectric Withstand Voltage	1500 V AC for 1 min	1500 V AC for 1 min	1500 V AC for 1 min
Power Consumption (5 V DC)	0.19 A	0.19 A	0.19 A
Weight	0.13 kg	0.13 kg	0.13 kg
External Connection	40-pin connector	40-pin connector	40-pin connector
Operating Temperature	0 to 55°C	0 to 55°C	0 to 55°C
Storage Temperature	-25 to 75°C	-25 to 75°C	-25 to 75°C
Relative Humidity	5 to 95% RH (non-condensing)	5 to 95% RH (non-condensing)	5 to 95% RH (non-condensing)
Vibration Resistance	5-9.8 Hz, 3.5 mm; 9.8-150 Hz, 9.8 m/s²	5-9.8 Hz, 3.5 mm; 9.8-150 Hz, 9.8 m/s²	5-9.8 Hz, 3.5 mm; 9.8-150 Hz, 9.8 m/s²
Shock Resistance	147 m/s² (15 G), 11 ms, 3 times per axis	147 m/s² (15 G), 11 ms, 3 times per axis	147 m/s² (15 G), 11 ms, 3 times per axis
Compliance	CE, UL, cUL	CE, UL, cUL	CE, UL, cUL
