Mitsubishi MR-J4-200A Servo Amplifier

Series#: Mitsubishi

Product Details

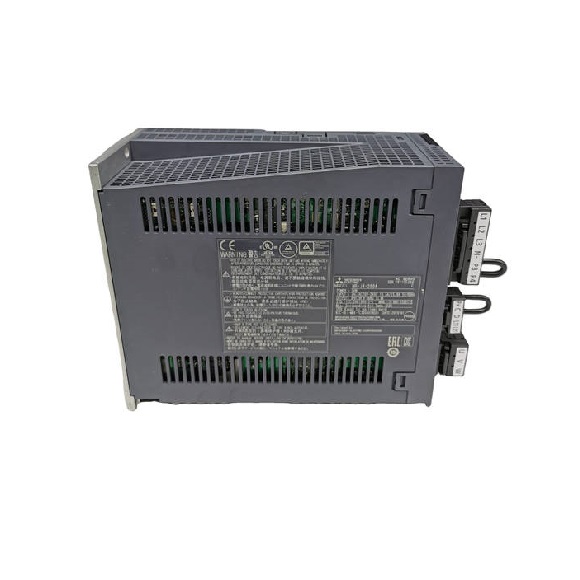

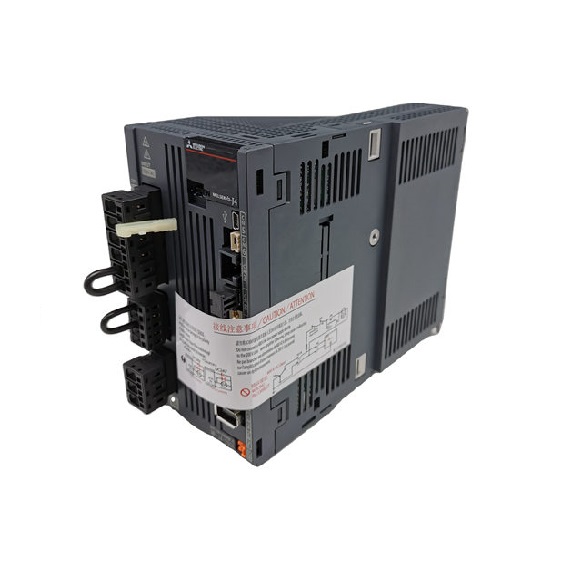

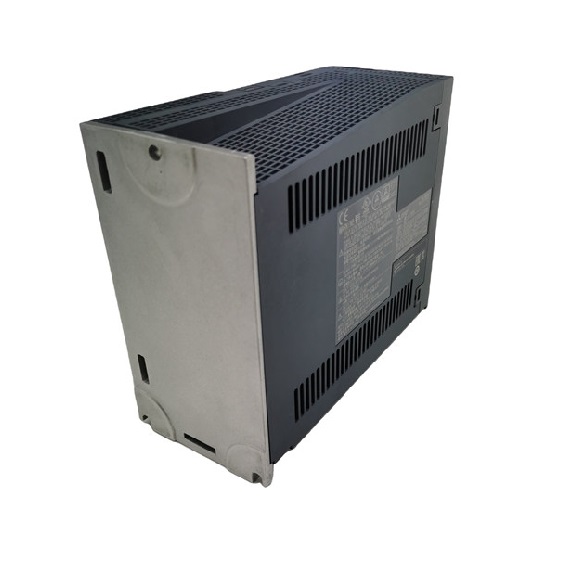

High-performance MITSUBISHI MELSERVO-J4 Series Servo Amplifier 2KW MR-J4-200A, designed for precise motion control in demanding industrial applications.
Supports sine-wave PWM control with current control method for smooth and accurate motor operation.
Built-in dynamic brake for enhanced safety and rapid deceleration in standard models.
Compatible with fully closed-loop control via Mitsubishi Electric high-speed serial communication for load-side encoder feedback.
Versatile communication options: USB for PC connection (MR Configurator2-compatible) and RS-422/RS-485 for multi-axis networking up to 32 axes.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The MITSUBISHI MELSERVO-J4 Series Servo Amplifier 2KW MR-J4-200A represents the pinnacle of industrial servo drive technology, engineered for precision, efficiency, and scalability. This model delivers robust 2 kW rated output with a rated current of 11 A at 3-phase 170 V AC input, making it ideal for high-torque applications in automation lines, robotics, and CNC machinery. Its advanced sine-wave PWM control ensures minimal torque ripple and superior speed regulation, while the built-in dynamic brake guarantees safe stopping in emergencies. The amplifier’s interface power supply operates at 24 V DC ±10% with a current capacity of 0.5 A (including CN8 connector signals), and it supports both USB and RS-422/RS-485 communication for flexible integration into existing systems. For higher power models (e.g., 11KA, 15KA, 22KA), an external dynamic brake option is available. Below are the comprehensive specifications for the MR-J4-200A and related models.

Parameter	MR-J4-10A	MR-J4-20A	MR-J4-60A	MR-J4-70A	MR-J4-100A	MR-J4-200A	MR-J4-350A	MR-J4-500A	MR-J4-700A	MR-J4-11KA	MR-J4-15KA	MR-J4-22KA
Rated Voltage	3-phase 170 V AC
Rated Current [A]	1.1	1.5	3.2	5.8	6	11	17	28	37	68	87	126
Voltage/Frequency (AC Input)	3-phase or 1-phase 200 V AC to 240 V AC, 50/60 Hz	3-phase or 1-phase 200 V AC to 240 V AC, 50/60 Hz (Note 14)	3-phase 200 V AC to 240 V AC, 50/60 Hz
Voltage/Frequency (DC Input, Note 17)	283 V DC to 340 V DC
Rated Current [A] (Note 11)	0.9	1.5	3.2 (Note 5)	3.8	5	10.5	16	21.7	28.9	46	64	95
Permissible Voltage Fluctuation (AC Input)	3-phase or 1-phase 170 V AC to 264 V AC	3-phase or 1-phase 170 V AC to 264 V AC (Note 14)	3-phase 170 V AC to 264 V AC
Permissible Voltage Fluctuation (DC Input, Note 17)	241 V DC to 374 V DC
Permissible Frequency Fluctuation	Within ±5%
Power Supply Capacity [kVA]	Refer to section 10.2
Inrush Current [A]	Refer to section 10.5
Interface Power Supply Voltage	24 V DC ± 10%
Current Capacity [A]	0.5 (including CN8 connector signals, Note 1)
Control Method	Sine-wave PWM control, current control method
Dynamic Brake	Built-in	External option (Notes 8, 12)
Fully Closed Loop Control	Compatible (Note 9)
Load-Side Encoder Interface (Note 10)	Mitsubishi Electric high-speed serial communication
Communication Function	USB: Connection to PC (MR Configurator2-compatible) RS-422/RS-485: 1:n communication (up to 32 axes, Notes 7, 13)
Encoder Output Pulses	Compatible (A/B/Z-phase pulse)
Analog Monitor	Two channels
